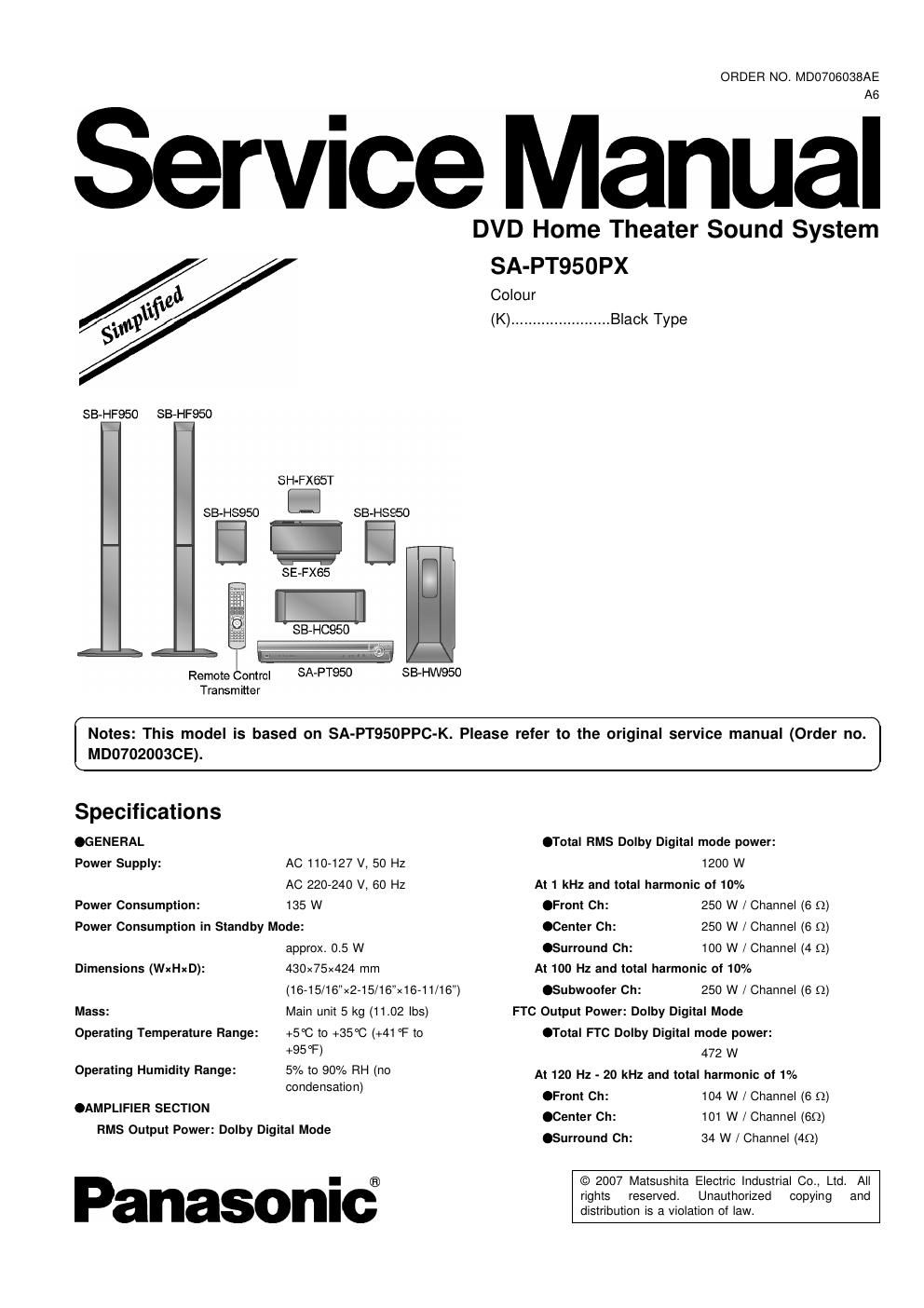

Page 1

ORDER NO. MD0706038AE

Service Manual

DVD Home Theater Sound System

SA-PT950PX
Colour
(K) ....................... Black Type

SB-HFQSO SB-HFQSO

SH-FXGST
sa-Hseso C] SB-Hssso
era-ass
' SB-HCQSO
%% y

SA-PTQSO SB-HWSSO

Remote Control
Transmitter

Notes: This model is based on SA-PT950PPC-K. Please refer to the original service manual (Order no.
MD0702003CE).

Specifications

.GENERAL
Power Supply: AC 110-127 V, 50 Hz
AC 220-240 V, 60 Hz
Power Consumption: 135 W

Power Consumption in Standby Mode:

approx. 0.5 W
430x75x424 mm

(16-15/16"x2-15/16"x16-11/16")

Dimensions (WxHxD):

Mass: Main unit 5 kg (11.02 lbs)

Operating Temperature Range: +5°C to +35°C (+41 °F to
+95°F)

Operating Humidity Range: 5% to 90% RH (no
condensation)

.AMPLIFIER SECTION
HMS Output Power: Dolby Digital Mode

Panasonic®

.Total RMS Dolby Digital mode power:

1200 W

At 1 kHz and total harmonic of 10%
.Front Ch: 250 W / Channel (6 9)
.Center Ch: 250 W / Channel (6 Q)

.Surround Ch: 100 W / Channel (4 D)
At 100 Hz and total harmonic at 10%
.Subwoofer Ch: 250 W / Channel (6 Q)
FTC Output Power: Dolby Digital Mode
OTotal FTC Dolby Digital mode power:
472 W
At 120 Hz - 20 kHz and total harmonic of 1%
.Front Ch: 104 W / Channel (6 9)
.Center Ch: 101 W / Channel (6(2)
.Surround Ch: 34 W / Channel (40)
