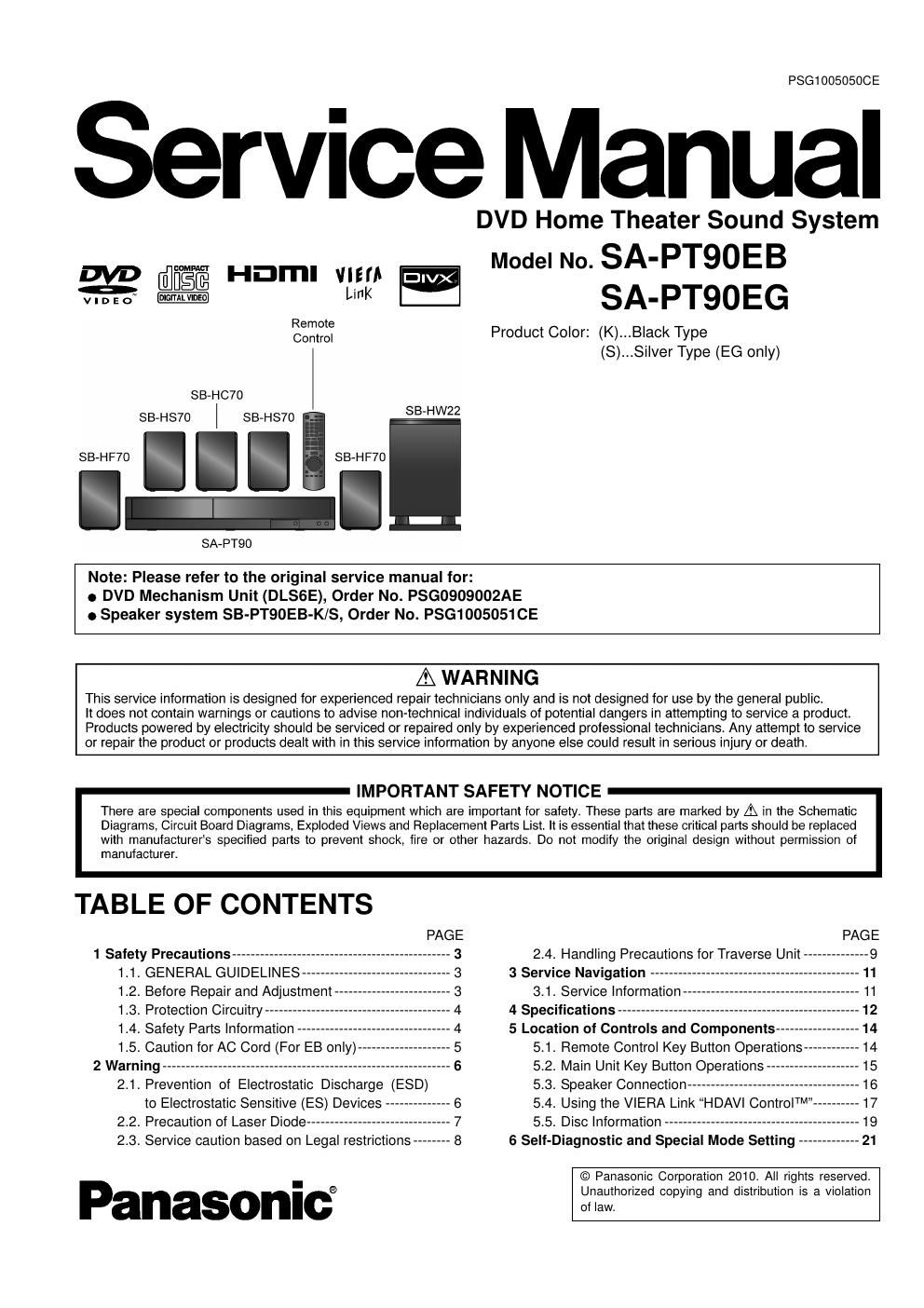

PSG10050500E

Service Manual

DVD Home Theater Sound System
Model No. SA-PT90EB

[flu-fig HDITII VIE

vmao" Link SA'PTQOEG
2:21;): Product Color: (K)...Black Type
(S)...Silver Type (EG only)
53- I-IIC70
SB- H870 SB- H870 SB'HWZZ
SB-HF70

was:

SA-PT90

Note: Please refer to the original service manual for:
0 DVD Mechanism Unit (DLSGE), Order No. PSG0909002AE
0 Speaker system SB-PT90EB-K/S, Order No. PSG1005051 CE

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of
manufacturer.

TABLE OF CONTENTS

1 Safety Precautions ----------------- 2.4. Handling Precautions for Traverse Unit -

1.1. GENERAL GUIDELINES----

1.2. Before Repair and Adjustment

1.3. Protection Circuitry ---------------

1.4. Safety Parts Information --------------

1.5. Caution for AC Cord (For EB only)-

2 Warning -------------------------------------------------------------- 6
2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatic Sensitive (ES) Devices

2.2. Precaution of Laser Diode -----------------

2.3. Service caution based on Legal restrictions »- 8

Panasonic

3 Service Navigation
3.1. Service Information
4 Specifications --------------
5 Location of Controls and Components -------
5.1. Remote Control Key Button Operations-
5.2. Main Unit Key Button Operations-
5.3. Speaker Connection ------------------
5.4. Using the VIERA Link HDAVI ControITM--
5.5. Disc Information -----------------------------
6 Self-Diagnostic and Special Mode Setting --

© Panasonic Corporation 2010. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
