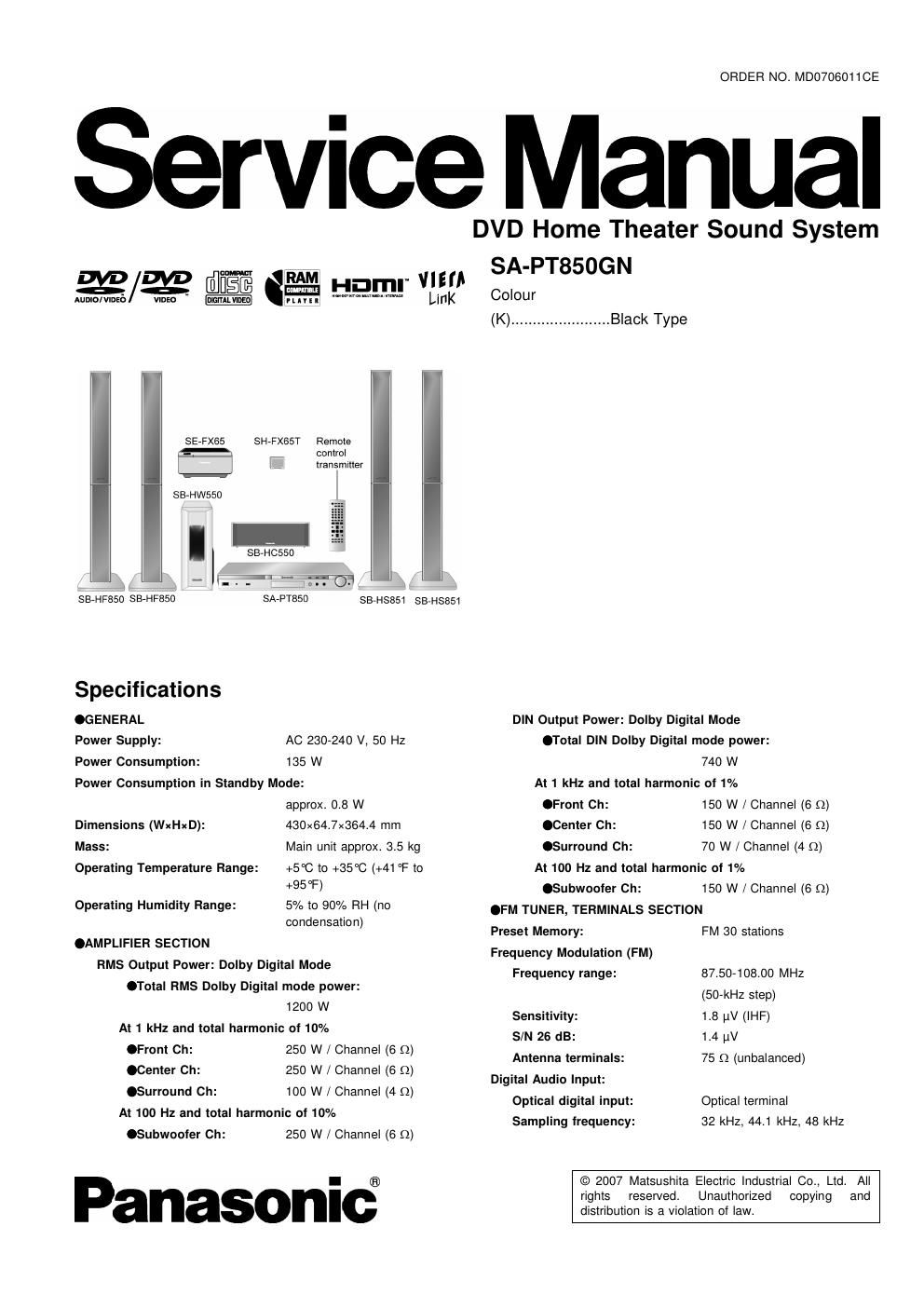

Page 1

ORDER NO. MDO7060110E

Service Manual

SErFXGS

SBVHWSSD

SB-HF850 SB-HF850

Specifications

.GENERAL
Power Supply:
Power Consumption:

ﬂiﬁﬁ em

SHVFX65T

IIF ' sancsso '

_:.am4c.-Gg

SA PTESO

m-......w-.W Link

Remote
control
Ira nsmiIIer

l::l

SBVH8851 SB-H5851

AC 230-240 V, 50 Hz
135 W

Power Consumption in Standby Mode:

Dimensions (WxHxD):
Mass:

Operating Temperature Range:

Operating Humidity Range:

.AMPLIFIER SECTION

approx. 0.8 W
480x64.7><364.4 mrn
Main unit approx. 3.5 kg
+5°C to +35°C (+41 °F to
+95°F)

5% to 90% RH (no
condensation)

RMS Output Power: Dolby Digital Mode
.Total RMS Dolby Digital mode power:

1200 W

At 1 kHz and total harmonic of 10%

.Front Ch:
OCenter Ch:
.Surround Ch:

250 W / Channel (6 Q)
250 W / Channel (6 (2)
100 W / Channel (4 0)

At 100 Hz and total harmonic of 10%

.Subwoofer Ch:

250 W / Channel (6 Q)

Panasonic®

HEII11I' VIE '9

DVD Home Theater Sound System

SA-PT85OGN
Colour
(K) ....................... Black Type

DIN Output Power: Dolby Digital Mode
.Total DIN Dolby Digital mode power:

740 W

At 1 kHz and total harmonic of 1%
.Front Ch: 150 W / Channel (6 9)
.Center Ch: 150 W / Channel (6 Q)

.Surround Ch: 70 W / Channel (4 (2)
At 100 Hz and total harmonic ol 1%

.Subwooter Ch: 150 W / Channel (6 9)
.FM TUNER, TERMINALS SECTION
Preset Memory: FM 30 stations
Frequency Modulation (FM)
8750-10800 MHZ
(SO-kHz step)
1.8 [N (IHF)
1.4 V
75 Q (unbalanced)

Frequency range:

Sensitivity:

S/N 26 dB:

Antenna terminals:
Digital Audio Input:

Optical digital input: Optical terminal

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
