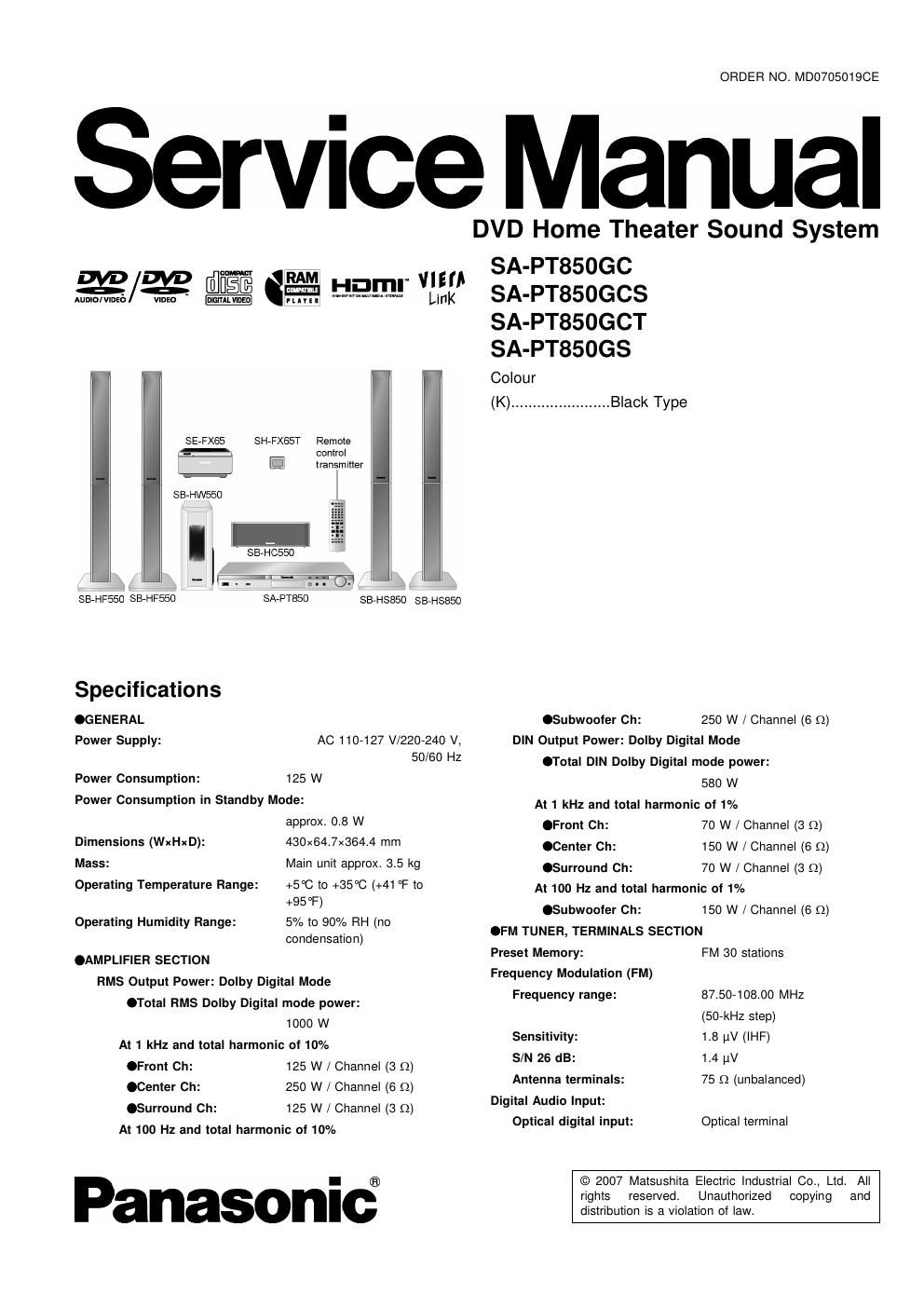

Page 1

ORDER NO. MD070501QCE

Service Manual

SE-FXGS SH»FX65T Remote
control
5 LE.) transmitter
- II-.?_ "innit? \

SB-HF550 SB-HFSSO

SA-PT350 SB-HSSSO SB-HSBSO
Specifications
.GENEFIAL
Power Supply: AC 110-127 V/220-24O V,
50/60 HZ
Power Consumption: 125 W
Power Consumption in Standby Mode:
approx. 0.8 W
Dimensions (WxHxD): 430x64.7x364.4 mrn
Mass: Main unit approx. 3.5 kg
Operating Temperature Range: +5°C to +35°C (+41 DF to
+95°F)
Operating Humidity Range: 5% to 90% RH (no
condensation)

.AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
.Total RMS Dolby Digital mode power:

1000 W

At 1 kHz and total harmonic of 10%
.Front Ch: 125 W / Channel (3 0)
.Center Ch: 250 W / Channel (6 Q)

OSurround Ch: 125 W / Channel (3 0)
At 100 Hz and total harmonic of 10%

Panasonic®

% em H!!! II!

SA-PT850GC
SA-PT850GCS
SA-PT850GCT
SA-PT850GS

Colour

(K) ....................... Black Type

OSubwooter Ch:

DVD Home Theater Sound System

250 W / Channel (6 9)

DIN Output Power: Dolby Digital Mode
.Total DIN Dolby Digital mode power:

580 W

At 1 kHz and total harmonic of 1%

.Front Ch:
.Center Ch:
.Surround Ch:

70 W / Channel (3 Q)
150 w / Channel (6 o)
70 W / Channel (3 (2)

At 100 Hz and total harmonic ol 1%

.Subwooter Ch:

150 W / Channel (6 9)

.FM TUNER, TERMINALS SECTION

Preset Memory:
Frequency Modulation (FM)
Frequency range:

Sensitivity:

S/N 26 dB:

Antenna terminals:
Digital Audio input:

Optical digital input:

FM 30 stations

8750-10800 MHZ
(SO-kHz step)

1.8 V (IHF)

1.4 [N

75 Q (unbalanced)

Optical terminal

Unauthorized

copying and
