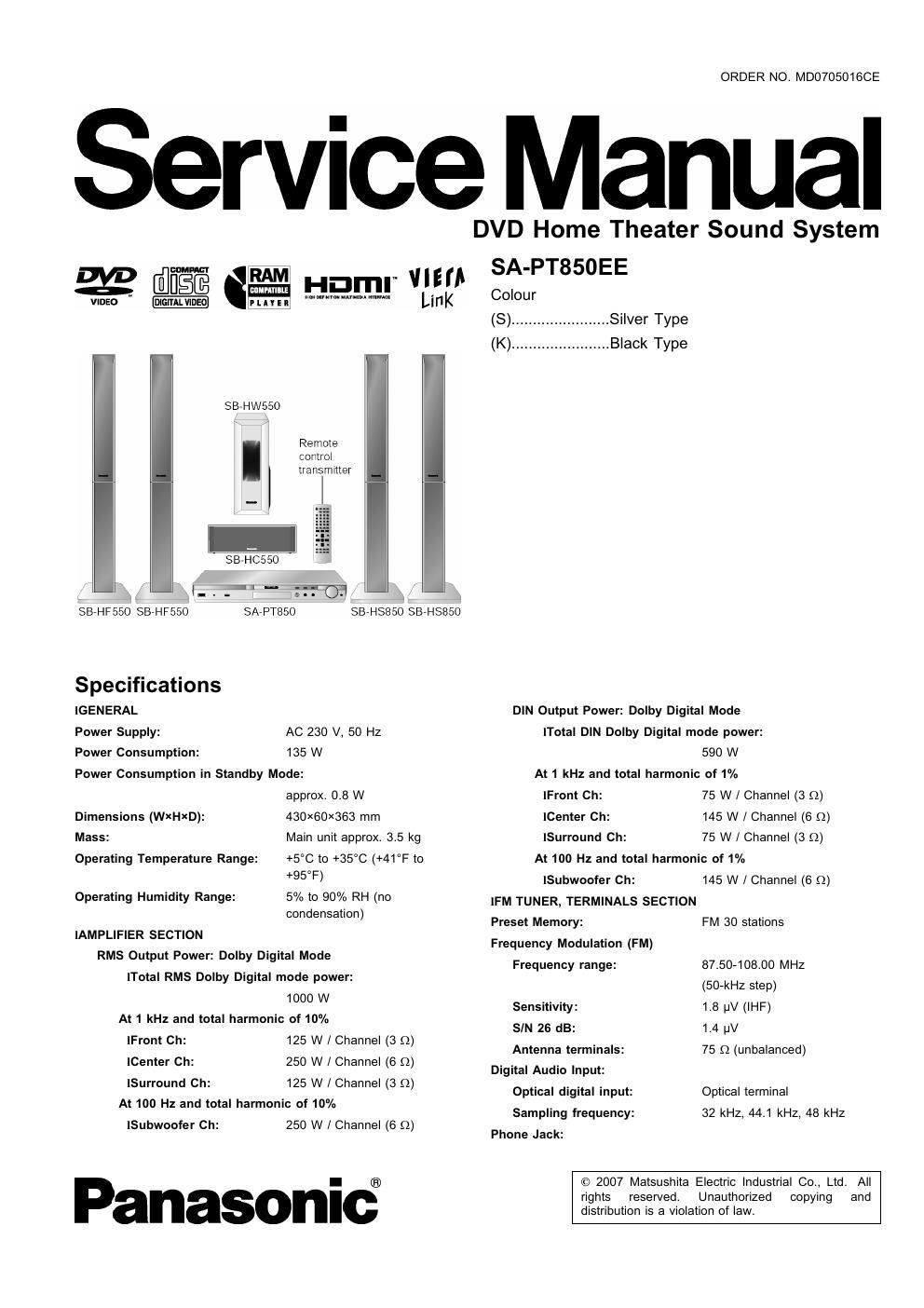

Page 1

ORDER NO. MD07050160E

Service Manual

% HITMSE

VIDEO mrAL {-VIJDEO

SB-HWSSO
Remote
control
I translmitter
SB-HC550

a - - 1 lo - .
SB HF550 SB HF550 SAVPTBSO SBrHSBSD SBVHSSEO

Specifications
[GENERAL

Power Supply: AC 230 V, 50 Hz
Power Consumption: 135 W

Power Consumption in Standby Mode:

approx. 0.8 W
Dimensions (WXHXD): 430> Mass: Main unit approx. 3.5 kg
Operating Temperature Range: +5°C to +35°C (+41°F to
+95°F)
Operating Humidity Range: 5% to 90% RH (no
condensation)

[AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
[Total RMS Dolby Digital mode power:

1000 W

At 1 kHz and total harmonic of 10%
[Front Ch: 125 W / Channel (3 9)
[Center Ch: 250 W / Channel (6 Q)

[Surround Ch: 125 W / Channel (3 9)
At 100 Hz and total harmonic of 10%

rVIiEl'l

SA-PT850EE

Colour

(8).

.Silver Type
(K) ....................... Black Type

DVD Home Theater Sound System

DIN Output Power: Dolby Digital Mode
[Total DIN Dolby Digital mode power:

590 W

At 1 kHz and total harmonic of 1%

[Front Ch:
[Center Ch:
[Surround Ch:

75 W / Channel (3 Q)
145 W [Channel (6 Q)
75 W / Channel (3 (2)

At 100 Hz and total harmonic of 1%

[Subwoofer Ch:

lFM TUNER, TERMINALS SECTION

Preset Memory:
Frequency Modulation (FM)
Frequency range:

Sensitivity:

SIN 26 dB:

Antenna terminals:
Digital Audio Input:

Optical digital input:

Sampling frequency:

145 w / Channel (5 9)

FM 30 stations

87.50»108.00 MHZ
(50-kHz step)

1.8 pv (IHF)

1.4 W

75 Q (unbalanced)

Optical terminal
32 kHz, 44.1 kHz, 48 kHz

[Subwoofer Ch:

250 w / Channel (6 (2)

Panasonic?

Phone Jack:
