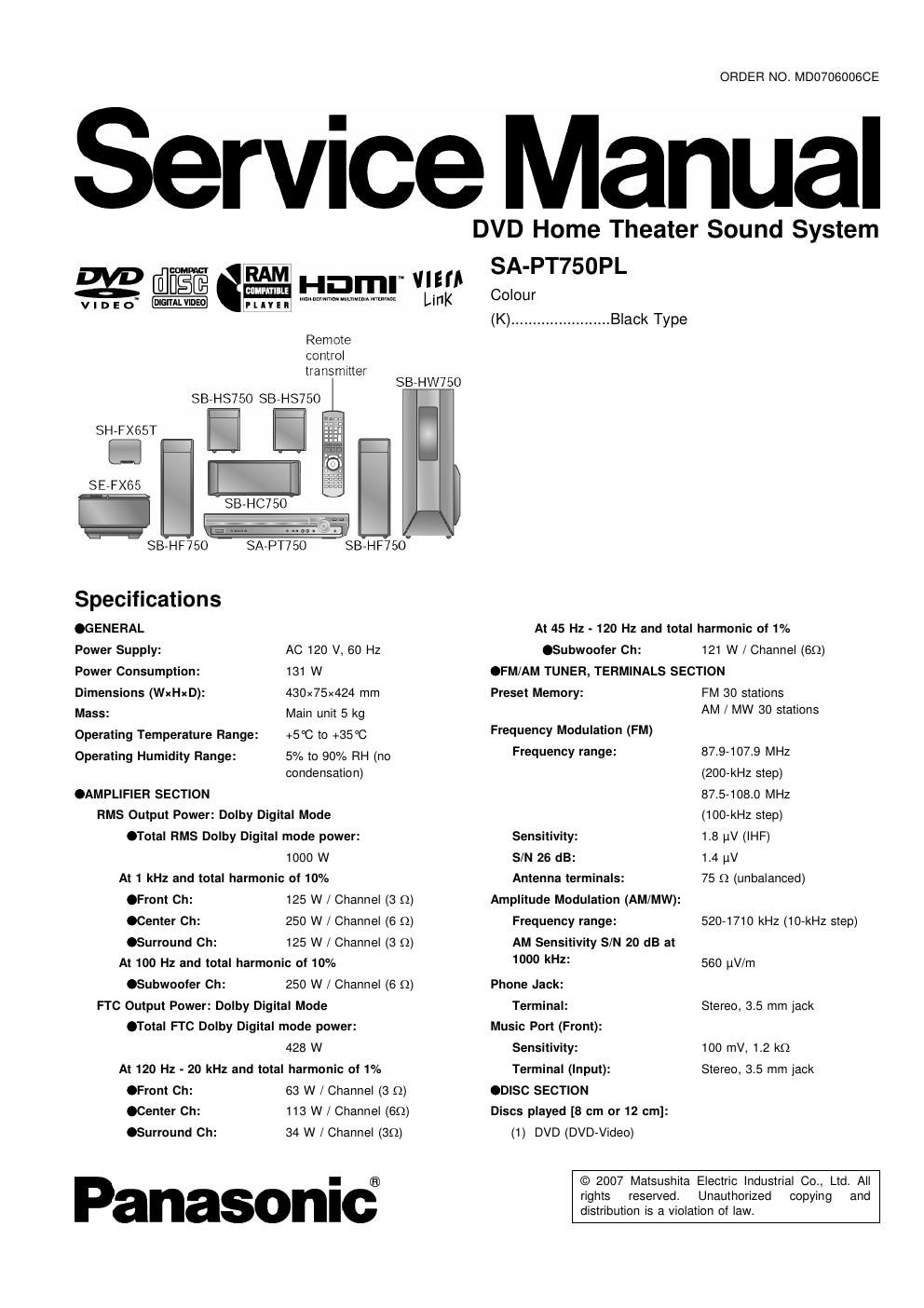

Panasonic sa pt 750 pl service manual

Page 2

SA-PT750F L

(2) DVD-RAM [DVD-VR, MP3 ('2, 5), JPEG (*4, 5)]
(3) DVD-R [DVD-Video, DVD-VR, MP3 (*2, 5), JPEG (*4, 5)]
(4) DVD-Ft DL (DVD-Video, DVD-VR)

(5) DVD-FtW [DVD-Video, DVD-VR, MP3 (*2, 5), JPEG (*4, 5)]
(s) +Ft, +RW (Video)

(7) +Ft DL(Video)

(8) CD, CD-R/RW [CD-DA, Video CD, SVCD (1), MP3 (2, 5).
WMA (3, 5), JPEG (4, 5), HighMAT Level 2 (Audio and
Image)]

1 Conforming to IE062107
2 MPEG-1 Layer 3, MPEG-2 Layer 3
3 Windows Media Audio Ver.9.0 L3
.Not compatible with Multiple Bit Rate (MBR)
4 Exit Ver 2.1 JPEG Baseline tiles

.Picture resolution: between 160 x 120 and 6144 X 4096
pixels (Sub sampling is 420:0, 422:0, 4:2:2 or 4:4:4).
Extremely long and narrow pictures may not be displayed.

5 The total combined maximum number of recognizable audio
and picture contents and groups: 4000 audio and picture
contents and 400 groups

Pick Up:
Wavelength:
.CD: 785 rim
.DVD: 662 rim
Laser power:
.CD: CLASS 1M
.DVD: CLASS 1

Audio Output (Disc):

Number of channels: 5.1 ch (FL, FR, 0, SL, SR,

SW)
.VIDEO SECTION
Video System: NTSC
Composite Video Output:

.Output level: 1 Vp-p (75 Q)

This model uses RCtU (Rotary tray) mechanism.

System SC-PT750PL
Main unit SA-PT750PL
Speaker system SB-PT750P
Digital system SH-PT750PL
Subwoofer SB-ersoP
Speaker system SB-PT750P

Front speakers SB-H F750P *2

Center speaker SB-HC750P"s

Surround speakers SB-HS750PM
Digital system SH-PT750PL
Digital transmitter SH-FXSSTPP
Digital receiver SE-FX65P "3

Refer to the respective original service manuals for 1, 2, 3,

4, 5, 6.

Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby
Labomtories.

"DTS" and "DTS Digital Surround" are registered trademarks of DTS.
Inc.

This product incorporates copyright protection technology that is
protected by method claims of certain US. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.

\Mndows Media and the Windmills logo are trademarks or registered
trademarks of Microsofl Corporation in the United States and/or other
countries.

This product is protected by certain intellectual property rights of
Microsoft Corporation and third parties. Use or distribution of such
technology outside ofthis product is prohibited without a license from

.Terminal: Pin jack (1 system)
Component Video Output (480p/480i):

.Y output level: 1 Vp-p (75 Q)

OPE output level: 0.7 Vp-p (75 (2)

OPR output level: 0.7 Vp-p (75 (2)

.Terminal:

HDMI AV Output:
.Terminal:

Pin jack (Y: green, PB: blue,
PH: red) (1 system)

Type A connector (19-pin)

Power Consumption in Standby Mode:

Note:

approx. 0.5 W

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum

analyzer.
Solder:

This model uses lead free solder (PbF).

Mechanism:

Microsoft or an authorized Microsofl subsidiary and third parties.

WMA is a compression format developed by Microsoft Corporation. It
achieves the same sound quality as MP3 with a file size that is smaller
than that of MP3.

HighMAT'I and the HighMAT logo are either
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.

HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.

HDAVi ControlrM is a trademark of Matsushita Electric industrlal Co. Ltd. I

I Built-in decoders
You can play discs with these symbols,

nu-

DIGITAL

dis"

Digital Surround
