Panasonic sa pt 650 pc service manual
This is the 155 pages manual for panasonic sa pt 650 pc service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

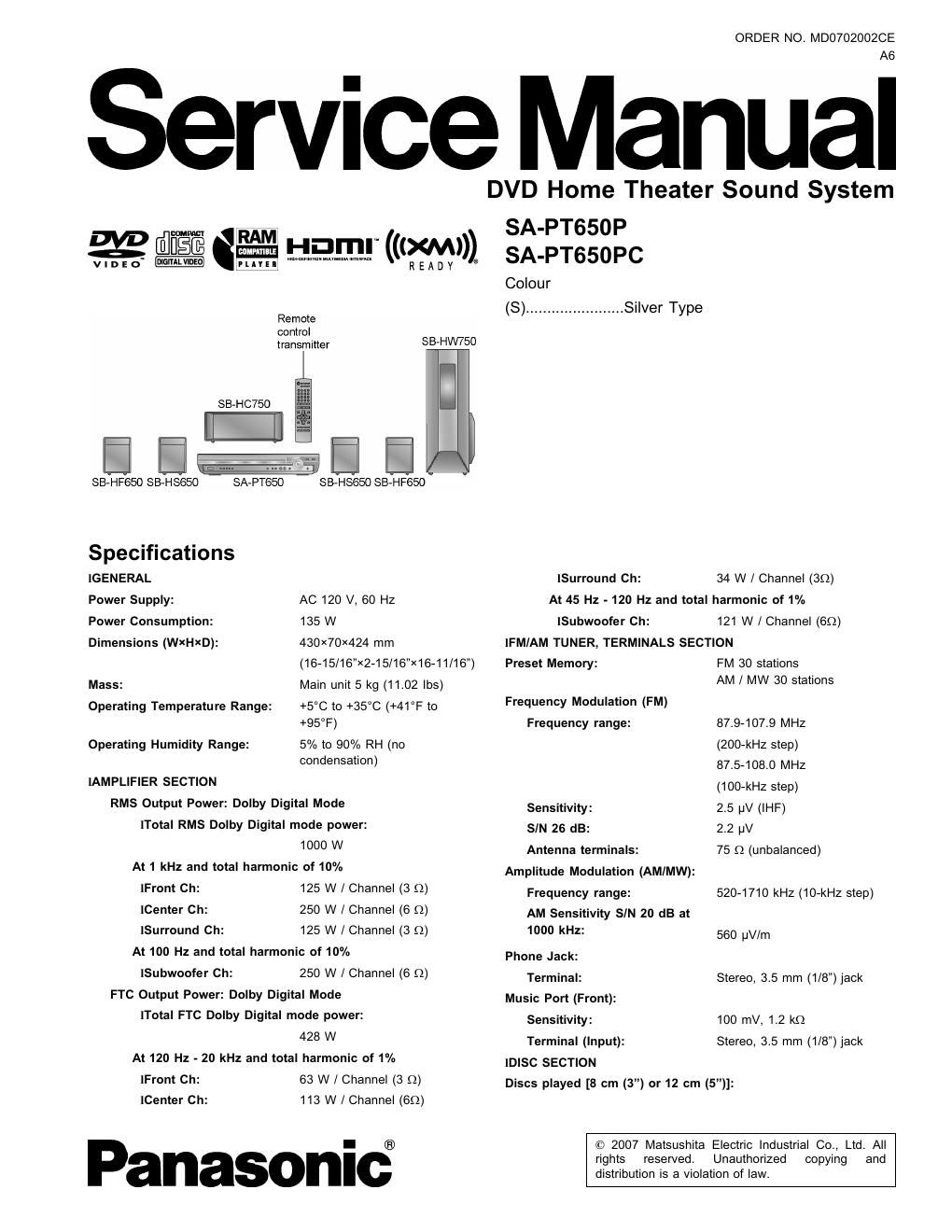

Extracted text from panasonic sa pt 650 pc service manual (Ocr-read)
Page 2
SA-PTSSOF I SA-PTSSOPC
(1) DVD (DVD-Video)
) DVD-RAM [DVD-VR, MP3 (*2, 5), JPEG ('4, 5)]
) DVD-R [DVD-Video, DVD-VR, MP3 (2, 5), JPEG (4, 5)]
) DVD-R DL (DVD-Video, DVD-VR)
5) DVD-RW [DVD-Video, DVD-VR, MP3 ('2, 5), JPEG ('4, 5)]
) +R, +RW (Video)
) +R DL (Video)
) CD, CD-R/RW [CD-DA, Video CD, SVCD (1), MP3 (2, 5),
WMA ('3, 5), JPEG (*4, 5), HighMAT Level 2 (Audio and
image)]
1 Conforming to |EC62107
2 MPEG-1 Layer 3, MPEG-2 Layer 3
3 Windows Media Audio Ver.9.0 L3
lNot compatible with Multiple Bit Rate (MBR)
'4 Exit Ver 2.1 JPEG Baseline files
[Picture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:010, 4:20, 4:222 or 414:4).
Extremely long and narrow pictures may not be displayed.
'5 The total combined maximum number of recognizable audio
and picture contents and groups: 4000 audio and picture
contents and 400 groups
Pick Up:
Wavelength:
1CD: 785 nm
DVD: 662 nm
Laser power:
lCD I DVD: (P)
ico I DVD: (PC)
Audio Output (Disc):
Number of channels:
CLASS IICLASS ||
CLASS 1M (CLASS 1
5.1 ch (FL, FR, C, SL, SR,
SW)
lVIDEO SECTION
Video System: NTSC
Composite Video Output:
lOutput level: 1 Vp-p (75 Q)
lTerminal: Pin jack (1 system)
Component Video Output (480p/480i):
1 Vp-p (75 o)
0.7 Vp-p (75 o)
0.7 Vp-p (75 (2)
Pin jack (Y: green, PB: blue,
PR: red) (1 system)
lY output level:
lPB output level:
lPR output level:
lTerminal:
HDMI AV Output:
lTerminal: Type A connector (19-pin),
CEC Ver.1.3a
Power Consumption in Standby Mode:
approx. 0.5 W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
Solder:
This model uses lead free solder (PbF).
Mechanism:
This model uses RC1U (Rotary tray) mechanism.
System SC-PT65DP SC-PTGSOPC
Main unit SA-PT650P SA-PTGSOPC
Speaker system SB-PT650P SB-PT650P
Speaker system SB-PTBSOP
Front speakers SBVHF65OPM
SB-Hc750P
SBVHSBSOPH
SB-Hw750P
Center speaker
Surround spea kers
Subwoofer
Refer to the respective original service manuals for 1, '2, 3,
4.
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby
Laboratories
"DTS' and "DTS Digital Surround are registered trademarks of DTS.
Inc.
Apparatus Claims of U.S. Patent Nos. 4,631,603. 4.577.216. and
4.819.098. licensed for limited viewing uses only.
This product incorporates copyright protection technology that is
protected by method claims of certain US. patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation. and is intended for home
and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
Windows Media and the Windows logo are trademarks or registered
trademarks of Microsoft Corporation in the United States andlor other
oountries.
This product is protected by certain imellectual property rights
of Microsoft Corporation and third parties. Use or distribution of
such technology outside of this product is prohibited without a
license from Microsoft or an authorized Microsoft subsidiary and
third parties.
WMA is a compression format developed by Microsoft Corporation. It
achieves the same sound quality as MP3 with a file size that Is smaller
than that of MP3.
HighMAl"M and the HighMAT logo are either
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks or HDMI Licensing LLC.
HDAVI (:ontrolmI is a trademark of Matsushita Electric Industrial 00.. Ltd.
The XM name and relamd logos are registered trademarks :1fo
Satellite Radio Inc. All rights reserved.
iPod is a trademark of Apple Computer. Inc.. registered in the US.
and other countries.
iii
d'ts
Digital Surround
I Built-in decoders
You can play discs With these symbols. mac
