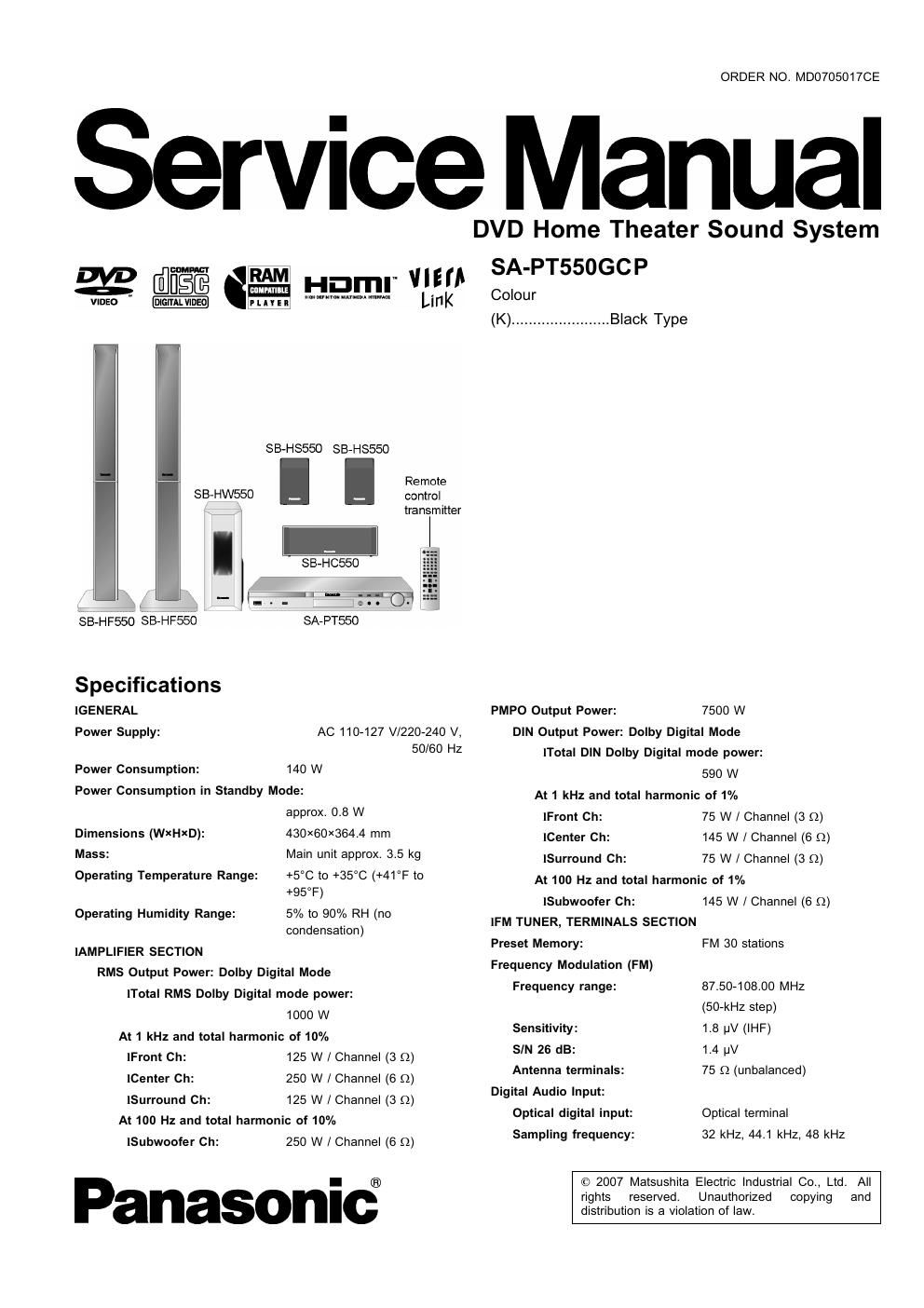

Page 1

ORDER NO. MD0705017CE

Service Manual

DVD Home Theater Sound System

% niimetg IVlm

vao ' [DIET ALVIDEO Nmo-Iirmmamim! Link
SB- H8550 SB- H8550
Remote
SB- HW550 control
transmitter
SB- H0550
l o . .

SB- HF550 SB- HF550 SA- (31-550

Specifications
[GENERAL

SA- PTSSOGCP

Colour

(K). .Black Type

PMPO Output Power:

7500 W

Power Supply:

Power Consumption:

AC 110-127 V/220-240 V,
50/60 HZ

140 W

Power Consumption in Standby Mode:

approx. 0.8 W
430><60><364.4 mm
Main unit approx. 3.5 kg

Dimensions (WXHXD):

Mass:

DIN Output Power: Dolby Digital Mode
[Total DIN Dolby Digital mode power:

590 W
At 1 kHz and total harmonic of 1%
[Front Ch: 75 W / Channel (3 9)
[Center Ch: 145 W / Channel (6 Q)

[Surround Ch:

75 W / Channel (3 9)

Operating Temperature Range:

+5°C to +35°C (+41°F to

+95°F)

5% to 90% RH (no
condensation)

Operating Humidity Range:

[AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
[Total RMS Dolby Digital mode power:

1000 W

At 1 kHz and total harmonic of 10%
[Front Ch: 125 W / Channel (3 9)
[Center Ch: 250 W / Channel (6 Q)

[Surround Ch: 125 W / Channel (3 (2)
At 100 Hz and total harmonic of 10%
[Subwoofer Ch: 250 W / Channel (6 9)

Panasonic?

At 100 Hz and total harmonic of 1%

[Subwoofer Ch: 145 W / Channel (6 (2)
[FM TUNER, TERMINALS SECTION
Preset Memory: FM 30 stations
Frequency Modulation (FM)
875040800 MHz
(50-kHz step)
1.8 W (IHF)
1.4 W
75 Q (unbalanced)

Frequency range:

Sensitivity:

SIN 26 dB:

Antenna terminals:
Digital Audio Input:

Optical digital input: Optical terminal

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

© 2007 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-PTSSOGCP

Phone Jack:

Terminal: Stereo, 3.5 mm jack
Mic Jack:

Sensitivity: 0.7 mV, 1.2 kg

Terminal: Mono, 6.3 mm jack (2 system)
Music Part (Front):

Sensitivity: 100 mV, 1.4 kn

Terminal: Stereo, 3.5 mm jack
USB Port:

USB standard: USB 2.0 full speed

Media file format support: MP3 (.mp3)

WMA ('.wma)

JPEG (.Jpg, .JPEG)
MPEG4 (.asf)

(FAT12) (FAT16) (FAT32)
Max. 500 mA

USB device file system:
USB Port power:
lDlSC SECTION
Discs played (8 cm or 12 cm):
(1) DVD [DVD-Video, DivX (*6, 7)]
(2) DVD-RAM [DVD-VR, MP3 ('2, 7), JPEG (4, '7), MPEG4
(5, '7), DivX (6, *7)]
(3) DVD»R [DVD-Video, DVD-VR, MP3 (*2, '7), JPEG (4, *7),
MPEG4 ('5, *7), DivX (6, '7)]
DVD-R DL [DVD-Video, DVD-VR]
DVD-RW [DVD-Video, DVD-VR, MP3 (2, 7), JPEG (4, 7),
MPEG4 (5, 7), DivX ('6, 7)]
+RI+RW [Video]
+R DL [Video]
CD, CD»R/RW [CD-DA, Video CD, SVCD (1), MP3 (2, 7),
WMA ('3, *7), JPEG ('4, '7), MPEG4 ('5, *7), DivX (6, '7),
HighMAT Level 2 (Audio and lmage)]
1 Conforming to IE062107
2 MPEG-1 Layer 3, MPEG-2 Layer 3
3 Windows Media Audio Ver.9.0 L3
lNot compatible with Multiple Bit Rate (MBR)
'4 Exif Ver 2.1 JPEG Baseline files

lPicture resolution: between 160 x 120 and 6144 x 4096
pixels (Sub sampling is 4:0:0, 4:220, 4:2:2, or 4:4:4).
Extremely long and narrow pictures may not be displayed.

@3

@SE

'5 MPEG4 data recorded with the Panasonic SD multi cameras
or DVD video recorders.

lConforming to SD VIDEO specifications (ASF standard)/
MPEG4 (Simple Profile) video system/G726 audio system.

'6 Plays all versions of DivX® video (including DivX®6) with
standard playback of DivX® media files. Certified to the DivX
Home Theater Profile.

7 The total combined maximum number of recognizable audio,
picture and video contents and groups: 4000 audio, picture
and video contents and 400 groups.

Pick Up:
Wavelength:
lCD: 785 nm
DVD: 662 nm
Laser power:
lCD: CLASS 1M

lDVD: CLASS 1

Audio Output (Disc):

Number of channels: 5.1 ch (FL, FR, C, SL, SR,

SW)
IVIDEO SECTION
Video System: NTSC
Composite Video Output:
[Output level: 1 Vp-p (75 Q)
Pin jack (1 system)
Component Video Output: (480pl480i)
1 Vp-p (75 o)
0.7 Vp-p (75 o)
0.7 Vp-p (75 9)
Pin jack (Y: green, PE: blue,
PR: red) (1 system)

lTerminal:

lY output level:
1P5 output level:
1PR output level:
lTerminal:

HDMI AV Output:
lTerminal: Type A connector (19 pin)
This unit supports HDAVI Control 2" function.
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:
This model uses lead free solder (PbF).
Mechanism:

This model uses DLZS (Single tray) mechanism.

System SC-PT550GCP
Main unit SA-PT550GCP
Speaker system SB-PT550E
Subwoofer SB-stsoE
Speaker system SB-PT550E
Front speakers SB-HF550EM

SB-Hc550E
SB-Hs550E

Center speaker

Surround speakers

Refer to their respective original service manuals for 1, 2,
3, 4.
