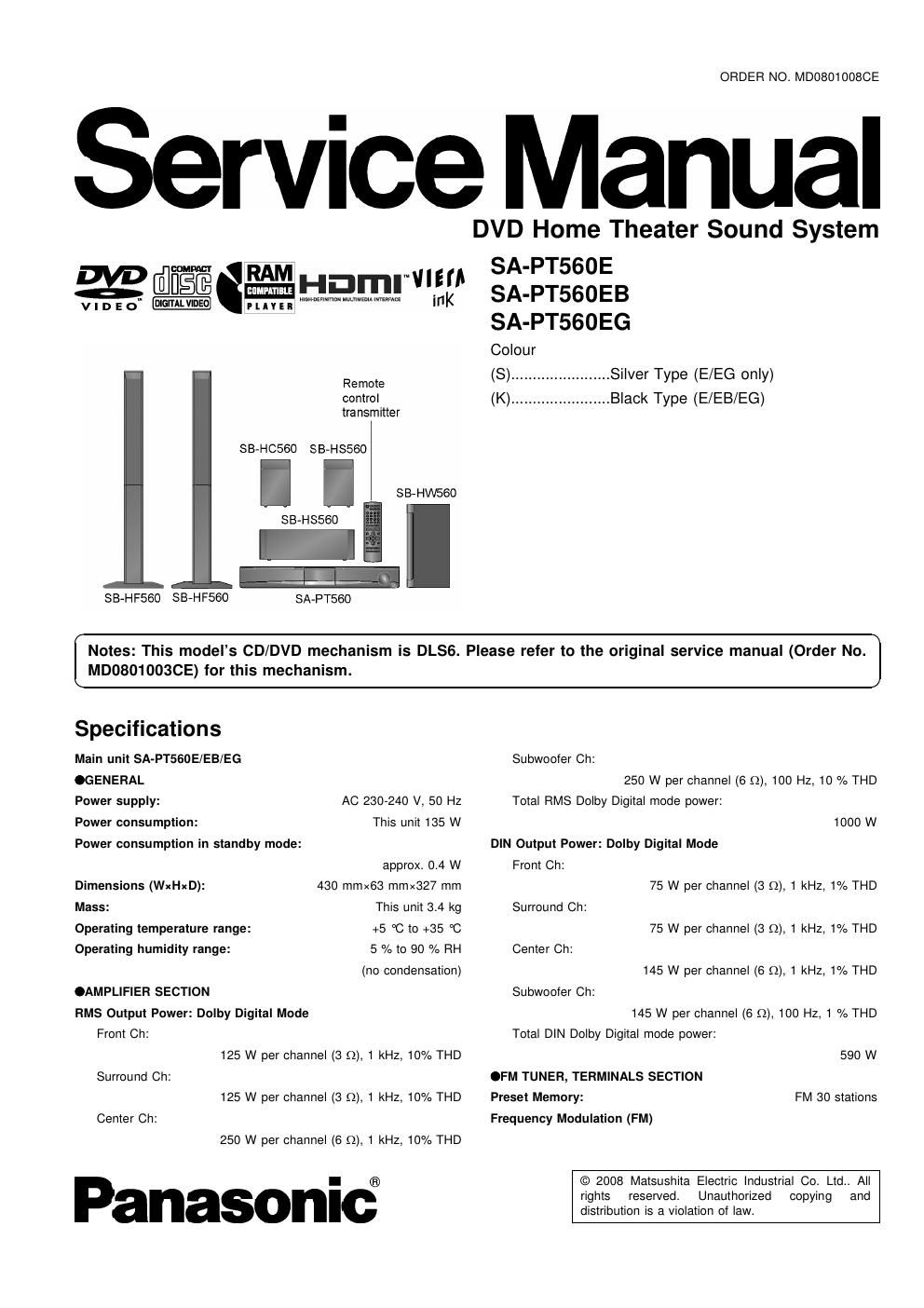

Page 1

ORDER NO. MD0801OOBCE

Service Manual

DVD Home Theater Sound System

mummmw «mm mum

FLIVEI

Remote
control
transmitter
SB-HC560 S B-HSSSO
SB-HWSBO
I
SB-HSSSO

SB-HF560 SB-HF560

SA-P T560

RAM Hamrmgl
II1

SA-PT560E
SA-PT560EB
SA-PT560EG

Colour
(8) ....................... Silver Type (E/EG only)
(K) ....................... Black Type (E/EB/EG)

Notes: This models CD/DVD mechanism is DLSS. Please refer to the original service manual (Order No.

MD0801003CE) for this mechanism.

Specifications
Main unit SA-PTSGOE/EB/EG
.GENERAL
Power supply: AC 230-240 V, 50 Hz
Power consumption: This unit 135 W
Power consumption in standby mode:
approx. 0.4 W
430 mmx63 mmx327 mm
This unit 3.4 kg
+5 C to +35 C
5 % to 90 % RH

(no condensation)

Dimensions (WxHxD):

Mass:

Operating temperature range:
Operating humidity range:

.AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
Front Ch:
125 W per channel (3 Q), 1 kHz, 10% THD
Surround Ch:
125 W per channel (3 Q), 1 kHz, 10% THD
Center Ch:
250 W per channel (6 Q), 1 kHz, 10% THD

Panasonic®

Subwooier Ch:
250 W per channel (6 Q), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power:
1000 W
DIN Output Power: Dolby Digital Mode
Front Ch:
75 W per channel (3 Q), 1 kHz, 1% THD
Surround Ch:
75 W per channel (3 Q), 1 kHz, 1% THD
Center Ch:
145 W per channel (6 Q), 1 kHz, 1% THD
Subwooler Ch:
145 W per channel (6 Q), 100 Hz, 1 % THD
Total DIN Dolby Digital mode power:
590 W
.FM TUNER, TERMINALS SECTION
Preset Memory: FM 30 stations
Frequency Modulation (FM)
