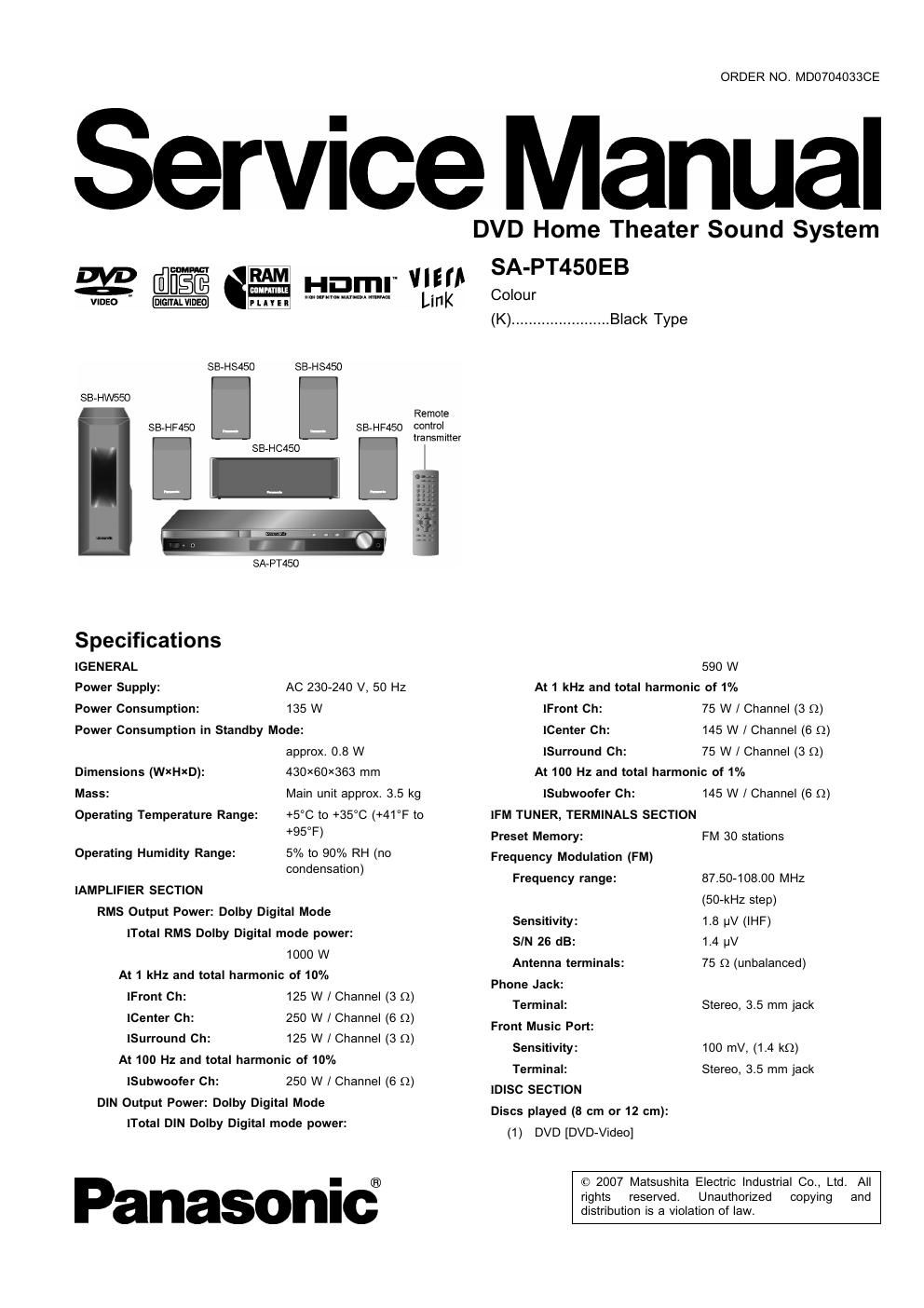

Page 1

ORDER NO. MD07040330E

Service Manual

ﬁﬁiﬁé

vrnso ' mm VIDEO

SB- H8450

SB-HF450 D

SB»HWSSO

SB H8450

Remote
SB HF450 control
transmitter

_B- H0450

a ahhaiii o

SA-PT450

Specifications
lGENERAL

Power Supply:

Power Consumption:

AC 230-240 V, 50 Hz
135 W

DVD Home Theater Sound System
rVIEII SA- PT450EB

Power Consumption in Standby Mode:

approx. 0.8 W
430KBOxs63 mm

Main unit approx. 3.5 kg

Dimensions (WXHXD):

Mass:

Colour
(K). .Black Type
590 W
At 1 kHz and total harmonic of 1%
[Front Ch: 75 W / Channel (3 Q)
lCenter Ch: 145 W [Channel (6 Q)

[Surround Ch:

75 W / Channel (3 (2)

At 100 Hz and total harmonic of 1%

lSubwoofer Ch:

145 w [Channel (6 (2)

Operating Temperature Range:

Operating Humidity Range:

lAMPLIFIER SECTION

+5°C to +35°C (+41°F to
+95°F)

5% to 90% RH (no
condensation)

RMS Output Power: Dolby Digital Mode
lTotaI RMS Dolby Digital mode power:

1000 W

At 1 kHz and total harmonic of 10%

lFront Ch:
[Center Ch:
lSurround Ch:

125 w [Channel (3 o)
250 w [Channel (6 o)
125 w [Channel (3 a)

At 100 Hz and total harmonic of 10%

lSubwoofer Ch:

250 w [Channel (5 9)

DIN Output Power: Dolby Digital Mode
lTotal DIN Dolby Digital mode power:

Panasonic?

IFM TUNER, TERMINALS SECTION
Preset Memory: FM 30 stations
Frequency Modulation (FM)

875040800 MHz

(SO-kHz step)

Frequency range:

Sensitivity: 1.8 pV (IHF)

SIN 26 dB: 1.4 pV

Antenna terminals: 75 £2 (unbalanced)
Phone Jack:

Terminal: Stereo, 3.5 mm jack

Front Music Port:

Sensitivity: 100 mv, (1.4 kg)
Terminal: Stereo, 3.5 mm jack
IDISC SECTION

Discs played (8 cm or 12 cm):
(1) DVD [DVD-Video]
