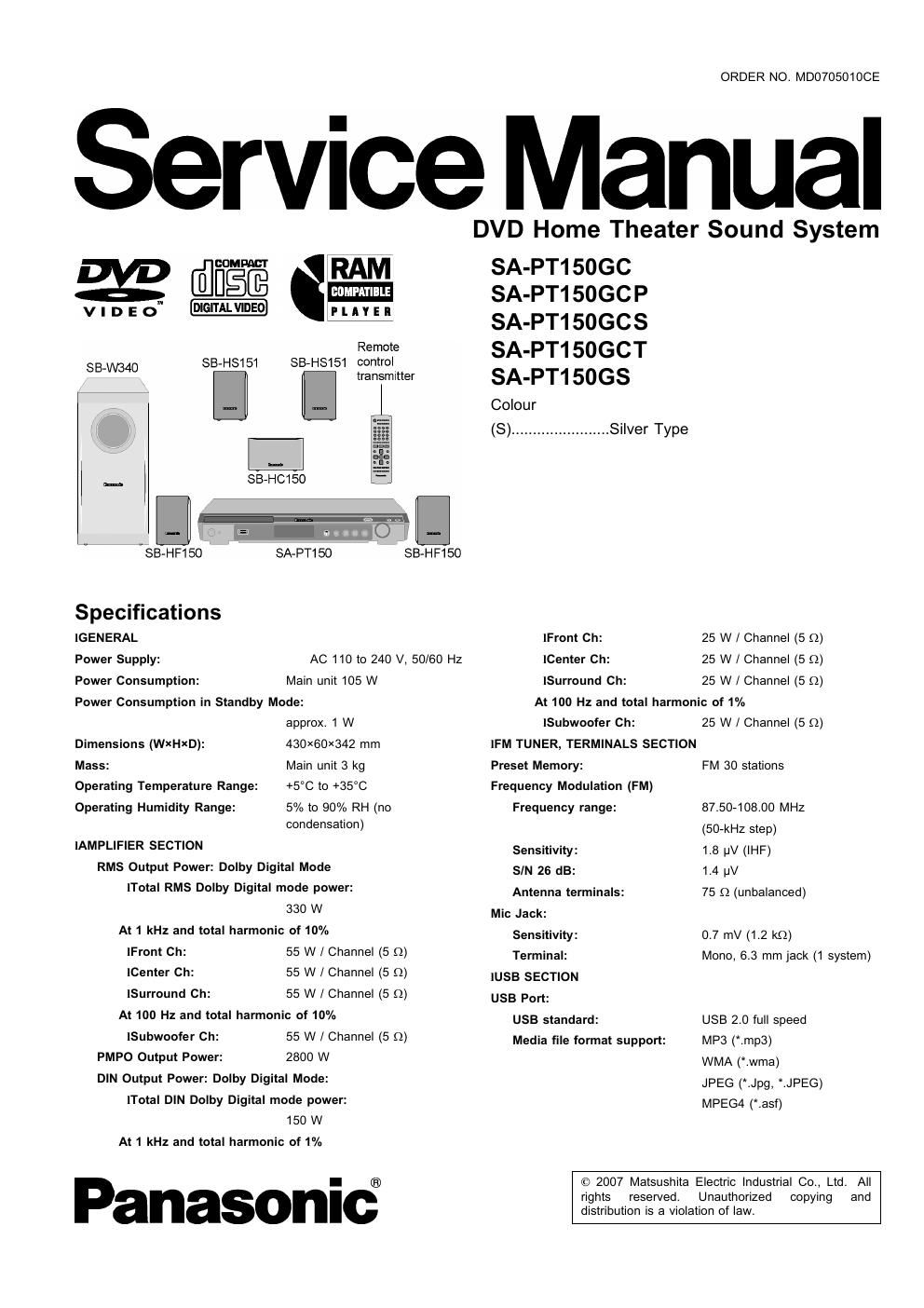

Page 1

ORDER NO. MD070501OCE

Service Manual

BOMPATIBLE
VIDEO arm-VIDEO lruvn
Remote
SB-W34O SB-HS151 SB-HS151 control
transmitter
SB-HC150

SB-HF150

SA-PT150

SB-HF150

Specifications
[GENERAL
Power Supply: AC 110 to 240 V, 50/60 Hz
Main unit 105 W

Power Consumption in Standby Mode:

Power Consumption:

approx. 1 W
Dimensions (WXHXD): 430><60><342 mm
Mass: Main unit 3 kg

+5°C to +35°C

5% [o 90% RH (no
condensation)

Operating Temperature Range:
Operating Humidity Range:

[AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
[Total RMS Dolby Digital mode power:

330 W
At 1 kHz and total harmonic of 10%
[Front Ch: 55 W / Channel (5 Q)
[Center Ch: 55 W / Channel (5 Q)

[Surround Ch: 55 W / Channel (5 (2)
At 100 Hz and total harmonic of 10%
[Subwoofer Ch: 55 W / Channel (5 Q)
PMPO Output Power: 2800 W
DIN Output Power: Dolby Digital Mode:
[Total DIN Dolby Digital mode power:
150 W
At 1 kHz and total harmonic of 1%

Panasonic®

DVD Home Theater Sound System

SA-PT15OGC
SA-PT15OGC P
SA-PT150GCS
SA-PT15OGCT
SA-PT15OGS

Colour
(8) ....................... Silver Type

[Front Ch: 25 W / Channel (5 (2)
[Center Ch: 25 W / Channel (5 Q)
[Surround Ch: 25 W / Channel (5 (2)

At 100 Hz and total harmonic of 1%
[Subwooter Ch: 25 W / Channel (5 (2)

[FM TUNER, TERMINALS SECTION

Preset Memory: FM 30 stations

Frequency Modulation (FM)

87.50»108.00 MHZ

(50-kHz step)

Frequency range:

Sensitivity: 1.8 W (IHF)
S/N 26 dB: 1.4 pV
Antenna terminals: 75 Q (unbalanced)
Mic Jack:
Sensitivity: 0.7 mV (1.2 kg)
Terminal: Mono, 6.3 mm jack (1 system)
[USB SECTION
USB Port:
USB standard: USB 2.0 full speed
Media file format support: MP3 (.mp3)
WMA (.wma)

JPEG (.Jpg, .JPEG)
MPEG4 (.asf)
