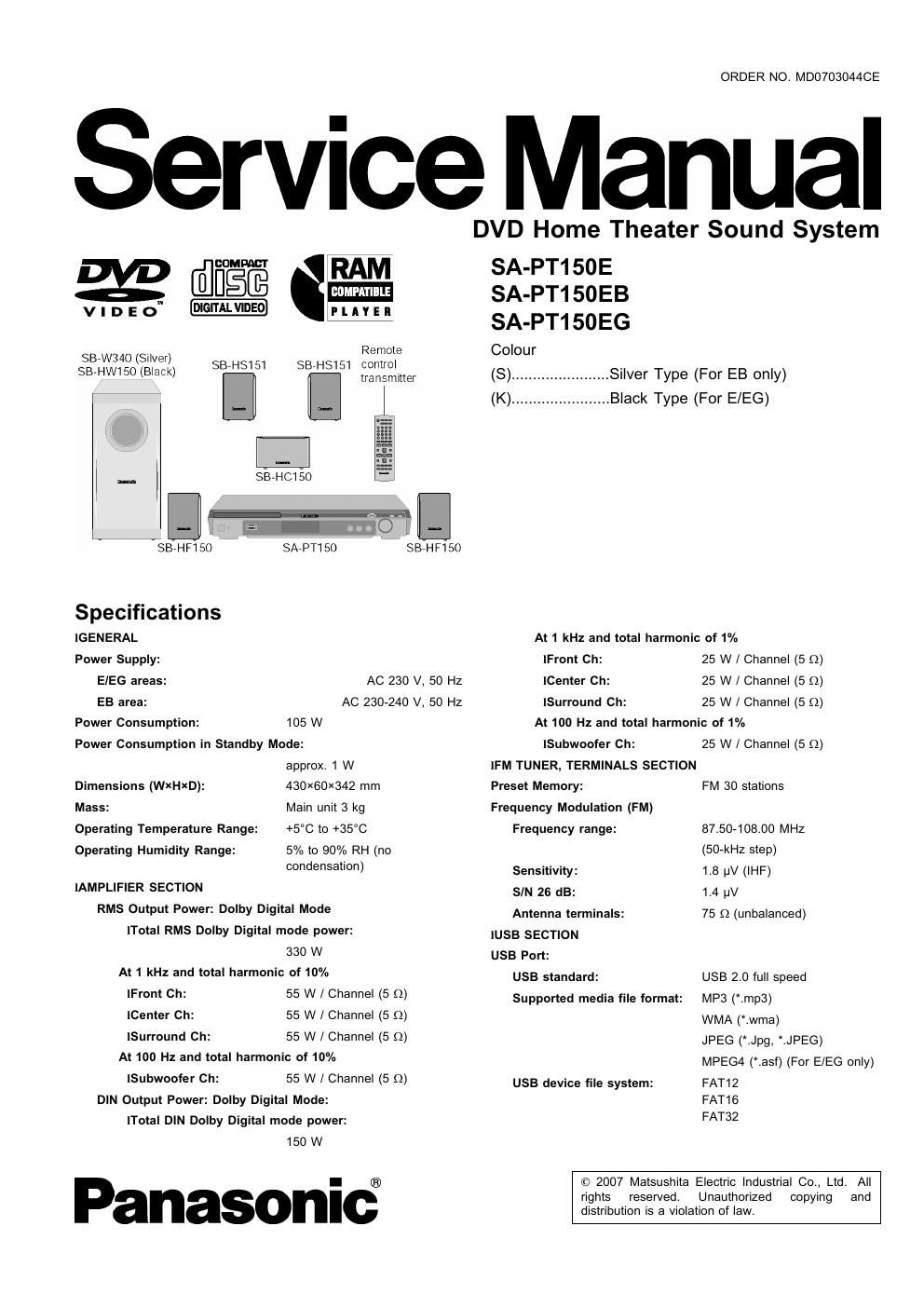

Page 1

ORDER NO. MD0703044CE

Service Manual

[ﬂ_l]§@

naMPmBLE
..
VIDEO _G"N-V'DED lr nu
. Remote
SSBémfgoﬂéecﬂ) SB-H8151 33445151 Control
transmizter
l V _
l __ 53440150

9-, _-

SB»HF15() SA-PT150 SB»HF150
Specifications
[GENERAL
Power Supply:
E/EG areas: AC 230 V, 50 Hz
EB area: AC 230-240 V, 50 HZ

Power Consumption:

105W

DVD Home Theater Sound System

SA-PT150E
SA-PT150EB
SA-PT150EG

Colour
(S) ....................... Silver Type (For EB only)
(K). .Black Type (For E/EG)

At 1 kHz and total harmonic of 1%

[Front Ch:
[Center Ch:
[Surround Ch:

25 W / Channel (5 Q)
25 W / Channel (5 Q)
25 W / Channel (5 (2)

At 100 Hz and total harmonic of 1%

Power Consumption in Standby Mode:

approx. 1 W
Dimensions (WXHXD): 430> Mass: Main unit 3 kg

+5°C to +35°C

5% [o 90% RH (no
condensation)

Operating Temperature Range:
Operating Humidity Range:

[AMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
[Total RMS Dolby Digital mode power:

330 W
At 1 kHz and total harmonic of 10%
[Front Ch: 55 W / Channel (5 (2)
[Center Ch: 55 W / Channel (5 Q)

[Surround Ch: 55 W / Channel (5 (2)
At 100 Hz and total harmonic of 10%
[Subwoofer Ch: 55 W / Channel (5 (2)
DIN Output Power: Dolby Digital Mode:
[Total DIN Dolby Digital mode power:
150 W

Panasonic®

[Subwooter Ch:

lFM TUNER, TERMINALS SECTION

Preset Memory:
Frequency Modulation (FM)
Frequency range:

Sensitivity:
SIN 26 dB:
Antenna terminals:
[USB SECTION
USB Port:
USB standard:

Supported media file format:

USB device file system:

25 W / Channel (5 9)

FM 30 stations

875040800 MHZ
(50-kHz step)

1.8 W (IHF)

1.4 W

75 Q (unbalanced)

USB 2.0 full speed

MP3 (.mp3)

WMA (.wma)

JPEG (.Jpg, .JPEG)

MPEG4 (.asf) (For E/EG only)

FAT1 2
FAT1 6
FAT32
