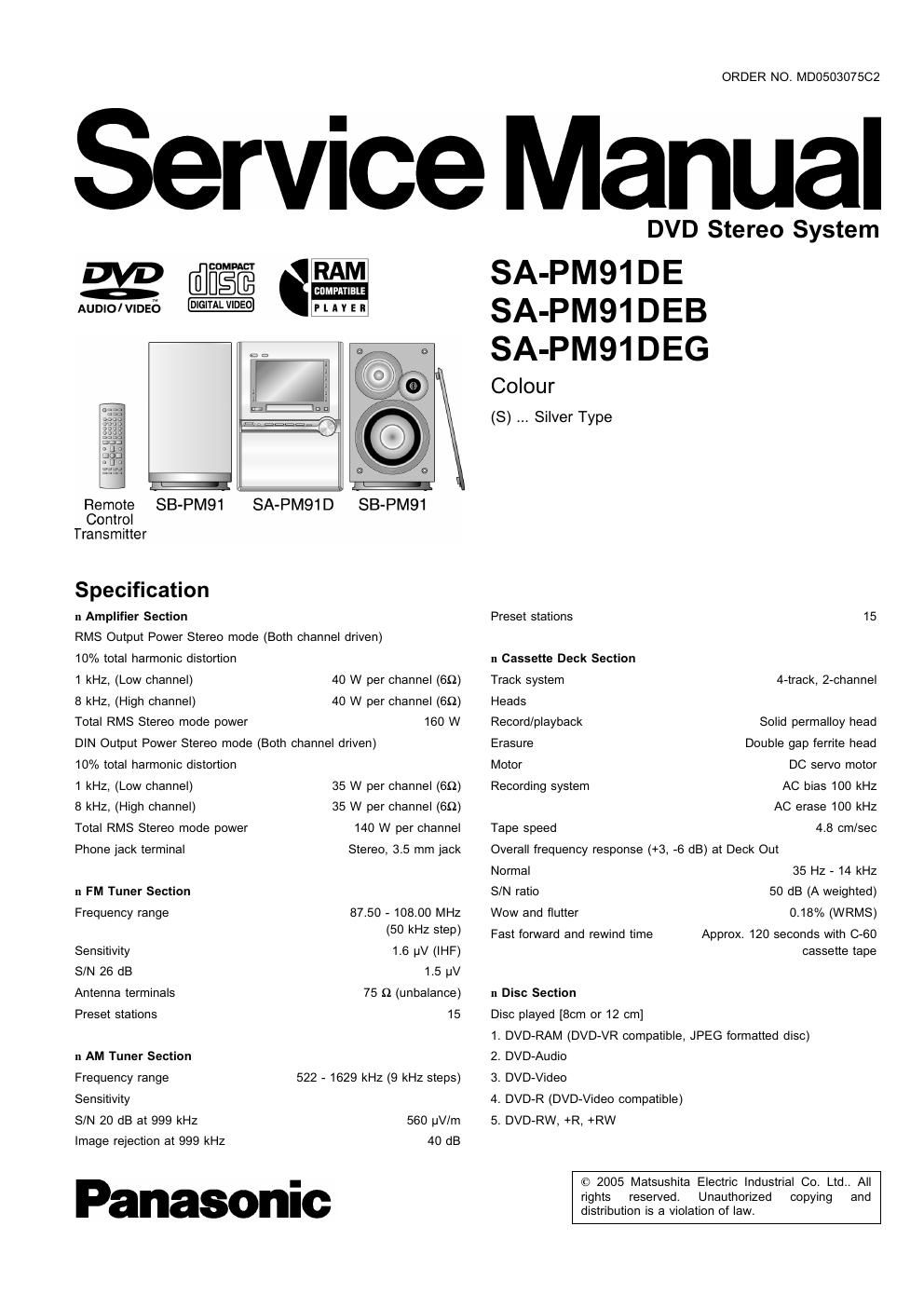

SA-PM91 DE ISA-PM91DEB I SA-PM91DEG

6. CD-Audio (CD-DA)
7. Video CD
8. SVCD (Conforming to IEC62107)
9. CD-R/CD-RW
(CD-DA, Video»CD, SVCD, MP3) WMA, JPEG formatted discs)
10. MPSNVMA
- Compatible compression rates:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
11. JPEG
~ Exif Ver 2.1 JPEG Baseline files
~ Picture resolution:
between 320 x 240 and 6144 x 4096 pixels
(Sub sampling is 4:2:2 or 42:0)
12. HighMAT Level 2 (Audio and Image)
13. HDCD

The total combined maximum number of recognizable audio and
picture contents and groups: 4000 audio and picture contents and
400 groups.

Audio output
Number of channels 2
Digital audio output

Optical digital output Optical terminal

Pick up

Wavelength

DVD 662 rim
CD 785 nm

Laser power CLASS 2/CLASS 3a
n Video Section
Video system PAL625/50, PAL525/60, NTSC

Composite video output

Y output level 1 Vp-p (759)
0.3 Vp-p (75:2) (PAL)
0.286 Vp-p (759) (NTSC)

S terminal (1 system)

C output level

Terminal

RGB video output
R output level 0.7 Vp-p (750)
0.7 Vp-p (75:2)
0.7 Vp-p (75:2)

SCART jack

G output level
B output level
Terminal

n General
Power supply AC 230 V, 50 HZ (E/EG)

AC 230-240 V, 50 HZ (EB)

Power consumption 140 W
Dimensions (W x H x D) 175 mm x 248 mm x 388 mm
Mass 5.8 kg
Operating temperature range +5°C to + 35°C (+41°F to
+95°F)

Operating humidity range 5% to 90% RH (no
condensation)

Power consumption in standby mode 0.5 W

n System

n System: SC-PMQiDE-S Music Center: SA-PM91DE-S
Speaker: SB»PM91P-MJ

Music Center: SA-PM91DEB-S
Speaker: SB-PM91P-MJ

Music Center: SA-PMQtDEG-S

Speaker: SB»PM91P-MJ

n System: SC-PM91DEB-S

n System: SC-PMQi DEG-S

Notes :

1.Specifications are subject to change without notice.
Mass and dimensions are approximate.

Output |eve| 1 Vp-p (75g) 2.Total harmonic distortion is measured by the digital spectrum
I .
Terminal Pin jack (1 system) ana yzer
S-Video output
A. WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this sen/ice information by anyone else could result in serious injury or death.

CONTENTS

Page

1 Safety Precautions ------------------------------------------------------------------ 4
1.1. GENERAL GUIDELINES ------------------------------------------------ 4

2 Caution for AC Mains Lead ----------------------------------------------------- 5
3 Before Repair and Adjustment ----------------------------------------------- 6

4 Protection Circuitry -----
5 Prevention of Electra Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices ................................. 6

6 Handling the Lead-free Solder

6.1. About lead free solder (PbF)-

7 Precaution of Laser Diode ---------

Page

8 Cautions to be taken when handling Optical Pickup ............. g
8.1. Handling Optical Pickup ---------------------------------------------- 9

8.2. Replacing Precautions for Optical Pickup Unit ................. 9

8.3. Grounding for Preventing Electrostatic Destruction ---------- 9

9 Accessories -------------------------------------------------------------------------- 10
10 Operation Procedures ----------------------------------------------------------- 11
11 Disc Information ------------------------------------------------------------------- 13

12 About HighMAT .............
12.1. What [I HighMAT?
12.2. Why take advantage of HighMAT?
