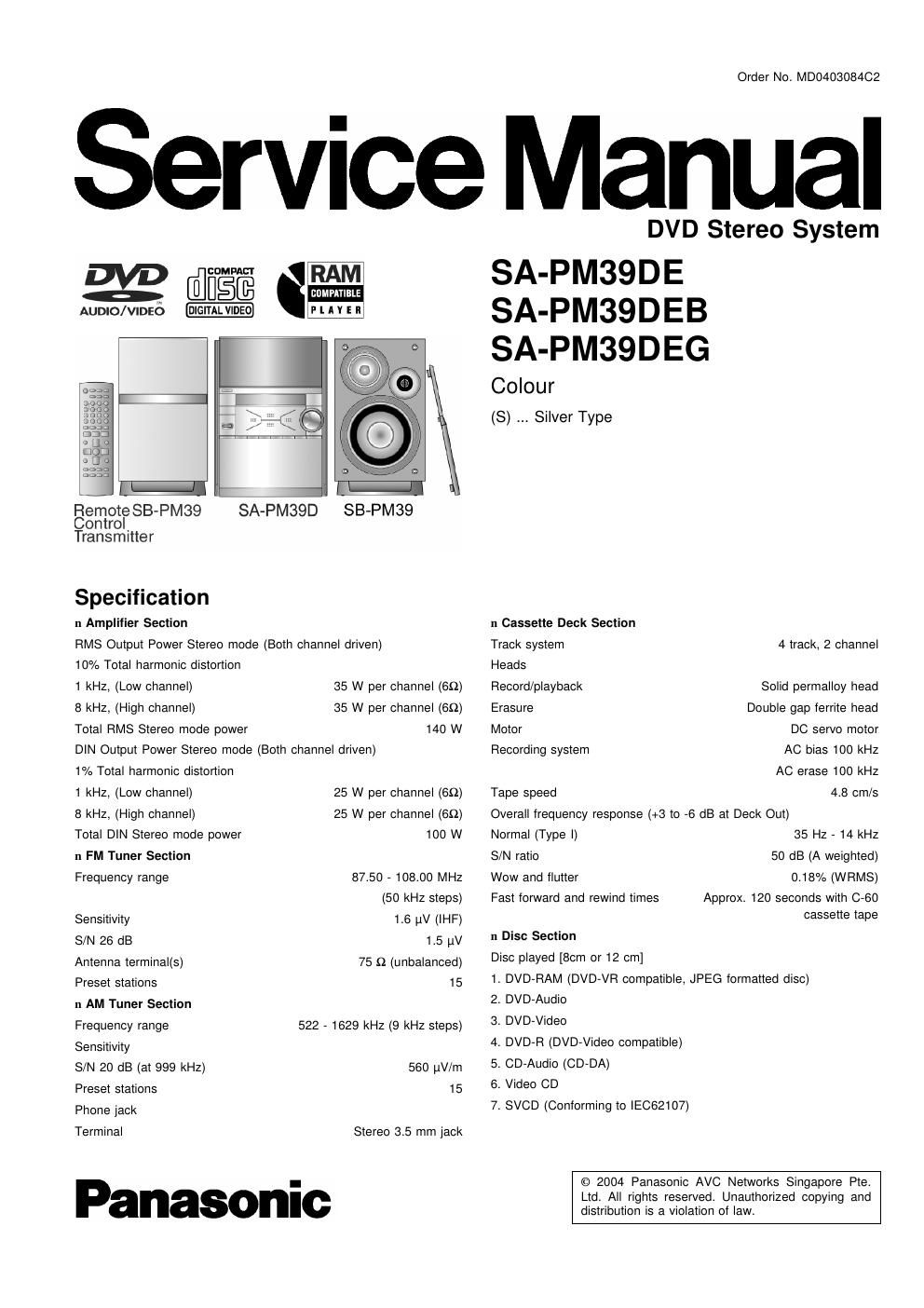

Panasonic sa pm39de service manual

Page 2

SA-PMQSDE / SA-PMSSDEB / SA-PMSQDEG

8. CD-R/CD-RW
(CD-DA, Video-CD, SVCD, MP3, WMA, JPEG formatted disc)
9. MP3/WMA
~ Compatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
10. JPEG
~ Exit Ver 2.1 JPEG Baseline files
- Picture resolution:
between 320 x 240 and 6144 x 4096 pixels
(Sub sampling is 4:22 or 4:2:0)
1t. HighMAT Level 2 (Audio and Image)

* The total combined maximum number of recognizable audio and
picture contents and groups: 4000 audio and picture contents and
400 groups.
Video system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75(2)
Terminal Pin jack (1 system)
S-Video output
Y output level 1 Vp-p (7551)
0.3 Vp-p (7SQ)(PAL)
0.286 Vp-p (7SQ)(NTSC)

S terminal (1 system)

C output level

Terminal
RGB video output

R output level 0.7 Vp-p (759)
G output level 0.7 Vp-p (759)
B output level 0.7 Vp-p (7511)

Terminal SCART jack (1 system)
Audio output
Number of channels 2

Digital audio output

Optical digital output

Pick up

Wavelength

DVD

CD

Laser power

it General

Power supply

For EB

For E/EG

Power consumption

Power consumption (standby mode)
Dimensions (W x H x D)
Mass

Operating temperature range

Operating humidity range

II System
n System: SC-PM39D E-S

n System: SC-PM39D EB-S

n System: SC-PMSSD EG-S

Notes:

Optical terminal

662 nm
785 nm
CLASS 2/CLASS 3a

AC 230 - 240 V, 50 Hz
AC 230 V, 50 Hz

125 W

0.7 W

174.6 x 251 x 376 mm
5.8 kg

+5°C to + 35°C (+41 F to
+95 °F)

5% to 90% RH (no
condensation)

Music Center: SA-PM39D E-S
Speaker: SB-PM39 EG-M

Music Center: SA-PM39D EB-
S

Speaker: SB-PM39 EG-M

Music Center: SA-PM39D EG-
S

Speaker: SB-PM39 EG-M

1.Specifications are subject to change without notice.
Mass and dimensions are approximate.

2.Total harmonic distonion is measured by the digital spectrum

analyzer.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

1 Caution tor AC Mains Lead -----
2 Before Repair and Adjustment

3 Protection circuitry ..............

10.2. Why use HighMAT? ---------
10.3. The advantages of using HighMAT
10.4. Outline of the HighMAT standard --

4 Prevention oi Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices ---------------------------------

5 Handling the Lead-tree Solder
5.1. About lead free solder (PbF)-
6 Handling Precautions For Traverse Deck

7 Precaution of Laser Diode ------------------------------------------------------ 7
............................................................... 9

8 Accessories ------
9 Operating Instructions
10 About HighMAT-
10.1. What is HighMAT?

11 Disassembly and Main Component Replacement Procedures.
---------------------------------------------------------------------------------------------- 15
11.1. Disassembly flow chart -----------------
11.2. Disassembly of Side Panel (L) & (Fl)
11.3. Disassembly of Top Cabinet Unit--

11.4. Disassembly of Deck Mechanism Unit and Tape Eject
P.C.B. -------------------------------------------------------------------------- 16
11.5. Disassembly of Front Panel Unit
11.6. Disassembly of Panel P.C.B
11.7. Disassembly of Rear Panel --
