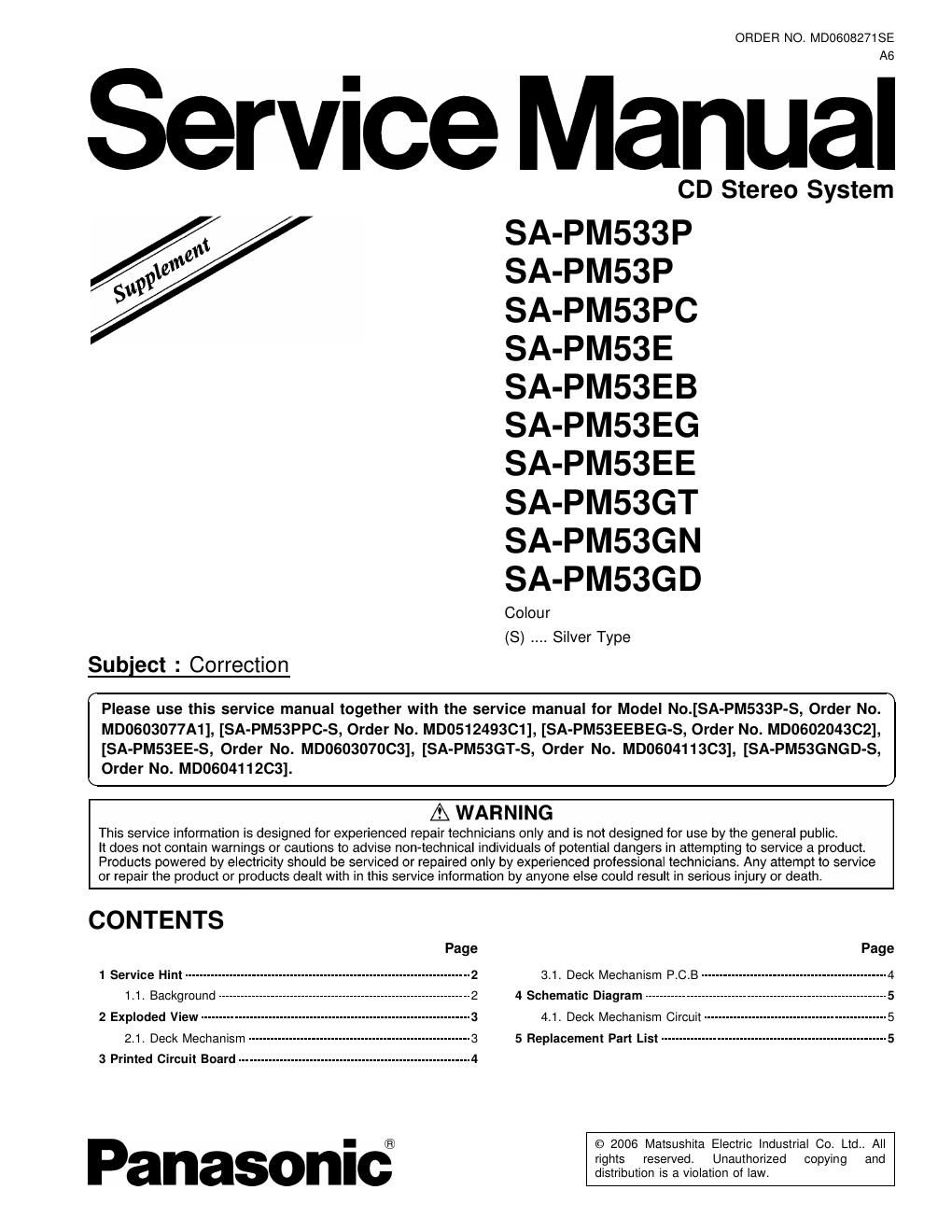

ORDER NO. MD0608271 SE

Service Manual

6
\e
3039

Subiect : Correction

CD Stereo System

SA-PM533P
SA-PM53P

SA-PM53PC
SA-PM53E

SA-PM53EB
SA-PM53EG
SA-PM53EE
SA-PM53GT
SA-PM53GN
SA-PM53GD

Colour
(8) Silver Type

Order No. MD0604112C3].

Please use this service manual together with the service manual for Model No.[SA-PM533P-S, Order No.
M00603077A1], [SA-PM53PPC-S, Order No. MD0512493C1], [SA-PM53EEBEG-S, Order No. MD0602043C2],
[SA-PM53EE-S, Order No. MD0603070C3], [SA-PMSSGT-S, Order No. MD060411303], [SA-PMSSGNGD-S,

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise nontechnical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS
Page
1 Service Hint ---------------------------------------------------------------------------- 2
1.1. Background -- 2
2 Exploded View --3
2.1. Deck Mechanism- --3
3 Printed Circuit Board 4

Panasonic?

Page
3-1. Deck Mechanism P.C.B _________________________________________________ 4
4 Schematic Diagram ............... _5

-5
5 Replacement Part List ............................................................ 5

4.1. Deck Mechanism Circuit

© 2006 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

lSA-PMSSSP / SA-FMSSP / SA-PM53PC / SA-PM53E / SA-FMSSEB / SA-PMSSEG / SA-PMSQEE / SA-FMSSGT / SA-PMSQGN / SA-PMSSGD

1 Service Hint
1.1. Background

This document describes necessary important information that must be followed accordingly when during the service repair.

1.1.1. Change of Deck Mechanism

Below information indicates the change of part no. for the deck mechanism.

Model No. Original Part No. New Part No. Remarks
SA-PMSSP/PC-S RAA4402-S RAA4403-S [M] CHANGE
SA-PM533P-S & RAA4402-1S RAA4403-S [M] CHANGE
SA-PM53E/EB/EG/EE/GT/GN/GD-S

[M] indicates parts that are supplied by PAVCSG.

Note: The new deck mechanism P.C.B is implemented without $973 & J11.
1.1.2. Change of Deck Mechanism P.C.B

Below information indicates the change of part no. for Deck mechanism P.C.B

Model No. Ref. No. Original Pan No. New Part No. Part Name & Remarks
Descriptions
SW CR02 [M] DELETE

SA-PM533P-S & $973 KOJ1 BB000021

SA-PM53P/PC/E/EB/EG/ REPX0321H REPX0321F Deck Mechanism P.C.B [M] CHANGE
EE/GT/GN/GD-S

[M] indicates parts that are supplied by PAVCSG.
