Extracted text from panasonic sa pm 39 d service manual (Ocr-read)

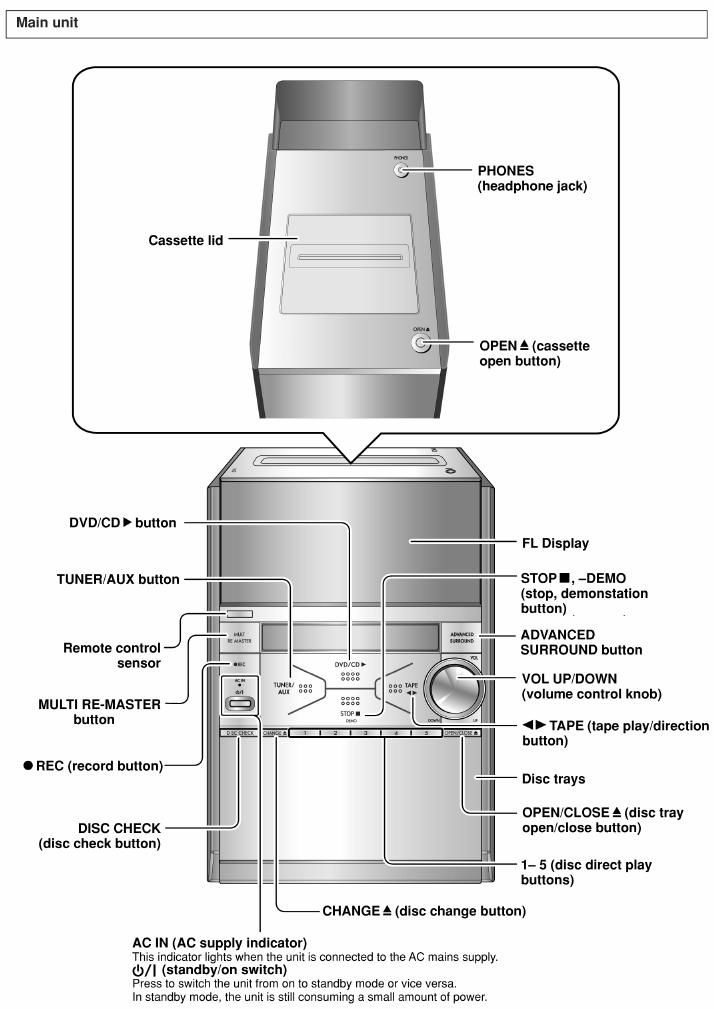

Page 1
I Main unit
r \
PHONES
(headphone jack)
Cassette lid
OPEN A (cassette
open button)
DVD/CD V button
I FL Display
TUNER/AUX button STOP I, -DEMO
(stop, demonstation
button)
m - ADVANCED
Remote control SURROUND button
sensor ova/co»
mg - VOL UP/DOWN
(volume control knob)
MULTI RE-MASTER
button 4 > TAPE (tape play/direction
button)
0 REC (record button)
T Disc trays
OPEN/CLOSE A (disc tray
DISC CHECK ll
open/close button)
(disc check button)
- 1- 5 (disc direct play
: % buttons)
CHANGE; (disc change button)
Ac IN (Ac supply indicator)
This indicator lights when the unit is connected to the AC mains supply.
(Lt/I (standby/on switch)
Press to switch the unit from on to standby mode or Vice versa.
In standby mode, the unit is still consuming a small amount oi power.
