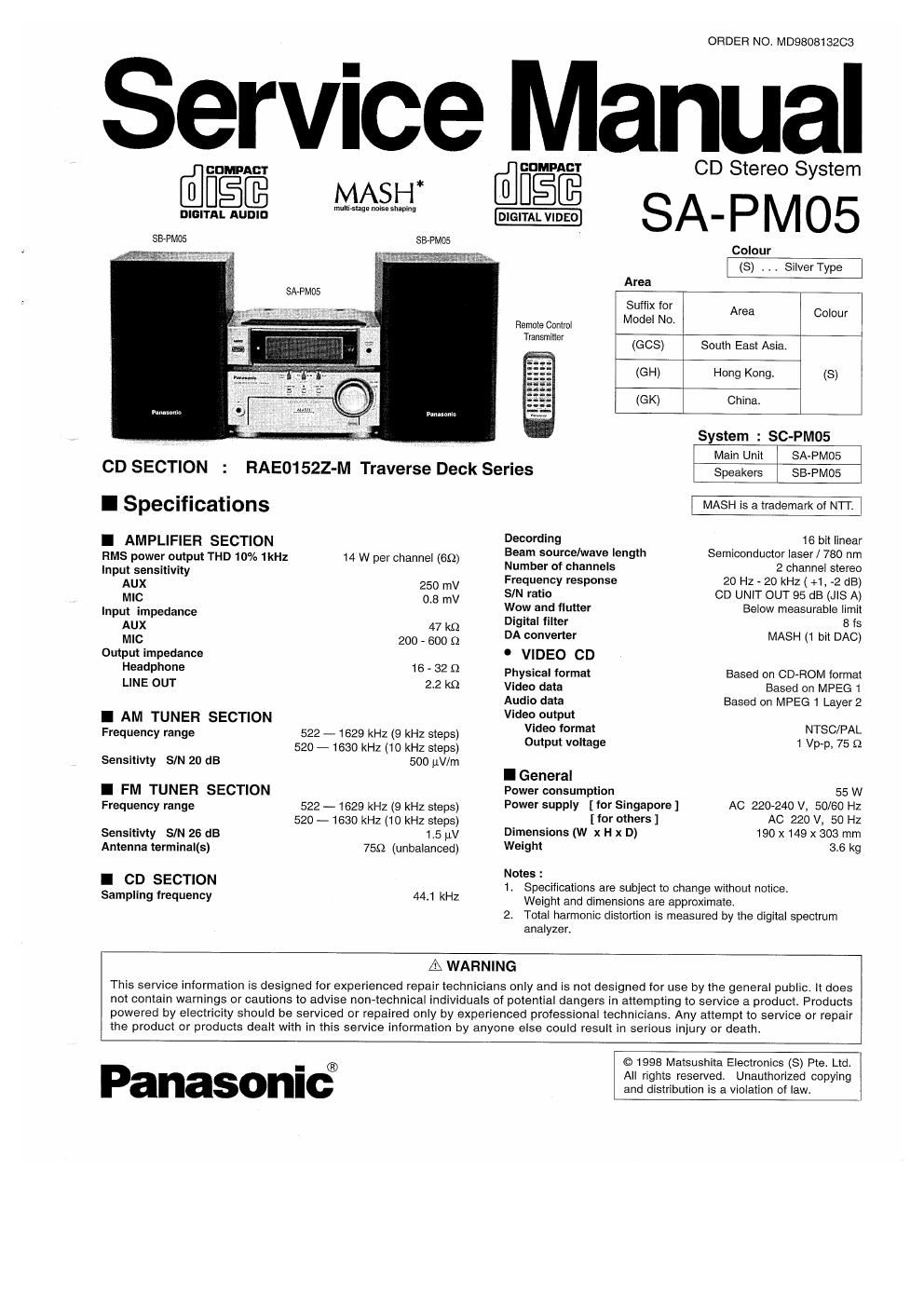

Page 1

ORDER NO. MD980813203

Service Manual

@GOWABT

DIGITAL AUDIO

SB-FMOS

"7&5to

Fanasunto

CD SECTION :

I Specifications

I AMPLIFIER SECTION
HMS power output THD 10% 1kHz

Input sensitivity
AUX
MIC

Input impedance
AUX
MIC

Output impedance
Headphone
LINE OUT

I AM TUNER SECTION

Frequency range
Sensitivty SIN 20 (IE

I FM TUNER SECTION

Frequency range

Sensitivty SIN 26 dB
Antenna terminal(s)

I CD SECTION

MASH

munisuga noisn shining

SBPMOS

SA-PMOS

anlonlc

RAE01522-M Traverse Deck Series

14 W per channel (69)

250 mV
0.8 mV

47 k!)
200 - 600 9

16-329
2.2kQ

522 7 1629 kHz (9 kHz steps)
520 - 1630 kHz (10 kHz steps)
500 uV/m

522 - 1629 kHz (9 kHz steps)
520 e 1630 kHz (10 kHz steps)
1.5 uV

759 (unbalanced)

drummer CD Stereo System
DIGITAL VIDEO : ;A- I M 05
Colour
(8) . Silver Type
Area
Suffix for
Area Colour
Remote Control MOdel NO'
"5 (G08) South East Asia.
(GH) Hong Kong. (S)
(GK) China.

System : SC-PM05
Main Unit SA-PMOS
Speakers SB-PM05

MASH is a trademark of NTT.

16 bit linear

Semiconductor laser I 750 nm
2 channel stereo

20 Hz - 20 kHz ( +1, -2 dB)
SIN ratio CD UNIT OUT 95 dB (JIS A)
Wow and flutter Below measurable limit
Digital filter 8 fs

Decording

Beam source/wave length
Number of channels
Frequency response

DA converter MASH (1 bit DAC)
' VIDEO CD
Physical format Based on CD-ROM format
Video data Based on MPEG 1
Audio data Based on MPEG 1 Layer 2
Video output
Video format NTSC/PAL
Output voltage 1 Vp-p, 75 Q
I General
Power consumption 55 W

Power supply [for Singapore ]

[for others ]
Dimensions (W x H x D)
Weight

AC 220-240 V. 50/60 Hz
AC 220 V, 50 HZ

190 x149 x 303 mm

3.6 kg

Notes :
1. Specifications are subject to change without notice.

Sampling frequency 44-1 kHz Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to sen/ice or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic?

© 1998 Matsushita Electronics (S) Pte. Ltd.
All rights reserved. Unauthorized copying
and distribution is a violation of law.

Page 2

SA-PM05

I Contents
PAGE

0 ACCESSORIES ....................................................................... 2
0 HANDLE PRECAUTIONS FOR TRAVERSE DECK
0 PRECAUTION OF LASER DIODE.
0 CAUTION FOR AC MAINS LEAD
0 CONNECTIONS .,
~ FRONT PANEL CONTROLS
0 LISTENING TO RADIO BROADCASTING
' PLAYING CDs ........................................
' SINGING ALONG WITH KARAOKE
' USING THE TIMER ....................

SETTING THE TIME H
O OPERATION CHECKS . 15 ~ 19
' SELF-DIAGNOSTIC DISPLAY FUNCTION ............................... 20

I Accessories

~ SCHEMATIC DIAGRAM...
0 TERMINAL FUNCTION OF ICs. .............................
' TERMINAL GUIDE OF ICs TRANSISTORS AND DIODES .
- BLOCK DIAGRAM

0 PRINTED CIRCUIT BOARD
' WIRING CONNECTION DIAGRAM
' TROUBLESHOOTING GUIDE
0 LOADING MECHANISM PARTS
0 CABINET PARTS LOCATIONS
° REPLACEMENT PARTS LIST
. RESISTORS 8t CAPACITORS ..............
. PACKING MATERIALS & ACCESSORIES
- PACKAGING .............................................................................. B4

FM indoor antenna AM Loop antenna

AC power cord ..... (tor Others)

Video Connection cable

Remote control transmitter Batteries

I Handling Precautions for Traverse Deck

The laser diode in the traverse deck (optical pickup) may break down due to potential difference caused by static electricity at clothes or human body.
So, be careful of electrostatic breakdown during repair of the traverse deck (optical pickup).

0 Handling of traverse deck (optical plckup)
1. Do not subject the traverse deck (optical pickup) to static electricity
as it is extremely sensitive to electrical shock.
2. The short land between the N04 (LD) and No.5 (GND) pins on the
flexible boards (FFC) is shorted with a solder buildAup to prevent
damage to the laser diode.

To connect to the PC board, be sure to open by removing the
solder build-up, and finish the work quickly.
3. Take care not to apply excessive stress to the flexible board (FFC
board).
4. Do not turn the variable resistor (laser power adjustment). It has
already been adjusted.

- Grounding for electrostatic breakdown prevention
1. Human body grounding

Use the anti-static wrist strap to discharge the static electricity
from your body.
2 Work table grounding

Put a conducive material (sheet) or steel sheet on the area where
the traverse deck (optical pickup) is placed, and ground the sheet.

Caution:

The statlc electricity of your clothes erI not be grounded through the
wrist strap. 80, take care not to let your clothes touch the traverse deck
(optical pickup).

FFC board
(Handle it carefully)

Lens (Do not touch)

Variable reslstor
(Do not turn)

Wrist strap

(AMI-static bracelet) /
Iron plate or some metals to
conduct electricity

1M9
