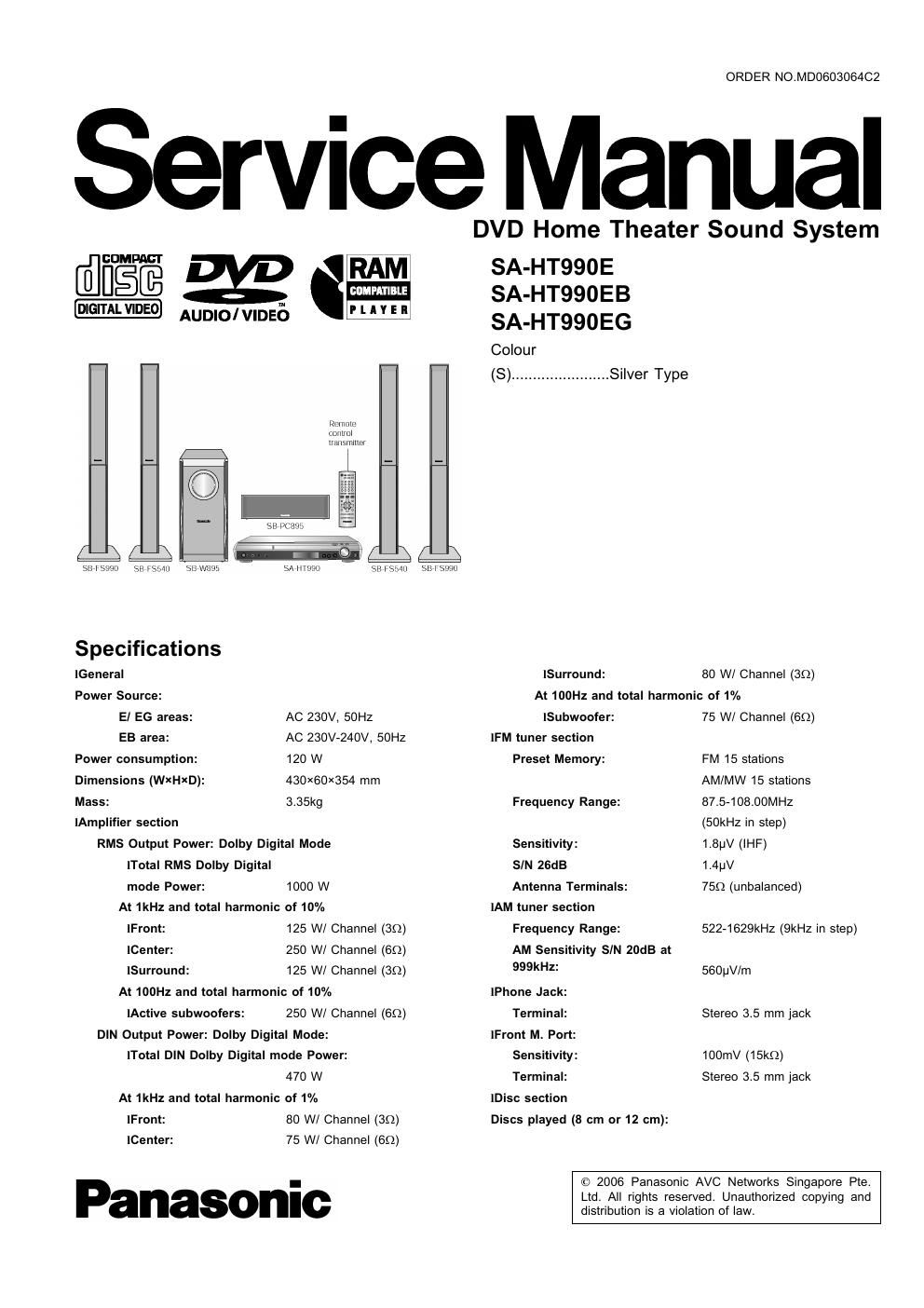

Page 1

ORDER NO.MD0603064CZ

Service Manual

[ﬂﬁEﬁ E %

"3- V'DE° AUDIOI VIBE?)
Remote,
WW
_ so mass
,.
um
58 F5950 SE F5540 SE W59.» SA HT 990 SB F5540 58455991)
Specifications
lGeneral

Power Source:

El E6 areas: AC 230V, 50Hz

EB area: AC 230V-240V, 50Hz
Power consumption: 120 W
Dimensions (WXHXD): 430><60><354 mm
Mass: 3.35kg

lAmplifier section
RMS Output Power: Dolby Digital Mode
lTotal RMS Dolby Digital
mode Power: 1000 W

At 1kHz and total harmonic of 10%

lFront: 125 W/ Channel (30)
lCenter: 250 W/ Channel (60)
lSurround: 125 W/ Channel (39)

At 100Hz and total harmonic of 10%
250 WI Channel (en)
DIN Output Power: Dolby Digital Mode:
lTotal DIN Dolby Digital mode Power:
470 W

At 1kHz and total harmonic of 1%
80 W/ Channel (30)
75 W/ Channel (6(2)

Panasonic

lActive subwoofers:

lFront:
lCenter:

DVD Home Theater Sound System

SA-HT990E
SA-HT990EB
SA-HT990EG

Colour
(S) ....................... Silver Type

lSurround: 80 W/ Channel (30)
At 100Hz and total harmonic of 1%
lSubwoofer: 75 W/ Channel (69)
[FM tuner section
FM 15 stations
AM/MW 15 stations
87.5-108.00MHZ
(50kHz in step)
Sensitivity: 1.8pV (IHF)

SIN 26dB 1.4pV

759 (unbalanced)

Preset Memory:

Frequency Range:

Antenna Terminals:
lAM tuner section
Frequency Range:
AM Sensitivity SIN 20113 at

522-1629kHZ (QkHZ in step)

999kHz: 560pV/m
[Phone Jack:
Terminal: Stereo 3.5 mm jack
lFront M. Port:
Sensitivity: 100mV (15kg)
Terminal: Stereo 3.5 mm jack

lDisc section

Discs played (8 cm or 12 cm):
