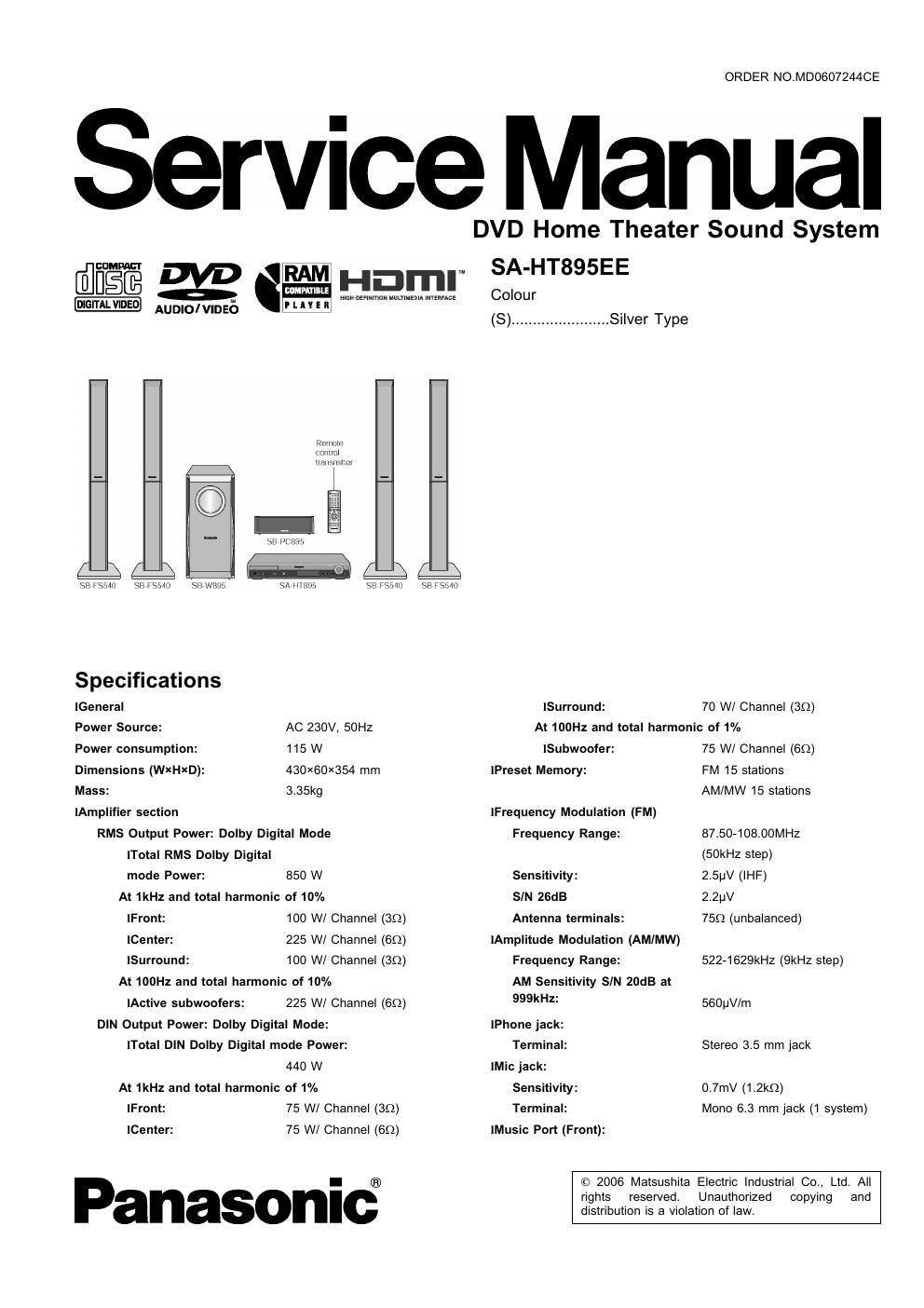

Page 1

ORDER NO.MD0607244CE

Service Manual

RT HDI'I'II'"

Klan mwmw meEDiA Mama:
I' L A I E I

WEE

AUDIDI VIDEa

Rcrimtv,
LOl iUol
tranSlTlllEr

§9 W7 R
SB F5540 SB FSSIU SBVWRQS _ SA H [895 - 5815340 SBVFSSAU
Specrfications
[General

Power Source: AC 230V, 50Hz

Power consumption: 115 W
Dimensions (WXHXD): 4BOXBOX354 mm
Mass: 3.35kg

[Amplifier section
RMS Output Power: Dolby Digital Mode
[Total RMS Dolby Digital
mode Power: 850 W
At 1kHz and total harmonic of 10%

lFront: 100 W/ Channel (30)
[Center: 225 W/ Channel (69)
[Surround: 100 W/ Channel (30)

At 100Hz and total harmonic of 10%
225 WI Channel (en)
DlN Output Power: Dolby Digital Mode:
[Total DIN Dolby Digital mode Power:
440 W

At 1kHz and total harmonic of 1%
75 W/ Channel (39)
75 W/ Channel (69)

Panasonic?

[Active subwoofers:

lFront:
lCenter:

DVD Home Theater Sound System

SA-HT895EE
Colour
(8). .Silver Type

[Surround:

70 W/ Channel (39)
At 100Hz and total harmonic of 1%

75 W/ Channel (6(2)
FM 15 stations
AM/MW 15 stations

[Subwoolen

[Preset Memory:

[Frequency Modulation (FM)

87.50»108.00MHZ
(50kHz step)
2.5pV (IHF)
2.2nv

750 (unbalanced)

Frequency Range:

Sensitivity:

SIN 26dB

Antenna terminals:
[Amplitude Modulation (AM/MW)

Frequency Range:

AM Sensitivity SIN 20dB at

522-1629kHZ (9kHZ step)

999kHz: 560pV/m
[Phone jack:
Terminal: Stereo 3.5 mm jack
[Mic jack:
Sensitivity: 0.7mV (1.2m)
Terminal: Mono 6.3 mm jack (1 system)

[Music Port (Front):
