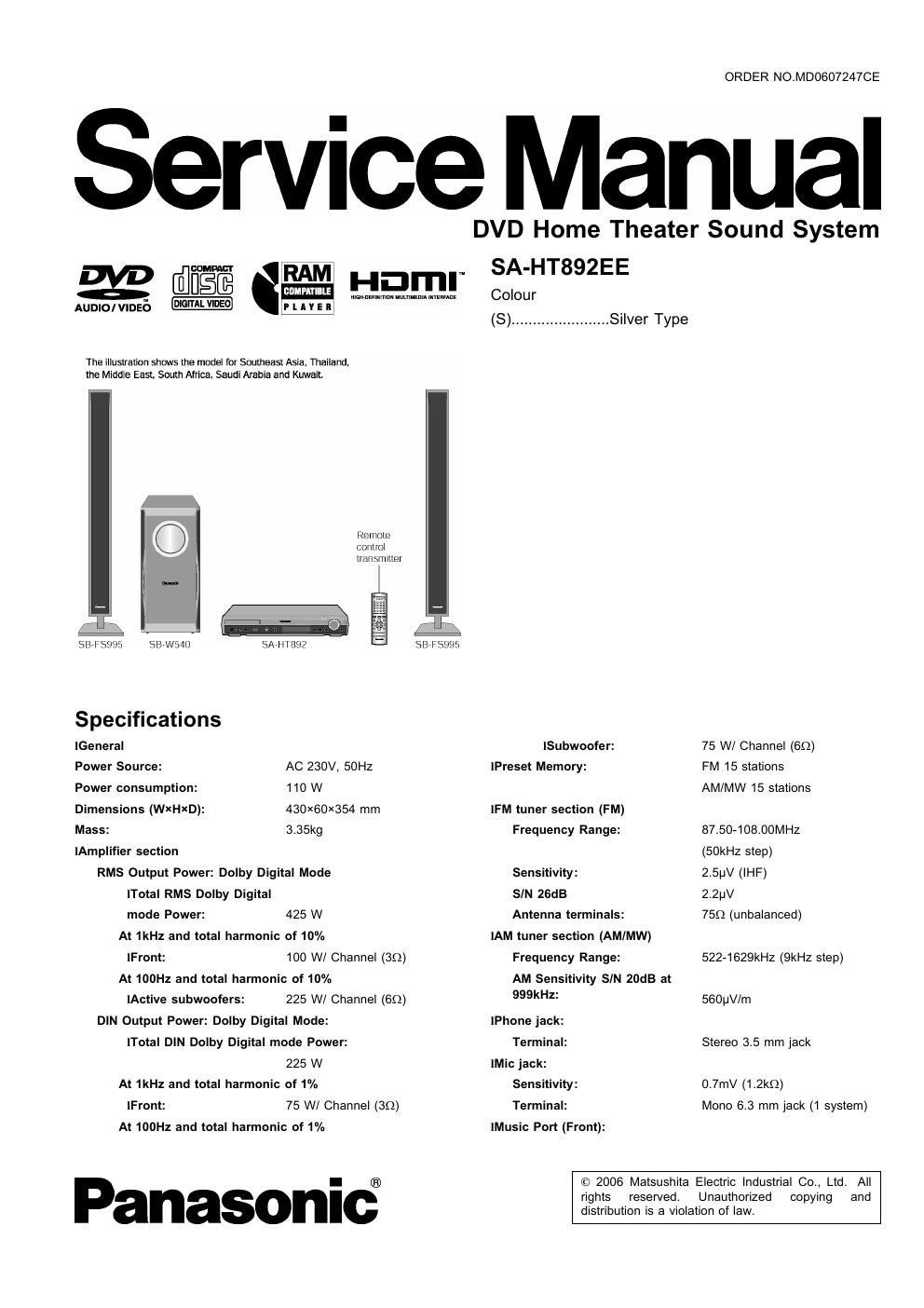

Page 1

ORDER NO.MD0607247CE

Service Manual

HDITIF

"MPHMDI Ilulrlnlwt 1mm:

The illusiralion shows the model for Southeast Asia, Thailand,
the Middle East. South Africa, Saudi Arabia and Kuwait,

/-\
t O 1

Remote
control
lransm mer

, \
SRFSQQS SBVWSAO SA HTSQ? SB F5995
Specrfications

[General

Power Source: AC 230V, 50Hz

Power consumption: 110 W
Dimensions (WXHXD): 430> Mass: 3.35kg

[Amplifier section
RMS Output Power: Dolby Digital Mode
[Total RMS Dolby Digital
mode Power: 425 W
At 1kHz and total harmonic of 10%
100 W/ Channel (39)
At 100Hz and total harmonic of 10%
225 W/ Channel (en)
DIN Output Power: Dolby Digital Mode:
[Total DIN Dolby Digital mode Power:
225 W
At 1kHz and total harmonic of 1%
75 W/ Channel (30)
At 100Hz and total harmonic of 1%

Panasonic?

[Front

[Active subwoofers:

[Front:

DVD Home Theater Sound System

SA-HT892EE

Colour

(8). .Silver Type

[Subwoolen 75 W/ Channel (69)
FM 15 stations

AM/MW 15 stations

[Preset Memory:

[FM tuner section (FM)

Frequency Range: 87.50»108.00MHz
(50kHz step)
2.5pV (IHF)
2.2pV

759 (unbalanced)

Sensitivity:
SIN 26dB
Antenna terminals:
[AM tuner section (AM/MW)
Frequency Range:
AM Sensitivity SIN ZOdB at

522-1629kHz (9kHZ step)

999kHz: 560uV/m
[Phone jack:
Terminal: Stereo 3.5 mm jack
[Mic jack:
Sensitivity: 0.7mV (1.2km
Terminal: Mono 6.3 mm jack (1 system)

[Music Part (Front):

© 2006 Malsushita Electric Industrial 00., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-HTEBZ EE

Sensitivity: 100mV (15km Total harmonic distortion:
Terminal: Stereo 3.5 mm jack CD-Audio: 0.005 /0
lDisc section lVideo section
Discs played (8 cm or 12 cm): Video system:
(1) DVD [DVD-Video, DVD-Audio, DivX(1,2)] Signal system: PAL 625/50, PAL 525/60,
(2) DVD-RAM [DVD-VR, MP3(2,6), JPEG('2,3), MPEG4(2,4), NTSC
DivX(1,2)] Composite video output:
(3) DVD»R [DVD-Video, DVD-VR, MP3(2,6), JPEG(2,3), Output level: 1 Vp-p (75 o)
MPEG4(2,4), DivX(*1l2)] Terminal: Pin jack (1 system)
(4) DVD-R DL [DVD-Video, DVD-VR] S-video output.
(5) DVD»RW [DVD-Video, DVD-VR, MP3(2,6), JPEG(*2,3), Y output level: 1 Vp-p (75 Q)
MPEG4C2'4) DWXCLZH C output level: PAL: 0.3Vp-p (759)
(6) +RI+RW iVideo] NTSC; 0.286 Vp»p (75 o)
(7) HR DL [Video] Terminal S terminal (1 system)

(8) co, CD»R/RW [CD-DA, Video co, svcocs), MP3(2,6),

WMA("2,7), JPEG(2,3), MPEG4(*2,4), DivX (,12) HighMAT Component Video output (NTSC: 480pl480l, PAL: 576pl576l):

Level 2 (Audio and Image)] Y WWWt lave 1 VW (75 9i
*1 Plays all versions of DivX® video (including DivX®6) with Pa output level: 0-7 VDP (75 9)
standard playback of DivX® media files. Certified to the DivX PR output level: 0.7 Vp»p (75 Q)
Home Theater Profile. Terminal: Pin jack (Y: green, PE: blue,
lGMC (Global Motion Compensation) is not supported. PR: red) (1 system)
2 The total combined maximum number of recognizable audio, HDMI AV output:
picture and video contents and groups: 4000 audio, picture Terminal: 19-pin W99 A connector

and video contents and 400 groups.
'3 Exit Ver 2.1 JPEG Baseline files
lPicture resolution: between 160 x 120 and 6144 x 4096

HDMI Ver.1.2a (EDID Ver.1.3)
Power consumption in standby mode:

pixels (Sub sampling is 4:0:0, 42:0, 4:22, or 4:4;4). approx 03W
Extremely long and narrow pictures may not be displayed. N019:

'4 MPEG4 data recorded with Panasonic SD multi cameras or 1- Specifications are subject to change without notice.
DVD video recorders. Mass and dimensions are approximate.
1Conforming 0 SD VIDEO specifications (ASF standard)! 2. Total harmonic distortion is measured by the digital spectrum
MPEG4 (Simple Profile) video system/G726 audio system. analyzer.

'5 Conforming to |EC62107 Solder:

'6 MPEG4 Layer 3 MPEGQ Layer 3 This model uses lead free solder (PbF).

7 Windows Media Audio Ver.9.0 L3 Mechanism:
lNot compatible with Multiple Bit Rate (MBR) This model uses DLZSU (Single tray) mechanism.

Pick up:

Wavelengm: System SC-HT892EE
1°D= 785nm Main unit SA-HT892EE
lDVD: 662nm

Laser power: Speaker system SBrHTSQZGC
:9: CLASS 1M Active subwoofer SBAW54OE"2
lDVD: CLASS 1

Audio output (DISC):
Number of channels: 2.1 Ch (FL, FR, SW) Speaker system SB-HT892GC
Audio performance:
Frequency response: Front speakers SB-F5995GCM
DVD (linear audio): 4 HZ'22 kHZ (48 kHZ sampling) Refer to the original service manual for 1 & *2
4 Hz-44 kHz (96 kHz sampling)
DVD-Audio: 4 Hz-88 kHz (192 kHz
sampling)
CD-Audio: 4 H120 kHz
SIN ratio:
CD-Audio: 105 dB
Dynamic range:
DVD (linear audio): 95 dB
CD-Audio: 95 dB
