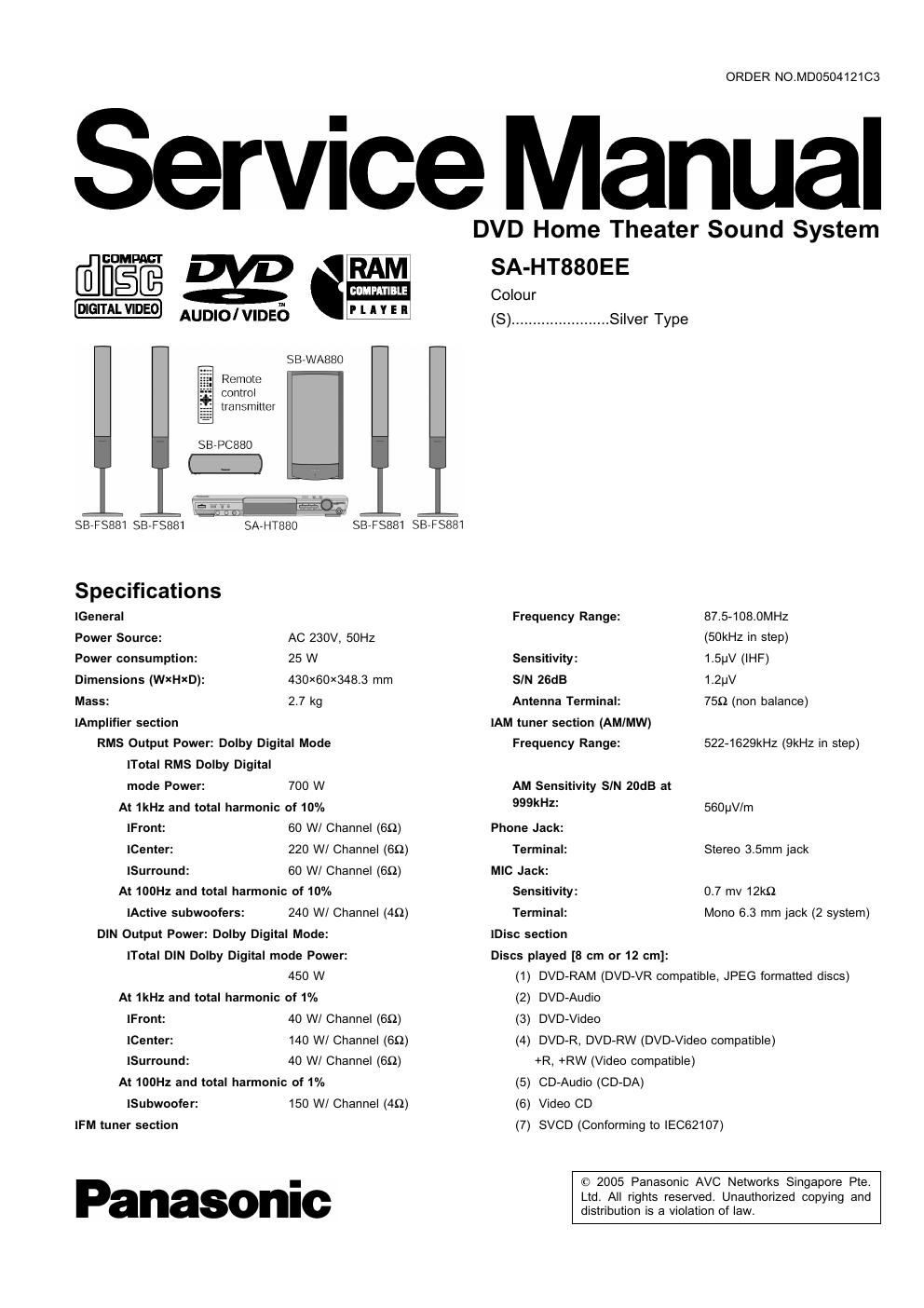

Panasonic sa ht 880 ee service manual

Page 2

SA-HTEBD EE

(8) CD-R/CD-RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG
formatted discs)

(9) MP3NVMA
lMaximum number of recognizable audio and picture contents
and groups:

4000 audio and picture
contents and 400 groups

lCompatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
(10) JPEG

lMaximum number of recognizable audio and picture contents
and groups:

4000 audio and picture
contents and 400 groups

lExif Ver 2.1 JPEG Baseline files
lPicture resolution: between 320 x 240 and 6144 x 4096
pixels (sub sampling is 4:2:2 or 422:0)

(11) HighMAT Level 2 (Audio and Image)

Pick up:
Source of light beam: Semiconductor Laser
Wavelength:
lCD: 785nm
lDVD: 662nm

Laser power: CLASS 2/ CLASS 3A

Audio output (DISC):
Number of channels: 5.1 ch (FL, FR, C, SL, SR,

SW)

Audio performance (measured at REC OUT terminal):
Frequency response:

DVD (linear audio): 10 Hz-22 kHz (48 kHz

sampling)
10 Hz-44 kHz (96 kHz
sampling)
DVD-Audio: 10 Hz-88 kHz (192 kHZ
sampling)
CD-Audio: 10 Hz-20 kHz
SIN ratio:
CD-Audio: 95 dB
Dynamic range:
DVD (linear audio): 95 dB
CD-Audio: 93 dB
Total harmonic distortion:
CD-Audio: 0.005 %

lVideo section
Video system:

Signal system: PAL 625/50, PAL 525/60,

NTSC
Composite video output:
Output level: 1 Vp-p (75 Q)
Terminal: Pin jack (1 system)

Scart jack (1 system)

S-video output:

Y output level: 1 Vp-p (75 9)
PAL; 0.3Vp-p (75 9)
NTSC; 0.286 Vp-p (75 Q)

S terminal (1 system)

C output level:

Terminal
Scart jack (1 system)

Component video output (480FI480I):
1 Vp-p (75 o)
0.7 Vp-p (75 9)
0.7 Vp-p (75 :2)
Pin jack (Y: green, PE: blue,
PR: red) (1 system)

Y output level:
PB output level:
PR output level:
Terminal:

RGB video output:

R output level: 0.7 Vp-p (75 9)
0.7 Vp-p (75 :2)
0.7 Vp-p (75 Q)

Scart jack (1 system)

G output level:
B output level:

Power consumption in standby mode:
approx 0.7W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:

This model uses lead free solder (PbF).

system SC-HT880EE

Main unit SA-HTSSOEE
Speaker system SB-HTBBOGC
Active subwoofer SB»WA880EE
Speaker system sB-HTBBDGC
Front speakers SBVFSBBl GC
Center speaker SB-PCBSOGC
Surround speakers SBrFSSBl GC

MPEG Layer-3 audio decoding technology licensed from Fraunhofer
IIS and Thomson multimedia.

Windows Media, and the Windows logo are

trademarks, or registered trademarks of .
Microsoft Corporation in the United States and/ .
or other countries. ..m
WMA is a compression lormat developed by Des gm ,0,
Microsoft Corporation. lt achieves the same mm
sound quality as MP3 with a tile size that is Medla

smaller than that of MP3.

trademarks or registered trademarks of

H HighMAT and the HighMAT logo are either
T Microsoft Corporation in the United States and/

or other countries.
I Built-in decoders n .c l T A l.
You can play discs With these symbols. an
n I G l T A L
S U I R O U N D
