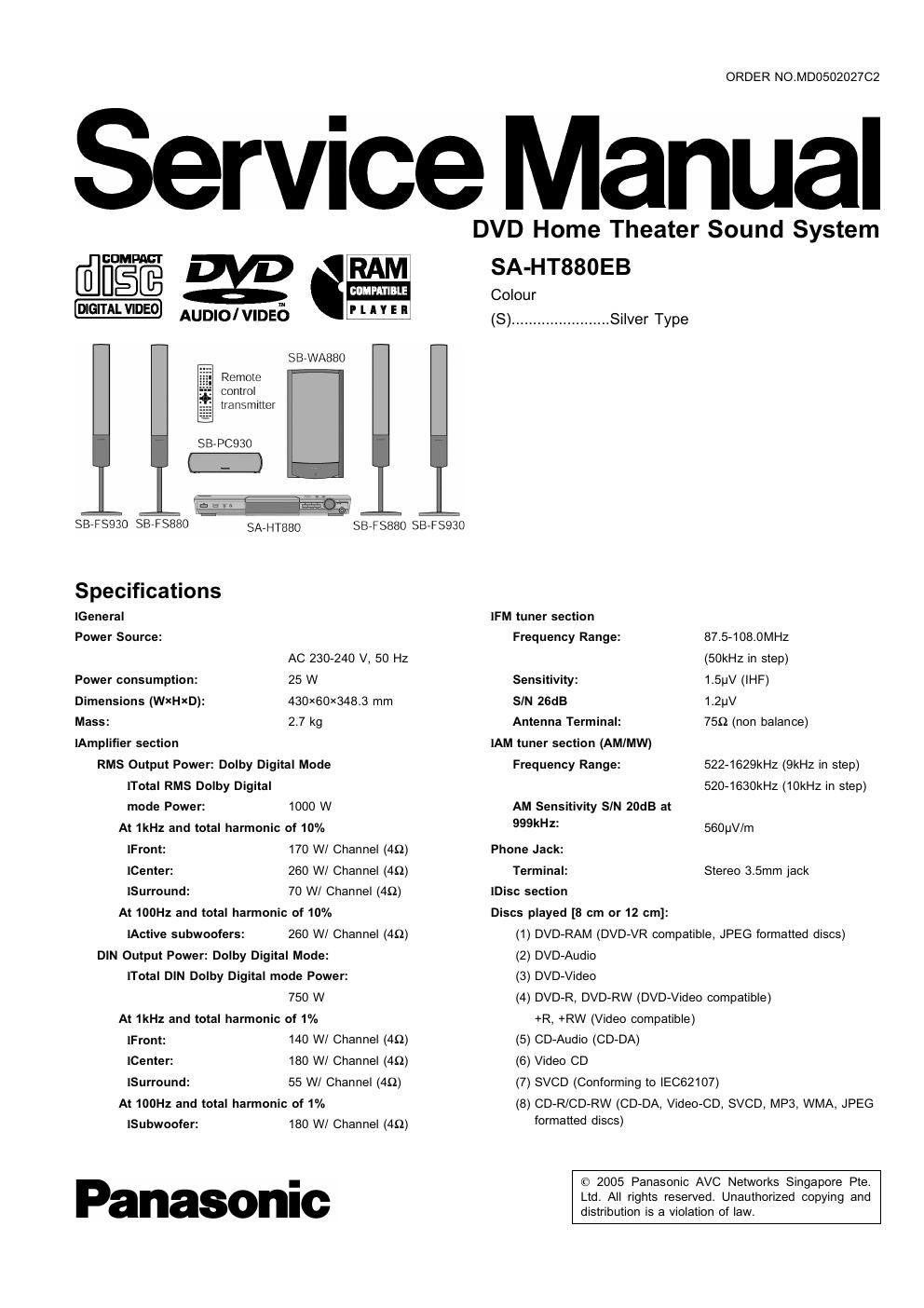

Panasonic sa ht 880 eb service manual

Page 2

SA-HTBSOEB

(9) MP3/WMA

lMaximum number of recognizable audio and picture contents

and groups:

lCompatible compression rate:

4000 audio and picture
contents and 400 groups

MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps

(10) JPEG

lMaximum number of recognizable audio and picture contents

and groups:

4000 audio and picture
contents and 400 groups

lExif Ver 2.1 JPEG Baseline files
lPicture resolution: between 320 x 240 and 6144 x 4096
pixels (sub sampling is 4:2:2 or 42:0)

(11) HighMAT Level 2 (Audio and Image)

Pick up:
Source of light beam:
Wavelength:
1CD:
lDVD:
Audio output (DISC):
Number of channels:

Semiconductor Laser

785nm
662nm

5.1 ch (FL, FR, c, SL, SR,
SW)

Audio performance (measured at LINE OUT terminal):

Frequency response:
DVD (linear audio):

DVD-Audio:

CD-Audio:

SIN ratio:
CD-Audio:

Dynamic range:
DVD (linear audio):
CD-Audio:

Total harmonic distortion:
CD-Audio:

IVideo section

Video system:

Signal system:

Composite video output:
Output level:
Terminal:

S-video output:
Y output level:

10 Hz-22 kHz (48 kHz
sampling)

10 HZ-44 kHz (96 kHz
sampling)

10 Hz-88 kHz (192 kHz
sampling)

10 HZ-20 kHz

95 dB

95 dB
93 dB

0.005 n/o

PAL 625/50, PAL 525/60,
NTSC

1 Vp-p (75 9)
Pin jack (1 system)

Scart jack (1 system)

1 Vp-p (75 Q)

C output level: PAL; 0.3Vp»p (75 Q)

NTSC; 0.286 Vp-p (75 :2)

Terminal S terminal (1 system)
Scart jack (1 system)

Component video output (480PI480l):

1 Vp-p (75 o)

0.7 Vp-p (75 9)

0.7 Vp-p (75 :2)

Pin jack (Y: green, PB: blue,

PR: red) (1 system)

Y output level:
PE output level:
PR output level:
Terminal:

RGB video output:

R output level: 0.7 Vp-p (75 9)
0.7 Vp-p (75 o)
0.7 Vp-p (75 Q)

Scart jack (1 system)

G output level:
B output level:
Terminal:
Power consumption in standby mode:
approx 0.7W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum

analyzer.
Solder:
This model uses lead free solder (PbF).
system SC-HT880
Main unit SA-HT880
Front speakers SB-FSQSO
Center speaker SB-P093O
Surround speakers SB-FS880
Active subwoofer SBPWA880

MPEG Layer-3 audio decoding technology licensed from Fraunhofer
IIS and Thomson multimedia.

Windows Media, and the Windows logo are

trademarks, or registered trademarks of .
Microsoft Corporation in the United States and! .
or other countries. ..~
WMA is a compression format developed by Des gm m,
Microsoft Corporation. It achieves the same mm
sound quality as MP3 with a tile size that is Media

smaller than that 01 MP3.

HighMAT and the HighMAT logo are either
trademarks or registered trademarks of
Microsoft Corporation in the United States and/
or other countries.

I Built-in decoders

You can play discs with these symbols. DU
n I G r 1' A L

DIGITAL

SURROUND
