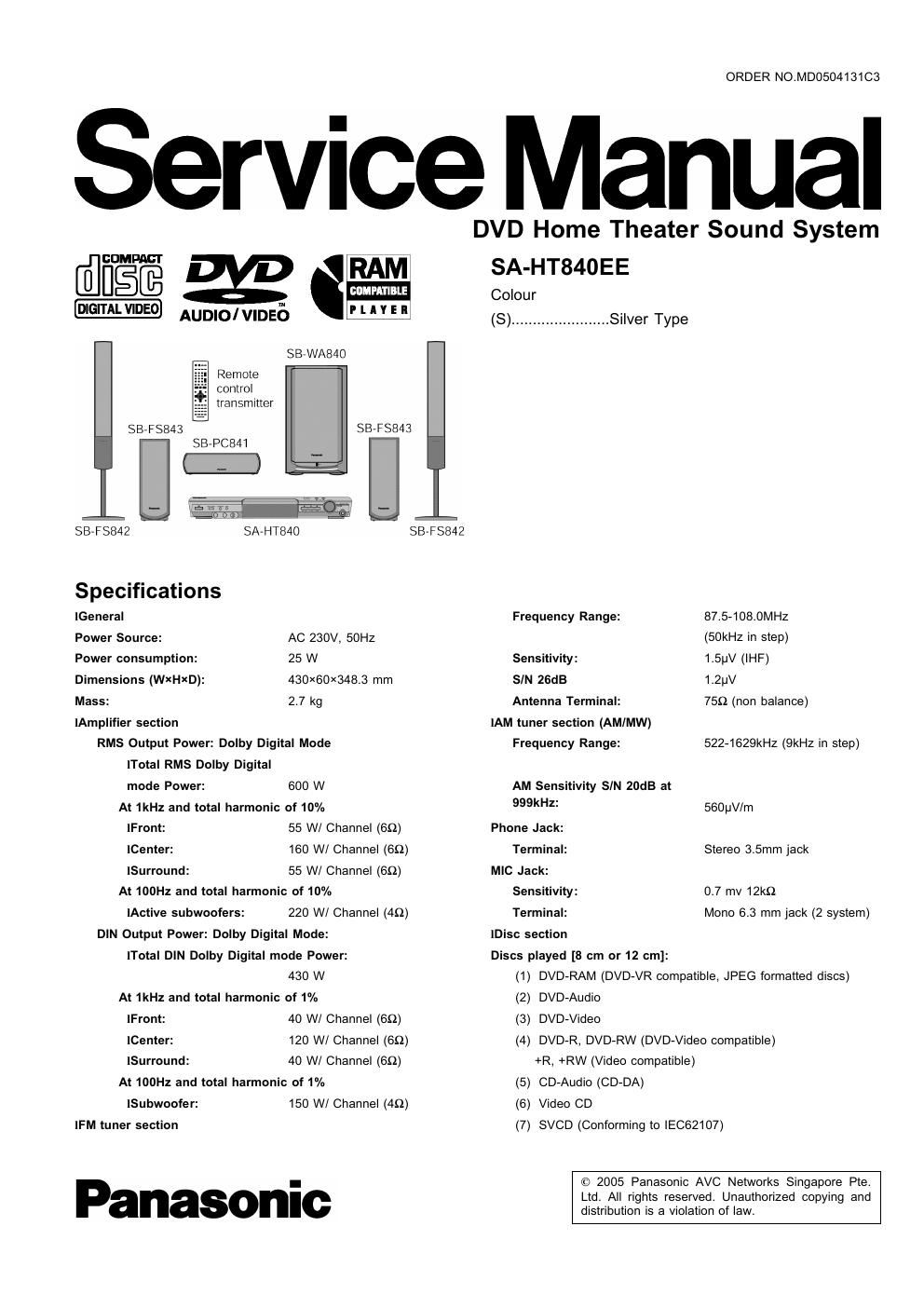

Page 1

ORDER NO.MD0504131C3

Service Manual

DVD Home Theater Sound System

[filfigfi E RAM SA-HT840EE
Colour
m AUDIO/VIDEO 7' L E "i (3) .Silver Type
SBVWA840
Remote
control
transmitter
SB-F8843 SBVFSB4S
SB-PC841 '
{-1- ._.
SB~FSS42 SA-HT84O SB-FSB42
Specifications
lGeneral Frequency Range: 87.5-108.0MHZ
Power Source: AC 230V, 50Hz (50kHz in step)
Power consumption: 25 W Sensitivity: 1.5pV (IHF)
Dimensions (WXHXD): 430><60><3483 mm SIN 26dB 1.2pV
Mass: 2.7 kg Antenna Terminal: 750 (non balance)
lAmplifier section lAM tuner section (AMIMW)
RMS Output Power: Dolby Digital Mode Frequency Range: 522-1629kHz (9kHz in step)
lTotal RMS Dolby Digital
mode Power: 600 W AM Sensitivity SIN 20dB at
At 1kHz and total harmonic of 10% 999kHz= 560pV/m
[Front 55 WI Channel (6(2) Phone Jack:
lCenter: 160 WI Channel (69) Terminal: Stereo 3.5mm jack
lSurround: 55 WI Channel (6(2) MIC Jack:
At 100Hz and total harmonic of 10% Sensitivity: 0.7 mv 12k§2
[Active subwoofers: 220 WI Channel (49) Terminal: Mono 6.3 mm jack (2 system)
DlN Output Power: Dolby Digital Mode: lDisc section
lTotal DIN Dolby Digital mode Power: Discs played [8 cm or 12 cm]:
430 W (1) DVD-RAM (DVD»VR compatible, JPEG formatted discs)
At 1kHz and total harmonic of 1% (2) DVD-Audio
[Front 40 WI Channel (6(2) (3) DVD-Video
lCenter: 120 WI Channel (69) (4) DVD-R, DVD-RW (DVD-Video compatible)
lSurround: 40 WI Channel (60) +R, +RW (Video compatible)
At 100Hz and total harmonic of 1% (5) CD»Audio (CD-DA)
lSubwoofer: 150 WI Channel (49) (6) Video CD
lFM tuner section (7) SVCD (Conforming to |EC62107)

© 2005 Panasonic AVC Networks Singapore Pte.

I
Ltd. All rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-HTRAD EE

(8) CD-R/CD-RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG
formatted discs)

(9) MP3NVMA
lMaximum number of recognizable audio and picture contents
and groups:

4000 audio and picture
contents and 400 groups

lCompatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
(10) JPEG

lMaximum number of recognizable audio and picture contents
and groups:

4000 audio and picture
contents and 400 groups

lExif Ver 2.1 JPEG Baseline files
lPicture resolution: between 320 x 240 and 6144 x 4096
pixels (sub sampling is 4:2:2 or 422:0)

(11) HighMAT Level 2 (Audio and Image)

Pick up:
Source of light beam: Semiconductor Laser
Wavelength:
lCD: 785nm
lDVD: 662nm

Laser power: CLASS 2/ CLASS 3A

Audio output (DISC):
Number of channels: 5.1 ch (FL, FR, C, SL, SR,

SW)

Audio performance (measured at REC OUT terminal):
Frequency response:

DVD (linear audio): 10 Hz-22 kHz (48 kHz

sampling)
10 Hz-44 kHz (96 kHz
sampling)
DVD-Audio: 10 HZ-88 kHz (192 kHz
sampling)
CD-Audio: 10 Hz-20 kHz
SIN ratio:
CD-Audio: 95 dB
Dynamic range:
DVD (linear audio): 95 dB
CD-Audio: 93 dB
Total harmonic distortion:
CD-Audio: 0.005 %

lVideo section
Video system:

Signal system: PAL 625/50, PAL 525/60,

NTSC
Composite video output:
Output level: 1 Vp-p (75 Q)
Terminal: Pin jack (1 system)

Scart jack (1 system)
S-video output:

Y output level: 1 Vp-p (75 Q)

C output level: PAL; 0.3Vp-p (75 Q)

NTSC; 0.286 Vp-p (75 9)

Terminal S terminal (1 system)
Scart jack (1 system)

Component video output (480PI480l):

Y output level: 1 Vp-p (75 9)
Pa output level: 0.7 Vp-p (75 9)
PR output level: 0.7 Vp-p (75 9)

Terminal: Pin jack (Y: green, PE: blue,

PR: red) (1 system)

RGB video output:
R output level: 0.7 Vp-p (75 9)

0.7 Vp-p (75 9)
0.7 Vp-p (75 Q)

Scart jack (1 system)

G output level:
B output level:

Power consumption in standby mode:
approx 0.9W
Note:
1. Specifications are subject to change without notice.
Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Solder:
This model uses lead free solder (PbF).

System SC-HT840EE
Main unit SA-HT840EE
Speaker system SB-HT84OGC
Active subwoofer SB-WA840EE
Speaker system SB-HT84OGC
Front speakers SB-FSS4ZGC
Center speaker SB-PC841 GC
Surround speakers SB-FSS43GC

MPEG Layer-3 audio decoding technology licensed from Fraunhoter
IIS and Thomson multimedia.

Windows Media, and the Windows logo are

trademarks. or registered trademarks of .
Microsoft Corporation in the United States and/ .
or other countries. ..~
WMA is a compression tormat developed by DE gm h,
Microsoft Corporation. lt achieves the same mm
sound quality as MP3 with a file size that is Media

smaller than that of MP3.

HIGH
m

HighMAT and the HighMAT logo are either
trademarks or registered trademarks of
Microsoft Corporation in the United States and/

or other countries.
I Built-in decoders n | c l T A |.
You can play discs with these symbols. DU
0 I o I T A L
S U R R 0 U N D
