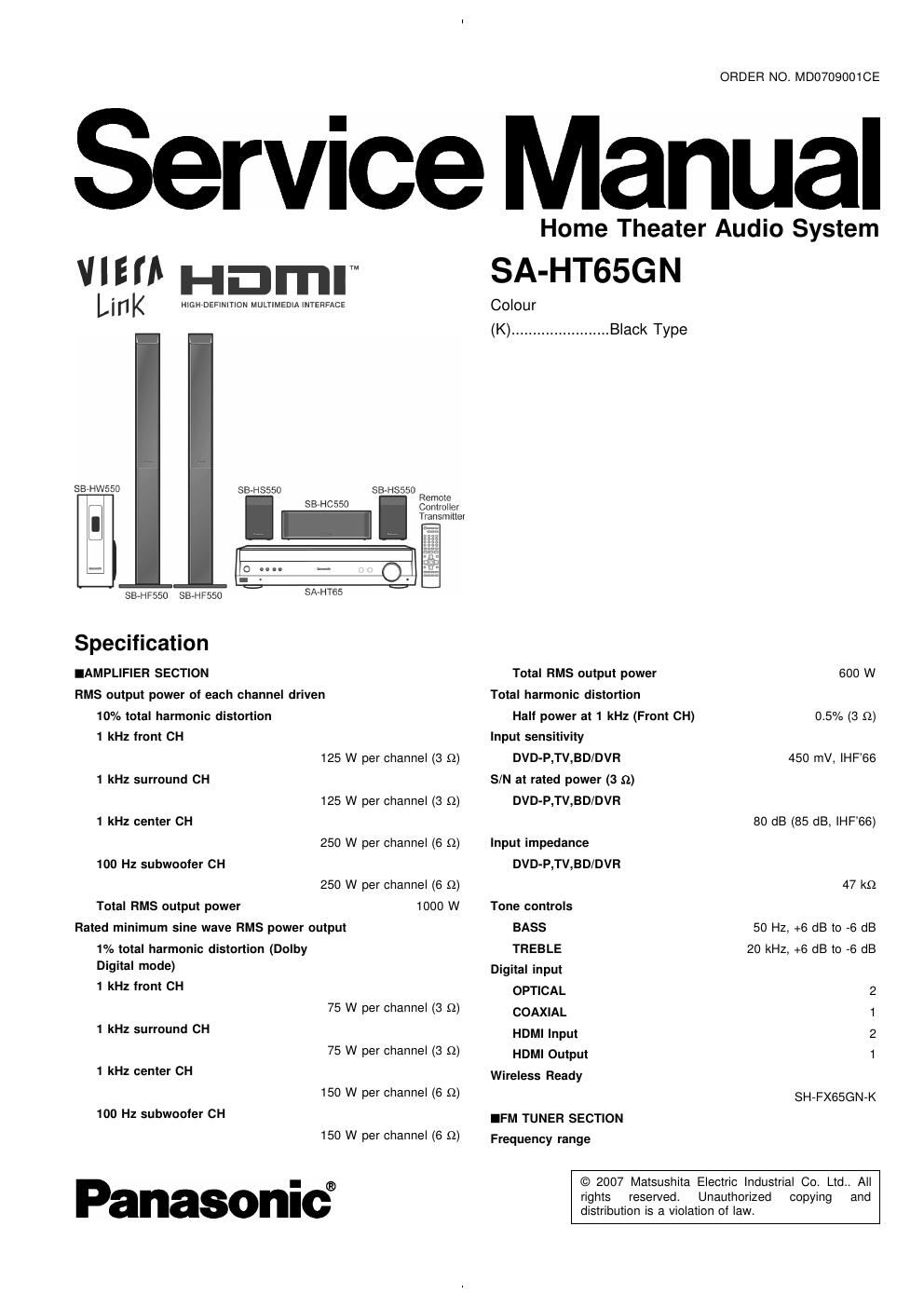

rHTGSGN

87.50 MHZ to 108.00 MHZ

Sensitivity
S/N 30 dB 1.9 [JV/75 fl
S/N 26 dB 1.8 [AV/75 fl
S/N 20 dB 1.6 pV/75 £2
IHF usable sensitivity (IHFSB) 2.2 pV/75 £2
IHF 46 dB stereo quieting sensitivity 22 pV/75 Q
Total Harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
MONO 60 dB (71 dB, IHF)
STEREO 58 dB (65 dB, IHF)

Frequency response
20 Hz to 15 kHZ, +1 dB, -2 dB

Image rejection at 98 MHz 40 dB
IF reiection at 98 MHz 70 dB
Stereo separation (1 kHz) 40 dB

Antenna terminal
IAM TUNER SECTION
Frequency range

75 n (unbalanced)

522 kHz to 1611 kHz (9 kHz steps)
530 kHz to 1620 kHz (10 kHz steps)

Sensitivity 500 pV/m

Selectivity (at 999 kHz) 30 dB
IGENERAL

Power supply

AC 230 V10 240 V, 50 Hz
Power consumption 135 W
Dimensions (W x H x D)

430 mm x 105 mm x 388 mm

Mass approx. 4.1 kg
Power consumption in standby mode: 1 W
Notes:

1.Specifications are subject to change without notice.
2.Total harmonic distortion is measured by the digital spectrum

analyzer.
ISVSTEM
System SC-HT65GN
AV Control Receiver SA-HT65GN
Front Speaker SB-HF55OE
Surround Speaker SB-HSS5OE
Center Speaker SB-HC55OE
Subwoofer SB-HW550E

Notes:

SB-PT550E consists of SB-HF550E(X2), SB-HSS50E(X2), SB-
HC550E(X1)
