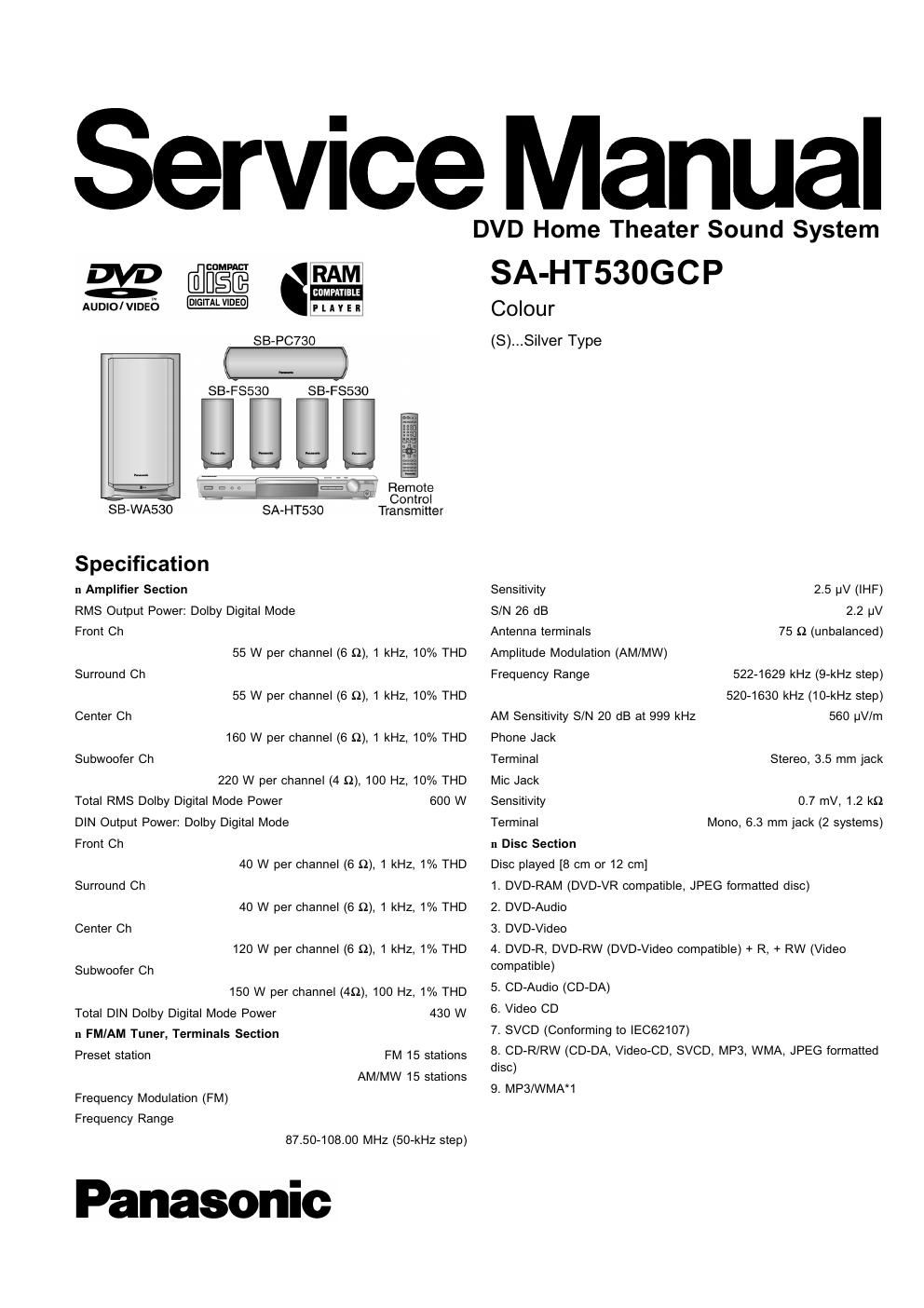

Panasonic sa ht 530 gcp service manual

Page 2

SA-HTSSD GC P

~ Compatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
10. JPEG1
~ Exif Ver 2.1 JPEG Baseline files
- Picture resolution: between 320 x 240 and 6144 x 4096 pixels
(sub sampling is 4:22 or 4:2:0)
11. HighMAT Level 2 (Audio and Image)
1 The total combined maximum number of recognizable audio and
picture contents and groups: 4000 audio and picture contents and 400
groups.
Pick up
CD 785 nm
DVD 662 nm
CLASS 2/CLASS 3A

Wavelength

Laser power

Audio output (Disc)
Number of channels 5.1ch (FL, FR, C, SL, SR, SW)
n Video Section

Video System

Signal system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 Q)
Terminal Pin jack (1 system)
S-video output
Y output level 1 Vp-p (75 Q
PAL; 0.3 Vp-p (75 9

NTSC; 0.286 Vp-p (75 o

C output level

Terminal

Component Video Output (480p/480i)

Y output level

)
)
)
8 terminal (1 system)

1 Vp-p (75 Q)

PE output level 0.7 Vp-p (75 Q)

PR output level 0.7 Vp-p (75 0)
Terminal

Pin jack (Y: green, PB: blue, PR: red) (1 system)
n General
Power Supply
AC 110/127/220230/240 V, 50/60 HZ

25 w (SA-HT530),
250 w (SB-WA530)

430 x 60 x 348.3 mm
2.7 kg (SA-HT530)
+5 °c to +35 °c

Power consumption

Dimensions (W x H x D)
Mass
Operating temperature range
Operating humidity range

5 /0 to 90 % RH (no condensation)
Power consumption in standby mode: approx. 0.9 W
" Rating with low cut filter equipped amplifier
n System
SC-HT530 (GCP)

Main unit:

Speaker system:
Center speaker:
Surround speakers:
Active subwoofer:

SA-HT530 (GCP)
SB-HT530 (EB)
SB-PC730 (P)
SB-Fs530 (EB)
SB-WA530 (GC)

Note:
1.8pecifications are subject to change without notice. Mass and
dimensions are approximate.
2.Total harmonic distortion is measured by the digital spectrum
analyzer.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

li does not contain warnings or cautions to adVise non-technical individuals of potential dangers in attempting to serVIce a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

Page Page

1 Before Use ------------------------------------------------------------------------------ 3 8.2. Cautions to Be Taken During Replacement of Optical
2 Use of Active Subwoafer -------------------------------------------------------- 4 Pickup ------------------------------------------- 9
2.1. Checking Main Unit when Active Subwoofer is Used ------- 4 8.3. ------------ Grounding for Preventing Electrostatic Destruction

2.2. Checking Main Unit Using Power Jig-

3 Before Repair and Adjustment

9 Precaution of Laser Diode

4 SAFETY PRECAUTIONS ------- 10 Accessories ................... _.11
4-1- GENERAL GUIDELINES ------------------------------------------------ 5 11 Remote Control Reference --------------------------------------------------- 12

5 Handling the Lead Solder ------------------------------------------------------- s 12 Disc information ................................................................... 13
5.1. About lead free solder (PbF) ------------------------------------------ 5 13 About HighMAT ..................................................................... 17

6 Protection Circuitry ----- 13_1, Whatl] HighMAT? .............................................. 17
7 Prevention of Electra Static Discharge (ESD) to 13.2_ Why take advantage of HighMat? ................................. 13
Electrostatically Sensitive (ES) Devices --------------------------------- 7 13,3_ Benefits of HighMat? .................................................... 18

8 Cautions to Be Taken When Handling Optical Pickup ----------- 8 14 Optical Pickup Self-Diagnosis and Replacement Procedure-21
8.1. Handling Optical Pickup ------------------------------------------------- 8 14.1. Self-diagnosis -------------------------------------------------------------- 21
