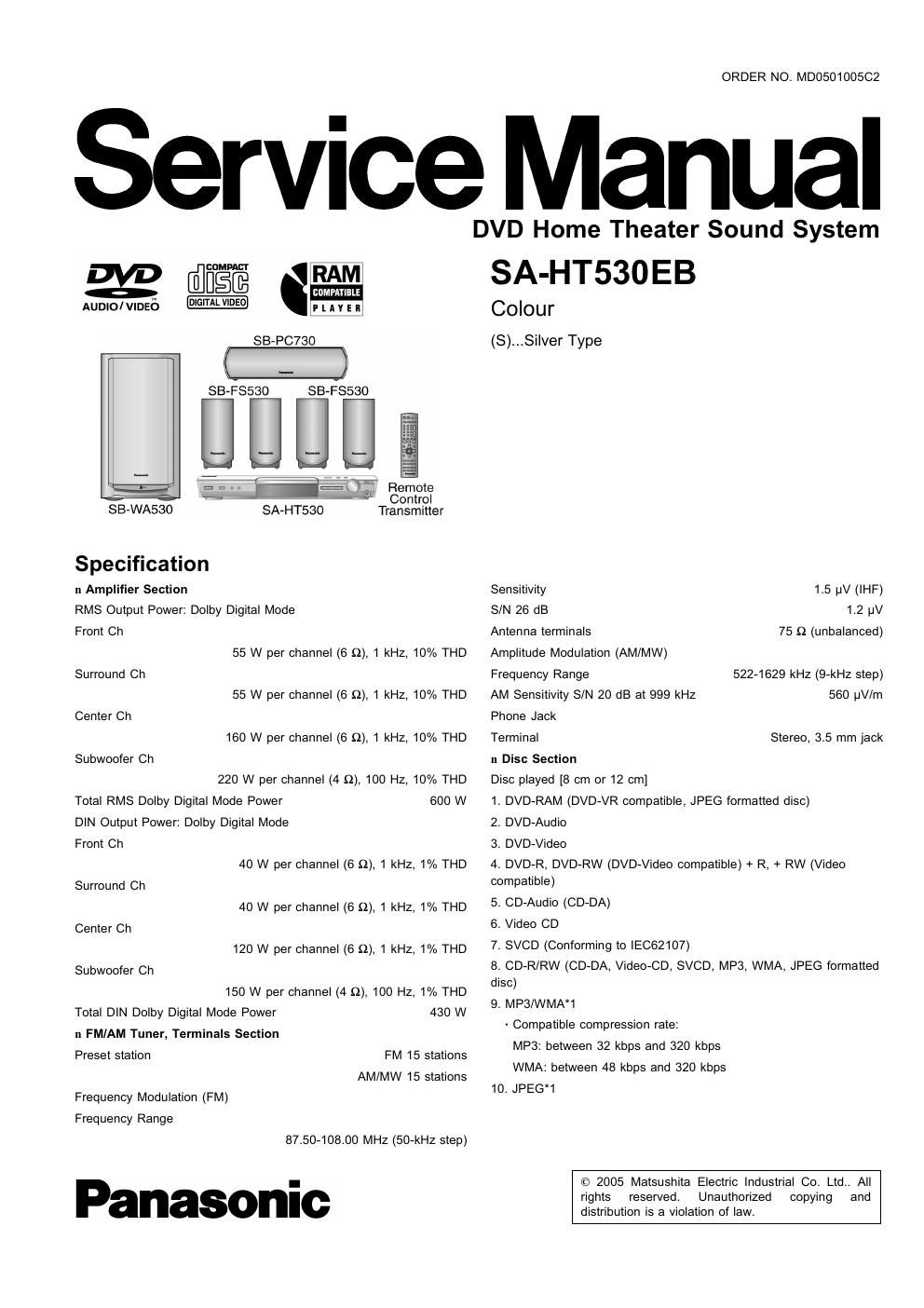

Panasonic sa ht 530 eb service manual

Page 2

SA-HTSSOEB

- Exif Ver 2.1 JPEG Baseline files
- Picture resolution: between 320 x 240 and 6144 x 4096 pixels
(sub sampling is 4:2:2 or 4:2:0)
11. HighMAT Level 2 (Audio and Image)

1 The total combined maximum number of recognizable audio and
picture contents and groups: 4000 audio and picture contents and 400
groups.

Pick up
CD 785 nm
DVD 662 rim
CLASS 2/CLASS 3A

Wavelength

Laser power
Audio output (Disc)
Number of channels 5.1ch (FL, FR, C, SL, SR, SW)
it Video Section
Video System
Signal system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 0)
Terminal Pin jack (1 system)
Scart jack (1 system)
S-video output
Y output level 1 Vp-p (75 Q)
C output level PAL; 0.3 Vp-p (75 9)
NTSC; 0.286 Vp-p (75 9)
Terminal S terminal (1 system)
Scart jack (1 system)
Component Video Output (480p/480i)
Y output level 1 Vp-p (75 $1)
0.7 Vp-p (75 g)

0.7 Vp-p (75 9)

PB output level
PR output level
Terminal

Pin jack (Y: green, PE: blue, PR: red) (1 system)
RGB video output
R output level 0.7 Vp-p (75 9)
0.7 Vp-p (75 o)
0.7 Vp-p (75 o)

Scart jack (1 system)

G output level
B output level
Terminal

n General
Power Supply AC 230-240 V, 50 Hz

25 w (SA»HT530),
250 w (SB-WA530)

430 x so x 348.3 mm
2.7 kg (SA-HT530)
+5 °c to +35 °c

Power consumption

Dimensions (W x H x D)
Mass
Operating temperature range
Operating humidity range
5 % to 90 % RH (no condensation)
Power consumption in standby mode: approx. 0.7 W
Rating with low cut filter equipped amplifier
n System
SC-HT530 (EB) Main unit: SA»HT530 (EB)
Satellite speakers: SB-HT530 (EB)
Active subwoofer: SB»WA530 (EB)
Satellite speakers: SB-HT530 (EB)
Front speakers: SB-FS530 (EB) x 2
Surround speakers: SB-FS530 (EB) x 2
Center speaker: SB-PC730 (P-S1) x 1

Note:
1.8pecifications are subject to change without notice. Mass and
dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to adVIse non-technical Individuals of potential dangers in attempting to serVIce a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

1 Caution for AC Mains Lead --
2 Use of Active Subwoofer--

2.1. Checking Main Unit when Active Subwoofer is Used ------- 5

2.2. Checking Main Unit Using Power Jig .............................. 5
3 Before Repair and Adjustment ............................................... 5
4 SAFETY PRECAUTIONS --------------------------------------------------------- a
4.1. GENERAL GUIDELINES ................................................ 5
5 Handling the Lead Solder ....................................................... 7

5.1. About lead free solder (PbF)-
6 Protection Circuitry --

7 Prevention of Electro Static ischarge (ESD) to
Electrostaticaily Sensitive (ES) Devices ................................. 3
8 Cautions to Be Taken When Handling Optical Pickup ----------- 9

8.1. Handling Optical Pickup ------------------------------------------------- 9

Page

8.2. Cautions to Be Taken During Replacement of Optical
Pickup ------------------------------------------------------------------------- 10
8.3. ------------ Grounding for Preventing Electrostatic Destruction
----------------------------------------------------------------------------------- 10
9 Precaution of Laser Diode ---------------------------------------------------- 11
10 Accessories -------------------------------------------------------------------------- 12
11 Remote Control Reference --------------------------------------------------- 13
12 Disc information ------------------------------------------------------------------- 14

13 About HighMAT -------------
13.1. What]:| HighMAT?
13.2. Why take advantage of HighMat?
13.3. Benefits of HighMat? ---------------------------------------------------- 19

14 Optical Pickup Self-Diagnosis and Replacement Procedure-22

------------------------------------------------------- 22

14.1. Self»diagnosis---
