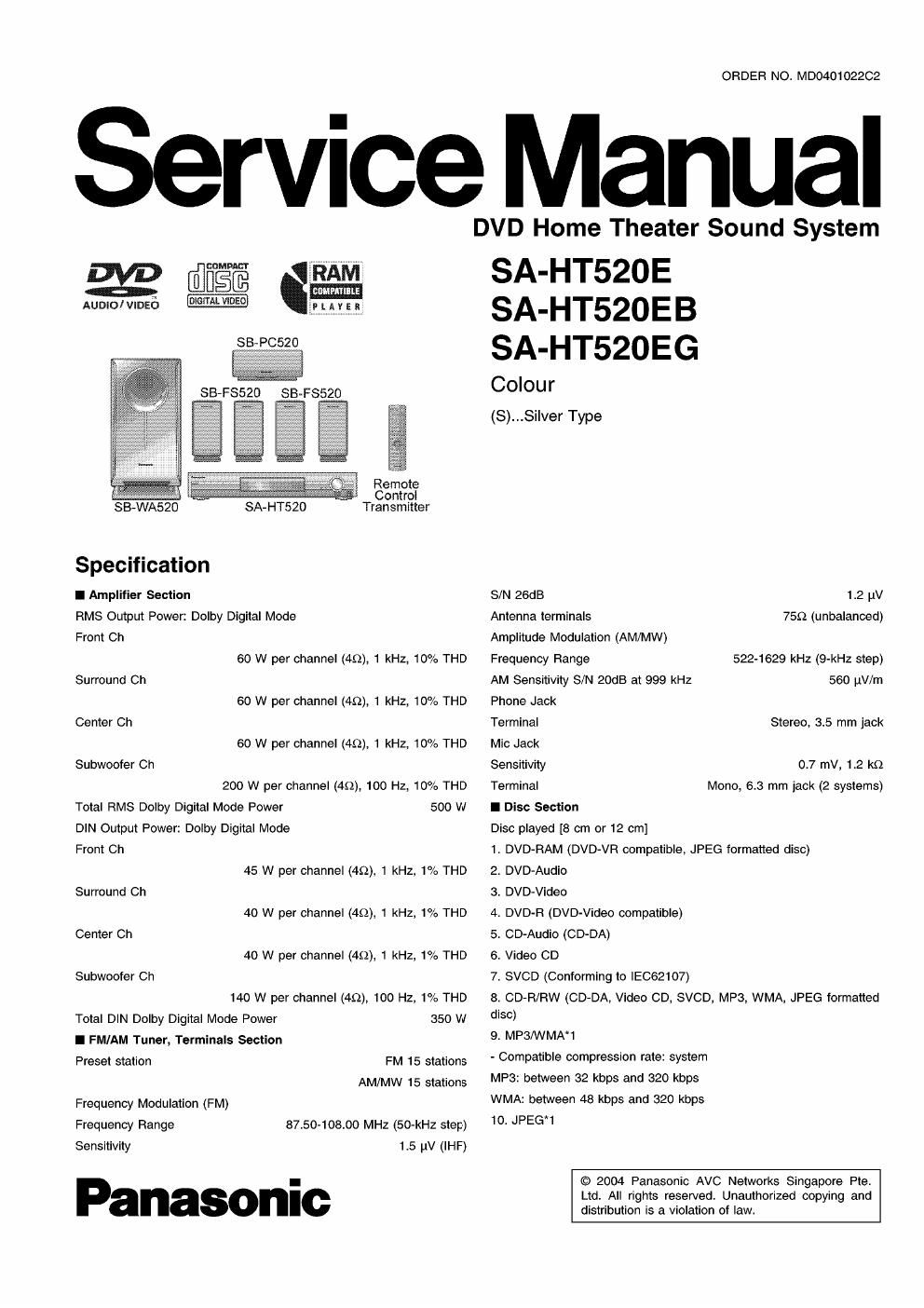

Panasonic sa ht 520 e service manual
This is the 103 pages manual for panasonic sa ht 520 e service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sa ht 520 e service manual (Ocr-read)
Page 2
SA-HTSZDE / SA-HT520EB ISA-HTSZIIEG
- Exif Ver 2.1 JPEG Baseline files
- Picture resolution: between 320 x 240 and 6144 x 4096 pixels (sub
sampling is 4:2:2 or 42:0)
11. HighMAT Level 2 (Audio and Image)
*1 The total combined maximum number of recognizable audio and
picture contents and groups: 4000 audio and picture contents and 400
groups.
Pickup
Wavelength (DVD/CD)
Laser power
662 nm/785 nm
CLASS 2/CLASS 3A
Component Video Output (480F/480l)
Y output level
PB output level
PR output level
Terminal
RGB video output
Fl output level
G output level
B output level
1 Vp-p (75:2)
0.7 Vp-p (759)
0.7 Vp-p (7552)
Pin jack (Y: green, PB: blue,
PR: red) (1 system)
0.7 Vp-p (759)
0.7 Vp-p (759)
0.7 Vp-p (75(2)
Audio output (Disc)
Number of channels 5.1 ch (FL, FR, 0, SL, SR, SW)
Audio performance (measured at LINE OUT terminal)
1) Frequency response
- DVD (linear audio) 4 Hz - 22 kHz (48 kHz sampling)
4 Hz - 44 kHz (96 kHz sampling)
- DVD-Audio 4 Hz - 88 kHz (192 kHz
sampling)
- CD-Audio 4 HZ - 20 kHZ
2) S/N ratio
- CD-Audio 95 dB
3) Dynamic range
- DVD (linear audio) 95 dB
- CD-Audio 93 dB
4) Total harmonic distortion
- CD-Audio 0.005%
I Video Section
Video System
Signal system
Composite video output
Output level
Terminal
PAL625/50, PAL525/60, NTSC
1 Vp-p (75 9)
Pin jack (1 system)
Scan jack (1 system)
S-video output
Y output level 1 Vp-p (75 9)
PAL; 0.3 Vp-p (75 9)
NTSC; 0.286 Vp-p (759)
S terminal (1 system)
Scan jack (1 system)
C output level
Terminal
Terminal Scart jack (1 system)
I General
Power Supply (for E & EB)
Power Supply (for EG)
Power consumption
AC 230-240 V, 50 Hz
AC 230 V. 50 HZ
25 w (SA-HT520),
220 w (SB-WASZO)
430 x 68 X 359.2 mm
3.2 kg
Dimensions (W x H x D)
Mass
Power consumption in standby mode (Subwoofer): 0.7 W
I System
SC-HT520 (E) Main unit: SA-HT520 (E)
Satellite speakers: SB-HT520 (P)
Active subwoofer: SB-WA520 (EG)
Main unit: SA-HT520 (EB)
Satellite speakers: SB-HT520 (P)
Active subwoofer: SB-WA520 (EB)
Main unit: SA-HT52O (EG)
Satellite speakers: SB-HT520 (P)
Active subwoofer: SB-WA520 (EG)
SC-HT520 (EB)
SC-HT520 (EG)
Satellite speakers: SB-HT520 (P)
Front speakers: SB-Fsszo (P) x 2
Surround speakers: sa-Fsszo (P) x 2
Center speaker: se-Pcszo (P) x 1
Note:
1.Specifications are subject to change without notice. Mass and
dimensions are approximate.
2.Total harmonic distortion is measured by the digital spectrum
analyzer.
A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
CONTENTS
Page
1 Caution for Ac Mains Lead ..................................................... 4
2 Use of Active Subwoofer ........................................................ 5
2-1. Checking Player when Active Subwoofer is Used ............ 5
3 Before Repair and Adiustment
4 SAFETY PRECAUTIONS -------
4.1. GENERAL GUIDELINES ------------------------------------------------ s
Page
5 Handling the Lead Solder ------------------------------------------------------- 7
5.1. About lead free solder (PbF) ------------------------------------------ 7
6 Protection circuitry -------------------------------------------------------------- 7
7 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (E5) Devices --------------------------------- 8
8 Cautions to Be Taken When Handling Optical Pickup ----------- 9
