Page 1

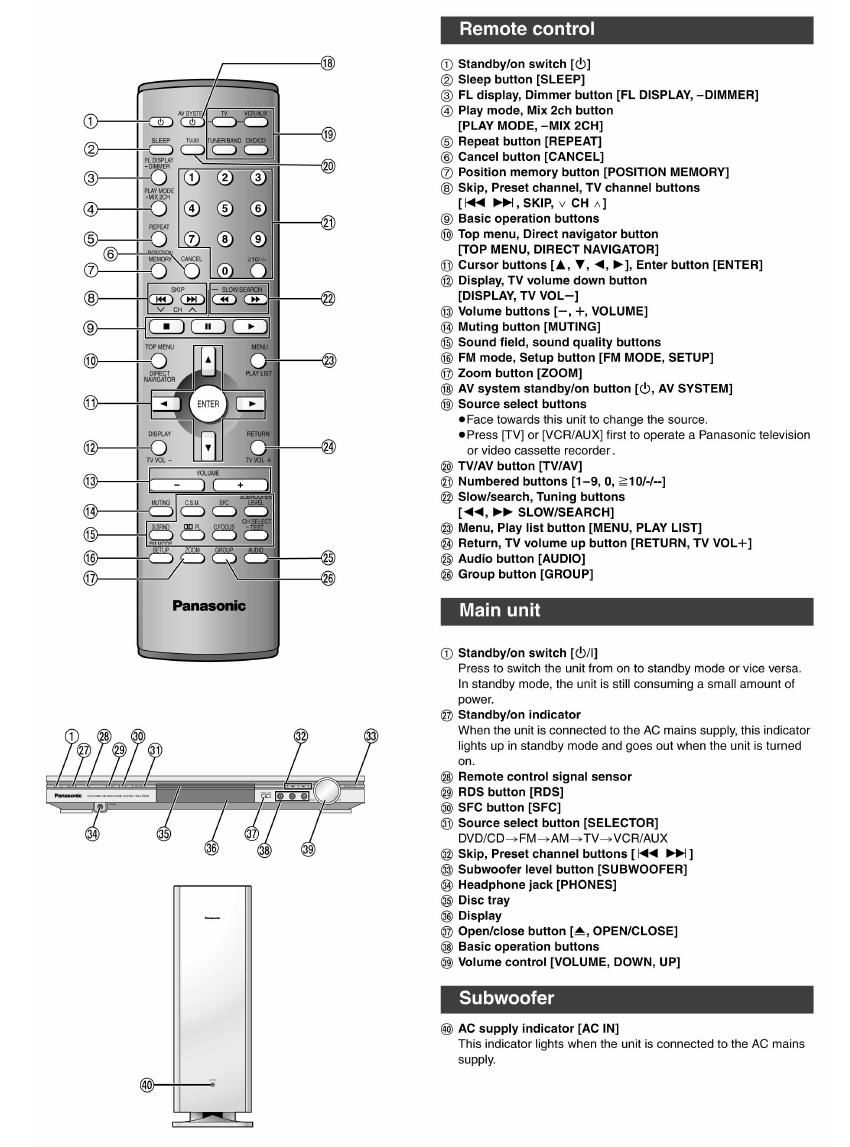

w SVSYE

@-

iiiiiiiii@itiiiii

mote C Di
(D Standby/on switch [(5]
® Sleep button [SLEEP]
@ FL display, Dimmer button [FL DISPLAY, --DIMMER]
® Play mode, Mix 2ch button
[PLAY MODE, -M|X 26H]
© Repeat button [REPEAT]
© Cancel button [CANCEL]
® Position memory button [POSITION MEMORY]
Skip, Preset channel, TV channel buttons
[[44 »i,SKIP, v CH A]
© Basic operation buttons
Top menu, Direct navigator button
[TOP MENU, DIRECT NAVIGATOR]
® Cursor buttons [A, V, 1, >], Enter button [ENTER]
® Display, TV volume down button
[DISPLAY, TV VOL-]
® Volume buttons [7, +, VOLUME]
Muting button [MUTING]
@ Sound field, sound quality buttons
FM mode, Setup button [FM MODE, SETUP]
® Zoom button [ZOOM]
AV system standby/on button [(5, AV SYSTEM]
Source select buttons
I Face towards this unit to change the source.
I Press UV] or [VCR/AUX] lirst to operate a Panasonic television
or video cassette recorder.
@ TVIAV button rrvIAV]
® Numbered buttons [1 -9, D, :10I-I--]
® Slow/search, Tuning buttons
[44, >> SLOW/SEARCH]
@ Menu, Play list button [MENU, PLAY LIST]
(3 Return, TV volume up button [RETURN, TV VOL+]
@ Audio button [AUDIO]
® Group button [GROUP]

® Standby/on switch [Lb/I]
Press to switch the unit from on to standby mode or vice versa
In standby mode, the unit is still consuming a small amount 01
power.

@ Standby/on indicator
When the unit is connected to the AC mains supply, this indicator
lights up in standby mode and goes out when the unit is turned
on.

@ Remote control signal sensor

@ RDS button [RDS]

@ SFC button [SFC]

® Source select button [SELECTOR]
DVD/CDaFMAAMaTVaVCR/AUX

® Skip, Preset channel buttons[l<< M]

® Subwoofer level button [SUBWOOFER]

® Headphone iack [PHONES]

«33 Disc tray

(33 Display

® Open/close button [A, OPEN/CLOSE]

® Basic operation buttons

® Volume control [VOLUME DOWN, UP]

AC supply indicator [Ac IN]
This indicator lights when the unit is connected to the AC mains
supply.
