Panasonic sa he 75 owners manual

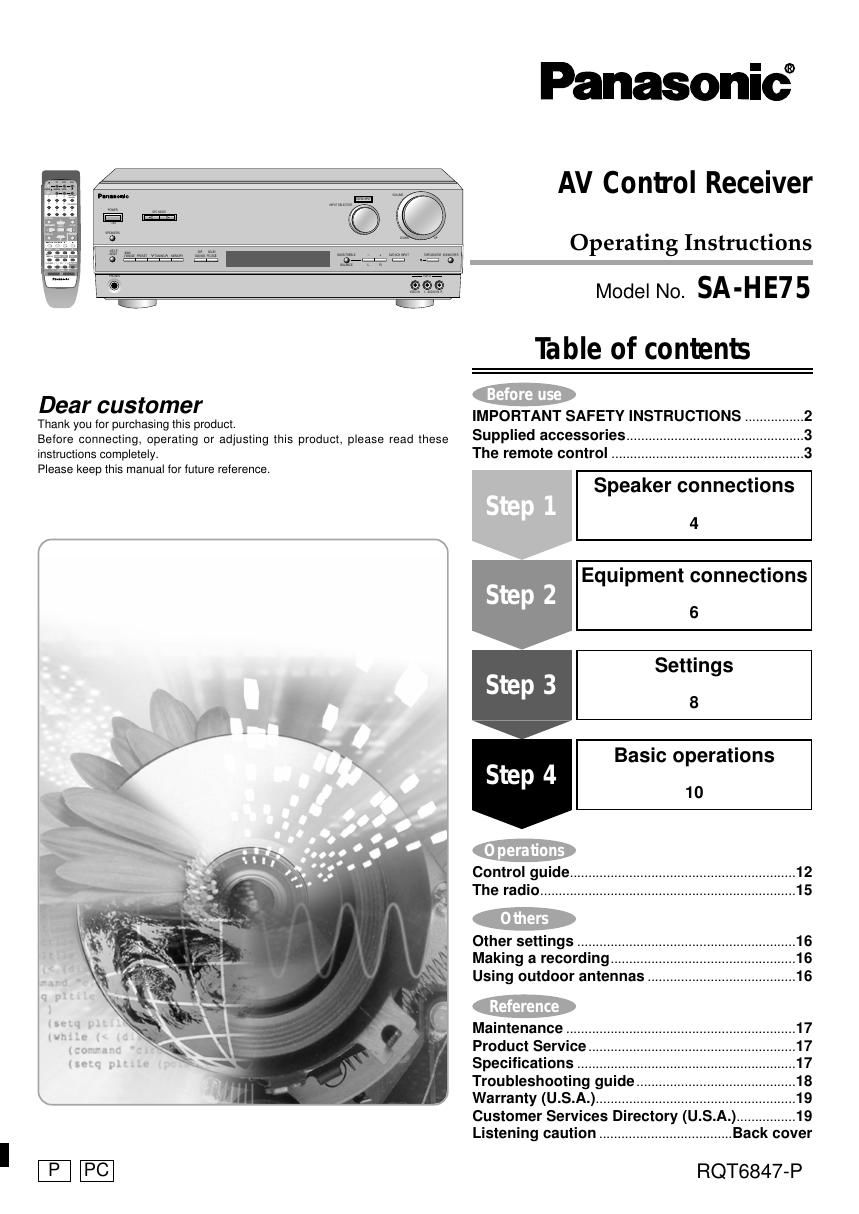

This is the 20 pages manual for panasonic sa he 75 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sa he 75 owners manual (Ocr-read)
Page 1
2 RQT6847 IMPORTANT SAFETY INSTRUCTIONS Safety 1. Power source-Connect the unit to a power source of the type described in these instructions or as marked on the unit. 2. Polarization-The unit is equipped with a polarized power plug where one blade is wider than the other. This safety feature ensures that the plug fits into your household AC outlet only one way. If the plug doesnt fit one way, try reversing it. If the plug still doesnt fit, contact an electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the plug. 3. Power cord protection-Route the AC power supply cord so that it will not be walked on or pinched by items placed on or against it. Never take hold of the plug or cord with wet hands. Always grasp the plug body firmly when connecting and disconnecting it. 4. Overloading-When connecting the AC power supply cord, be careful not to overload the household AC outlet, extension cord, or outlet from any other device as this can result in fire or electric shock. 5. Nonuse periods-Turn the unit off when it is not in use. Unplug the unit from the household AC outlet if it is not to be used for a long time. Unplug the unit during lightning storms. 6. Attachments and accessories-Use only the attachments and accessories recommended in these operating instructions. Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed below. Keep these operating instructions handy for future reference. Installation Environment ELECTRIC SERVICE EQUIPMENTGROUND CLAMPANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC-NATIONAL ELECTRICAL CODE 1. Water and moisture -Do not use the unit near water, such as near a bathtub or swimming pool. Avoid damp basements. 2. Heat -Situate the unit away from heat sources, such as radiators. Do not situate where temperatures fall below 5°C (41°F) or rise above 35°C (95°F). 3. Power lines -Take care when setting up an outdoor antenna that it is not near overhead power lines, electric lights, or electrical circuits, and that there is no danger of the antenna falling on power lines, electric lights, or electrical circuits. When installing an outdoor antenna, take extreme care not to touch such power lines or circuits, as contact with them can be fatal. Placement 1. Ventilation -Situate the unit so that it receives proper ventilation. Do not install in a confined space such as a bookcase or cabinet. Allow at least 10 cm (4 inches) clearance from the rear of the unit. To prevent the risk of electric shock or fire due to overheating ensure curtains and other materials do not obstruct the units ventilation. 2. Foreign material -Ensure objects and liquids do not get into the unit. Avoid exposing the unit to excessive smoke, dust, mechanical vibration, and shock. 3. Magnetism -Situate the unit away from equipment and devices that generate strong magnetic fields. 4. Stacking -Do not place heavy objects on top of this unit. 5. Surface -Place the unit on a flat, level surface. 6. Carts and stands -Use the unit only with carts and stands recommended by the manufacturer. Move carts with care. Sudden stops, excessive force, and uneven surfaces can cause carts to overturn. 7. Wall and ceiling mounting -Do not mount the unit on walls or ceilings unless specified in the instructions. Maintenance (See page 17 for details.) Unplug the unit from the household AC outlet before cleaning. Clean with a damp cloth. Do not use abrasive pads, scouring powders, or solvents. Service 1. Damage requiring service -The unit should be serviced by qualified service personnel if: (a) The AC power supply cord or the plug has been damaged; or (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d) The unit does not operate normally or exhibits a marked change in performance; or (e) The unit has been dropped or the cabinet damaged. 2. Servicing -Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel. 3. Replacement parts -When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards. 4. Safety check -After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition. Before use 4. Outdoor antenna grounding -If you connect an outdoor antenna, ground the antenna system to protect against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1990, provides information about grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. Refer to this diagram.
Page 2
3 RQT6847 The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerousvoltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electricshock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Please check and identify the supplied accessories. 1 AC power supply cord (RJA0065-A) 1 AM loop antenna set (RSA0012-L) (AM loop antenna, antenna holder, screw) Use the numbers indicated in parentheses when asking for replacement parts. 1 FM indoor antenna (RSA0006-L) 2 Batteries 1 Remote control (EUR7702KK0) Supplied accessories Refer to the separate booklet, Remote Control Operation Guide, for remote control operation details. (Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site (http://www.panasonic.com). ¡Keep the transmission window and the units sensor free from dust.¡Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets. Remote control signal sensor Transmission window Use 7 meters (23 feet) POWER SFC MODE8 INPUT SELECTOR VOLUME DOWN UP SPEAKERS PHONES VCR 2VIDEO INL AUDIO IN R DSPSOUND MODEDOLBYPRO LOGIC2 -H E L P–RESET -BAND –FM MODE MEMORY PRESET2 TUNING 1 DVD 6CH INPUT TAPE MONITOR + –LR SUB WOOFER BASS/TREBLE BALANCE DIGITAL INPUT TVTUNER/BANDVCR TAPE CDDVD AUDIO 3 2 16> =10/ENTER5 4 90 8 7DIRECT TUNING/ DISC ENTER 3 2 1 4 Batteries ¡Insert so the poles (+ and –) match those in the remote control.¡Do not use rechargeable type batteries. The remote control WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. CAUTIONDo not place anything on top of this unit or block the heat radiation vents in any way. In particular, do not place tape decks or CD/DVD players on this unit as heat radiated from it can damage your software. (R6, AA, UM-3) Before use
