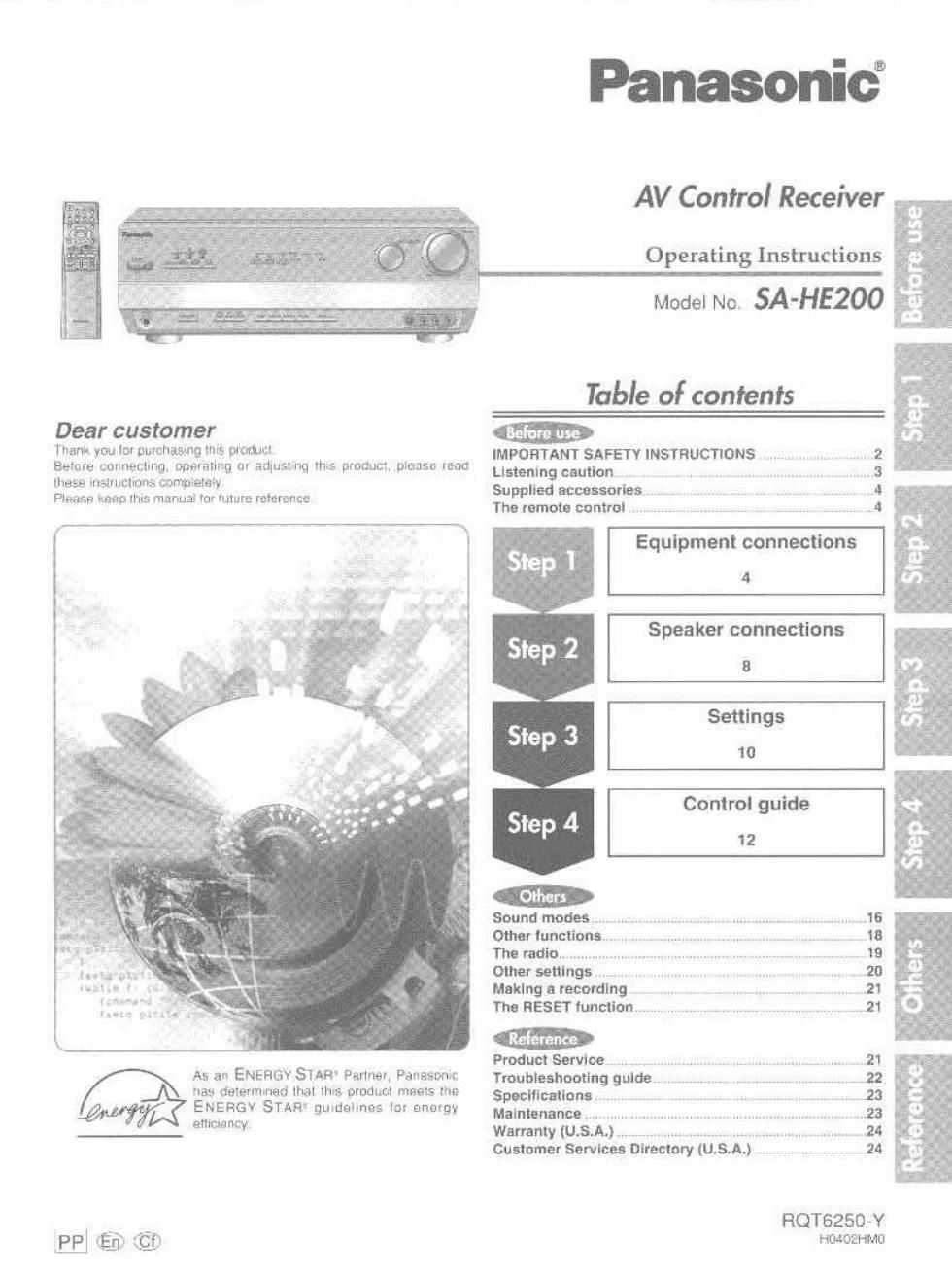

Page 1

Panasonic

AV Control Receiver

Operating Instructions

Model No. SA-HEZOO

Table of contents

Dear customer
6"ka '0' Duvohasmoms 9mm IMPORTANT SAFETY msmucnons 2
Befqre conneclmgx operating in adluurnq ms praducx. pruasu H300 Listening caution 3
[brass mt: mzliong oompseméy Su '

pphad accessories..__ .. .4

r O a .

Pinasn neeolhus manual for uiur reference The "mo comm. VVVVVVVVVVVV _ 4

Equipment connections
4

Speaker conneciions
8

Settings
1o

Control guide
12

Olhflluncliona
The radio .......
other settings. . .
Makingarecordlng. , W21
TmfiESETfuncflonw..m . . J1

Reference
Produc! Servlce ,

As an ENERGY STAR Farmer, Panasonic Troubleshooting sumo:
has delerm-ned that thus product meets the Speclflcstlons _ ,

W ENERGV STAR= gmdehnes far energy Malntenance IIIII
- 0 Warranty (u s A.) .r,
Customer Servlces Direciory (U S. A. )

HQTBZSU-Y
EB] (El?! (9 H0402HMO

Page 2

ROTSZSO

IMPORTANT SA FE TY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the safety precautions listed

below. Keep these operating instructions handy for future reference.

Safety

1. Power source-Connect the unit to a power source of the type
described in these instructions or as marked on the unit.

2. Polarization-The unit is equipped with a polarized power plug
where one blade is wider than the other, This safety feature
ensures that the plug fits into your household AC outlet only one
way. If the plug doesnt fit one way, try reversing it. If the plug
still doesn't fit, contact an electrician to replace the obsolete
outlet. Do not attempt to defeat the safety purpose of the plug.

3. Power cord protection-Route the AC power supply cord so
that it will not be walked on or pinched by items placed on or
against it. Never take hold of the plug or cord with wet hands.
Always grasp the plug body firmly when connecting and
disconnecting it.

4. Overloading-When connecting the AC power supply cord, be
careful not to overload the household AC outlet, extension cord,
or outlet from any other device as this can result in fire or electric
shock,

5. Nonuse periods-Turn the unit off when it is not in use. Unplug
the unit from the household AC outlet if it is not to be used for a
long time. Unplug the unit during lightning storms.

6. Attachments and accessories-Use only the attachments and
accessories recommended in these operating instructions.

lnstallatio

[ Placement [

1. Ventllatlon-Situate the unit so that it receives proper
ventilation. Do not install in a confined space such as a
bookcase or cabinet. Allow at least 10 cm (4 inches) clearance
from the rear of the unit. To prevent the risk of electric shock or
fire due to overheating ensure curtains and other materials do
not obstruct the unit's ventilation,

2. Foreign material-Ensure objects and liquids do not get into
the unit. Avoid exposing the unit to excessive smoke, dust,
mechanical vibration, and shock.

3. Magnetism-Situate the unit away from equipment and devices

that generate strong magnetic fields.

Stacking-Do not place heavy objects on top of this unit.

Surface-Place the unit on a flat, level surface.

Carts and stands-Use the unit only with carts

and stands recommended by the manufacturer.

Move carts with care. Sudden stops, excessive

force, and uneven surfaces can cause cans to

overturn. '

7. Wall and ceiling mounting-Do not mount the unit on walls or
ceilings unless specified in the instructions.

99'.

Environment

1. Water and moisture-Do not use the unit near water, such as
near a bathtub or swimming pool, Avoid damp basements,

2. Heat-Situate the unit away from heat sources, such as
radiators.

Do not situate where temperatures fall below 5°C (41°F) or rise
above 35°C (95°F),

3. Power lines-Take care when setting up an outdoor antenna
that it is not near overhead power lines, electric lights, or
electrical circuits, and that there is no danger of the antenna
falling on power lines, electric lights, or electrical circuits. When
installing an outdoor antenna, take extreme care not to touch
such power lines or circuits, as contact with them can be fatal.

4. Outdoor antenna grounding-if you connect an outdoor
antenna, ground the antenna system to protect against voltage
surges and built-up static charges, Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1990, provides information
about grounding of the mast and supporting structure. grounding
of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the
grounding electrode. Refer to this diagram.

/ ANTENNA
LEAD IN
WIRE

ANTENNA
DISCHARGE umr
(NEG SECTION BIO-20)

GnouNDING conoucrons
(NEE SECTION 810-21)

\ GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)

NEG-NATIONAL ELECTRICAL CODE

Maintenance

(See page 23 for details.)

Unplug the unit from the household AC outlet before cleaning.
Clean with a damp cloth.
Do not use abrasive pads. scouring powders, or solvents,

Service

. Damage requiring service-The unit should be serviced by
qualified service personnel it:

(a) The AC power supply cord or the plug has been damaged; or _

(b) Objects or liquids have gotten into the unit; or

(c) The unit has been exposed to rain; or

(d) The unit does not operate normally or exhibits a marked
change in performance; or

(e) The unit has been dropped or the cabinet damaged.

2. Servicing-Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other
servicing to authorized servicing personnel.

. Replacement parts-When parts need replacing ensure the

servicer uses pans specified by the manufacturer or pans that

have the same characteristics as the original parts.

Unauthorized substitutes may result in fire. electric shock, or

other hazards.

Safety check-After repairs or service, ask the servicer to

perform safety checks to confirm that the unit is in proper

working condition.
