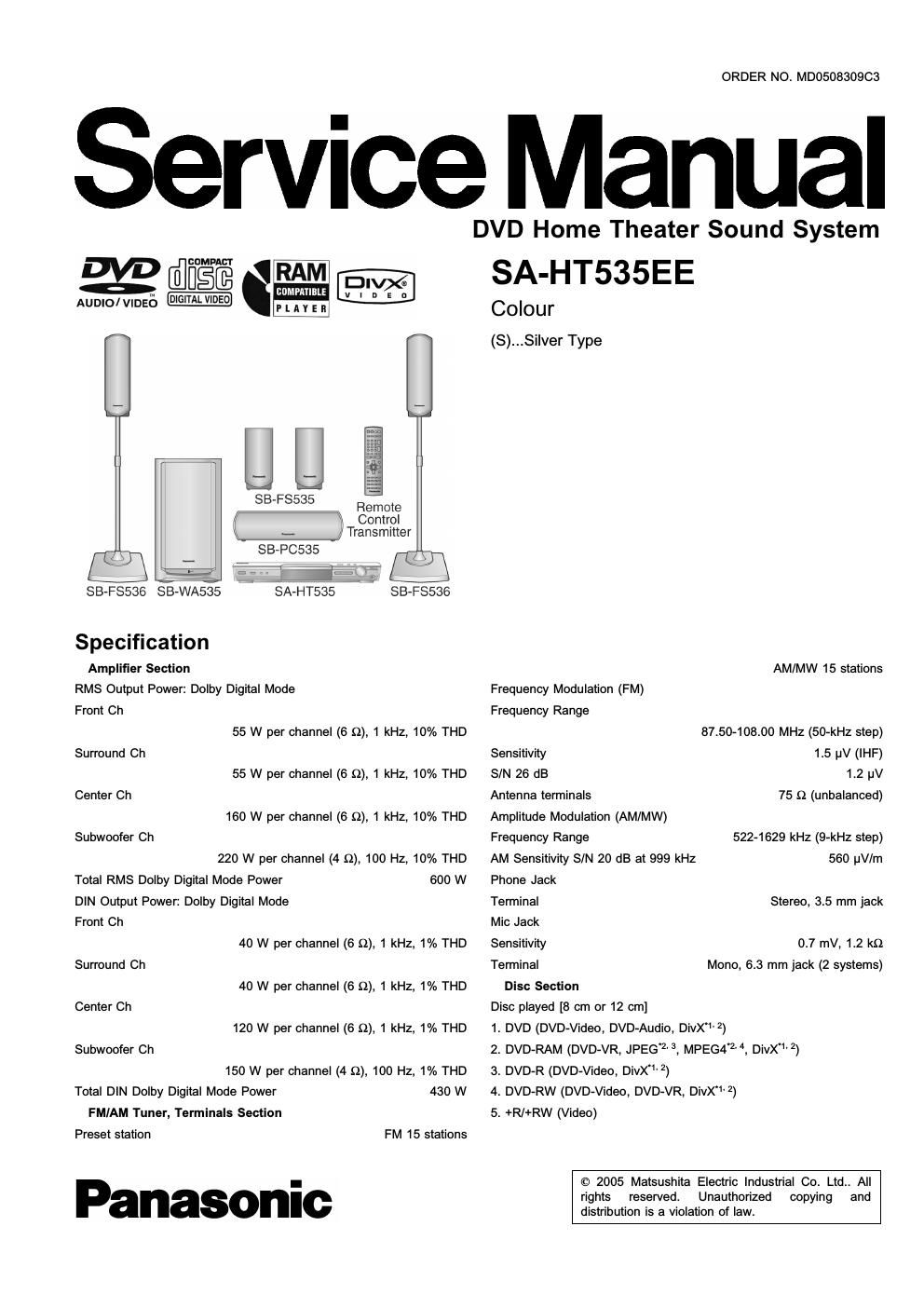

SA-HT535EE

5. CD, CD-R/RW [CD-DA, Video-CD, svco'5, MP3M, WMA'Z' 7,
JPEG'Z 3, MPEG', Divx1v 2, HIGHMAT Level 2 (Audio and Image)]

'1 DivX 3.11, 4.x, 5.x
GMC (Global Motion Compensation) is not supported.

'2 The total combined maximum number of recognizable audio, picture
and video contents and groups: 4000 audio, picture and video
contents and 400 groups.

'3 Exif Ver 2.1 JPEG Baseline tiles

Picture resolution: between 160 X 120 and 6144 X 4096 pixels
(Sub sampling is 4:2:2 or 4:2:0)

" MPEG4 data recorded with Panasonic SD multi-cameras or DVD
video recorders

Conforming to SD VIDEO specifications (ASF standard)/MPEG4
(Simple Profile) video system/6.726 audio system

'5 Conforming to |EC62107.
'5 MPEG-1 Layer 3, MPEG-2 Layer 3.
'7 Windows Media Audio Ver.9.0 L3.
Not compatible with Multiple Bit Rate (MBR)
Pick up
CD 785 nm
DVD 662 nm
CLASS 2/CLASS 3A

Wavelength

Laser power

Audio output (Disc)
Number of channels 5.1ch (FL, FR, C, SL, SR, SW)
Video Section

Video System
Signal system PAL625/50, PAL525/60, NTSC
Composite video output
Output level 1 Vp-p (75 9)
Terminal Pin jack (1 system)
Scart jack (1 system)
S-video output
Y output level 1 Vp-p (75 Q)
PAL; 0.3 Vp-p (75 9)
NTSC; 0.286 Vp-p (75 Q)

8 terminal (1 system)

C output level

Terminal
Scart jack (1 system)
Component Video Output

[NTSC: 525 (480) p/525 (430) i, PAL: 625 (576) p/625 (576)i]

Y output level
PB output level
PR output level

1 Vp-p (75 o)
0.7 Vp»p (75 o)
0.7 Vp»p (75 a)

Terminal
Pin jack (Y: green, PB: blue, PR: red) (1 system)
RGB video output

R output level 0.7 Vp»p (75 Q)
G output level 0.7 Vp»p (75 Q)
B output level 0.7 Vp-p (75 Q)

)

Terminal Scart jack (1 system
General
AC 230 V, 50 Hz

25 w (SA-HT535),
250 w (SB-WA535)

Dimensions (W x H x D) 430 x 60 x 348.3 mm
Mass 2.7 kg (SA-HT535)
+5 C to +35 °C

Power Supply
Power consumption

Operating temperature range
Operating humidity range
5 /0 to 90 % RH (no condensation)
Power consumption in standby mode: approx. 0.7 W
a Rating with low cut filter equipped amplifier
System
System: SC-HT535 (EE)
Main unit: SA-HT535 (EE-S)
Satellite speaker: SB-HT535 (EG-S)
Active subwoofer: SB-WA535 (EE-S)
Speakers: SB-HT535 (EG)
Front speakers: SB-F8535 (EG-S)
Surround speakers: SB-F8536 (EG-S)
Center speaker: SB-PC535 (EG-S)

Note:
1.Specifications are subject to change without notice. Mass and
dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

CONTENTS

Page

1 Use of Active Subwoofer--

1.1. Checking Main Unit when Active Subwoofer is Used

1.2. Checking Main Unit Using Power Jig .............................. 5

2 Before Repair and Adjustment (Using Active Subwooter Unit)
... ...5

3 SAFETY PRECAUTIONS --------------------------------------------------------- 5
3.1. GENERAL GUlDELINES ------------------------------------------------ 5

4 Handling the Lead Solder-
4.1. About lead free solder (PbF)

5 Protection Circuitry ---------------------------------------------------------------- 6

6 Prevention of Electra Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices ---------------------- 7

7 Cautions to Be Taken When Handling Optical Pickup ----------- B

7.1. Handling Optical Pickup ................................................. 3
