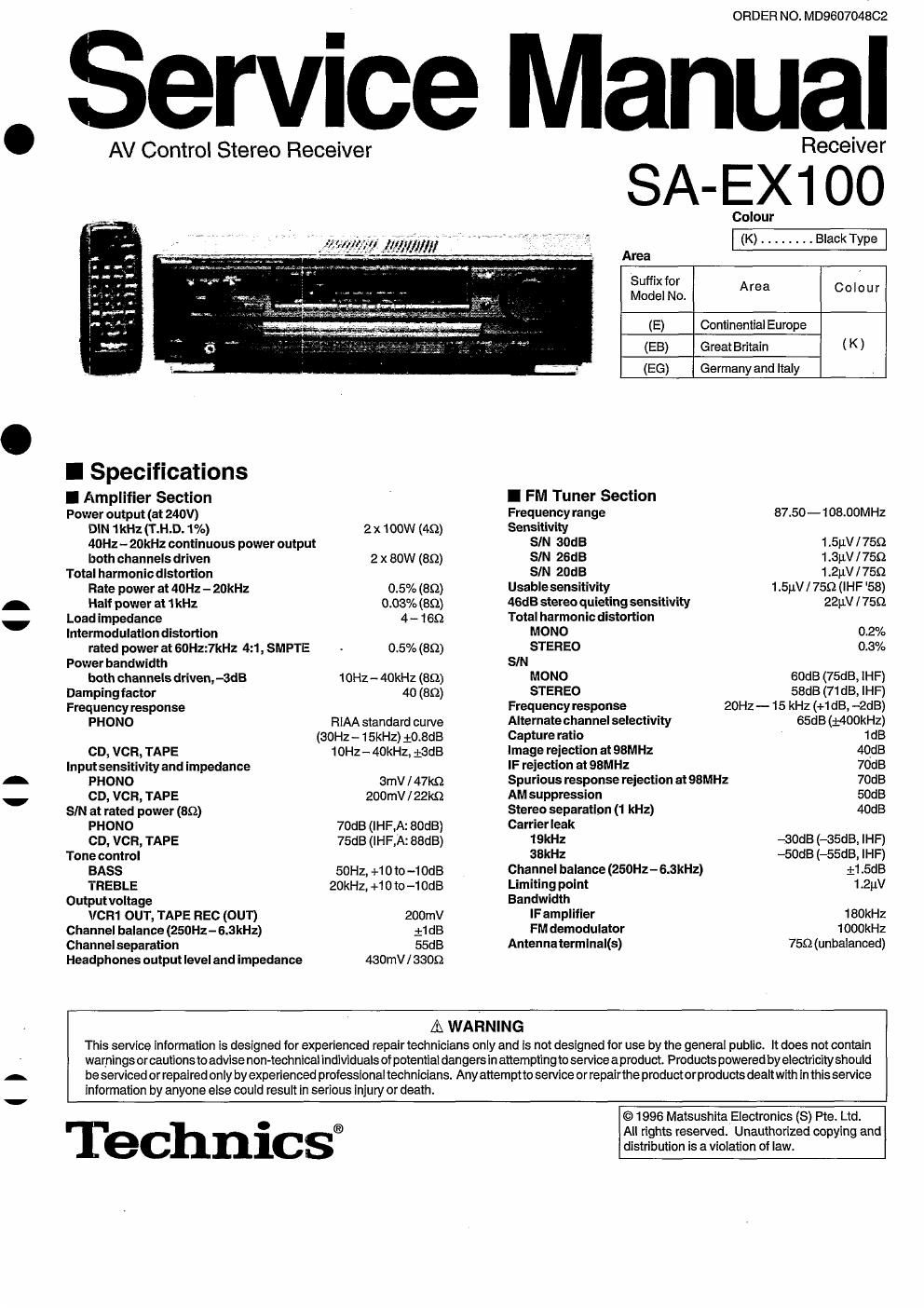

Page 1

i i

ORDER NO. M0960704862

ervice Manual

AV Control Stereo Receiver Receiver
3 A - E X 1 o 0
Colour
Area
Suffix for
Model No. Area C°'°
(E) Continential Europe
(EB) Great Britain ( K )
(EG) Germany and Italy
I Speclflcatlons
I Amplifier Section I FM Tuner Section
Power output (at 240V) Frequency range 87.50-108.00MH2
DIN 1kHz (T.H.D. 1%) 2 x 1 00W (49) Sensitivity
40Hz~ 20kHz continuous power output SIN 30dB 1 .5p.V / 759
both channels driven 2 x saw (so) SIN 26dB 1-8uV I 759
Total harmonic distortion SIN ZOdB 1.2uV I 759
Rate power at 40H: - zokHz 0.5% (89) Usablesensitivity 1.5uV / 75S) (IHF '58)
Half power at 1 kHz 0.03% (89.) 46dB stereoquieting sensitivity 22gLV I 759
Load impedance 4 - 1632 Total harmonic distortion
lntermodulatlon distortion MONO 0.2%
rated power at 60Hz:7kHz 4:1, SMPTE 0.5% (89) STEREO 0.3%
Power bandwidth SIN
both channels driven, -3dB 10Hz -- 40kHz (851) MONO 80dB (75dB, iHF)
Damping factor 40 (8(2) STEREO 58dB (71 dB, IHF)
Frequency response Frequency response 20H: - 15 kHz (+1 dB, -2d B)
PHONO RIAA standard curve Alternate channel selectivity 65dB (i400kHz)
(30Hz - 15kHz) 10,8dB Capture ratio 1 dB
CD, VCR, TAPE 10Hz - 40kHz, iSdB Image rejection at 98M Hz 4QdB
Input sensitivity and impedance IF rejection at QBMHz 70dB
PHONO 3mV/ 47kg Spurious response rejection at 98MHz 70dB
CD, VCR, TAPE 200mV I 22m AM suppression SOdB
SIN at rated power (so) Stereo separation (1 kHz) 40dB
PHONO 70dB (lHF.A: SodB) Carrier leak
CD, VCR, TAPE 75dB (IHF,A: BBdB) 12 -30dB (-35dB, IHF)
Tone control 38kHz -50dB (-55dB, IHF)
BASS SOHZ, +1 0 to -1odB Channel balance (250Hz - 6.3kHz) 31.5dB
TREBLE 20kHZ, +10to -10dB Limiting point 1.2liV
Output voltage Bandwidth
vcnt our, TAPE REC (our) zoomv IFamPIifier 180kH2
Channel balance (250Hz- 6.3kHz) :1 dB FM demodulator loookHz
Channelseparation 55:35 Antenna termlnal(s) 7552 (unbalanced)
Headphones output level and impedance 430mV/ 3309
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain
warnings orcautionsto advise nonviechnical individuals of potential dangers in attempting to service aproduct. Products powered by electricity should
be serviced or repaired only by experienced professionaltechnicians, Any attemptto service or repairthe productorproducts dealt with in this service
information by anyone else could result in serious injury or death.

Technics®

© 1996 MatsushitaElectronics (S) Pte. Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
