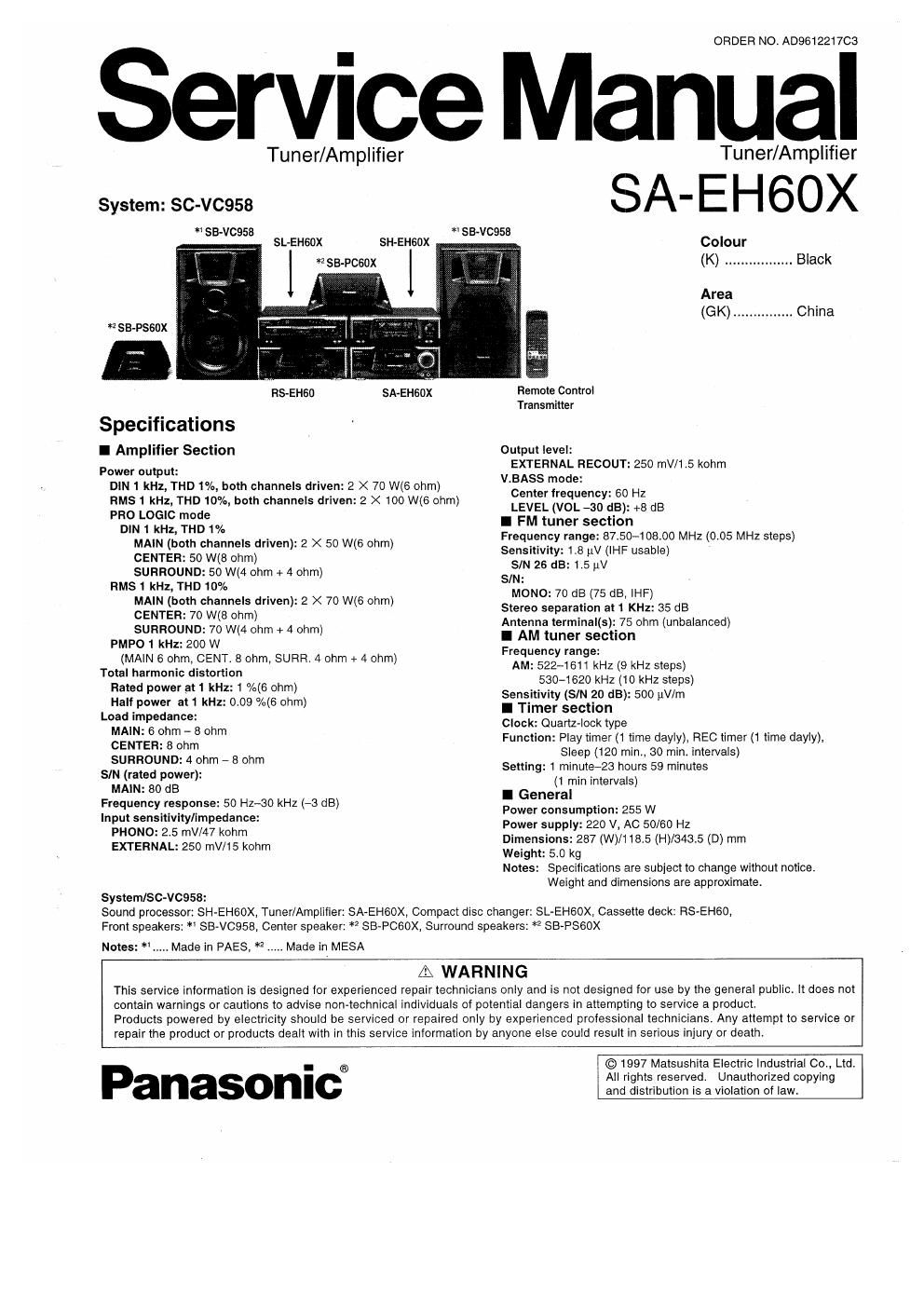

Page 1

ORDER NO. A09612217CS

Service Manual

Tuner/Amplifier

SA-EHGOX

System: SC-V0958
*1 sa-vcesa * sa-vcssa
SL-EHsox SH-EHsox Colour
*ZSB-PCGOX (K) ................. Black
Area
(GK) ............... China
*esa-Pseox
PIS-EH60 SA-EHSUX Remote Control
Transmitter
Specifications
I Amplifier Section Output level:
Power output: v Eagiasnnﬁsenecour: 250 mV/Ls kohm

DIN 1 kHz, THD 1%, both channels driven: 2 X 70 W(6 ohm)
RMS 1 kHz, THD 10%, both channels driven: 2 X 100 W(6 ohm)
PRO LOGIC mode
DIN 1 kHz, THD 1%
MAIN (both channels driven): 2 X 50 W(6 ohm)
CENTER: 50 W(8 ohm)
SURROUND: 50 W(4 ohm + 4 ohm)
HMS 1 kHz, THD10%
MAIN (both channels driven): 2 X 70 W(6 ohm)
CENTER: 70 W(8 ohm)
SURROUND: 7O W(4 ohm + 4 ohm)
PMP01 kHz: 200 W
(MAIN 6 ohm, CENT. 8 ohm, SURR. 4 ohm + 4 ohm)
Total harmonic distortion
Rated power at1 kHz: 1 %(6 ohm)
Half power at 1 kHz: 0.09 °/o(6 chm)
Load impedance:
MAIN: 6 ohm - 8 ohm
CENTER: 8 ohm
SURROUND: 4 ohm - 8 ohm
SIN (rated power):
MAIN: 80 dB
Frequency response: 50 HZ-30 kHz {-3 dB)
Input sensitivity/impedance:
PHONO: 2.5 mV/47 kohm
EXTERNAL: 250 mV/15 kohm

System/SCNCQSS:

Center frequency: 60 Hz
LEVEL (VOL -30 dB): +8 dB
I FM tuner section
Frequency range: 8750-10800 MHZ (0.05 MHz steps)
Sensitivity: 1.8 pV (IHF usable)
SIN 26 dB: 15 pV
SIN:
MONO: 70 dB (75 dB, IHF)
Stereo separation at 1 KHz: 35 dB
Antenna terminal(s): 75 ohm (unbalanced)
I AM tuner section
Frequency range:
AM: 522-1611 KHz (9 kHz steps)
530-1620 kHz (10 kHz steps)
Sensitivity (SIN 20 dB): 500 pV/m
I Timer section
Clock: Quartz-lock type
Function: Play timer (1 time dayly), REC timer (1 time dayly),
Sleep (120 min., 30 min. intervals)
Setting: 1 minutea23 hours 59 minutes
(1 min intervals)
I General
Power consumption: 255 W
Power supply: 220 V, AC 50/60 Hz
Dimensions: 287 (W)/118.5 (H)/343.5 (D) mm
Weight: 50 kg
Notes: Specifications are subject to change without notice.
Weight and dimensions are approximate.

Sound processor: SH»EH60X. Tuner/Amplifier: SAvEHGOX, Compact disc changer: SL-EHBOX, Cassette deck: RS-EHSO,
Front speakers: * SB-V0958, Center speaker: *2 SB-PCGOX, Surround speakers: *2 SB~PSGOX

Notes: * ..... Made in PAES. *2 ..... Made in MESA

A WARNING

This service information is designed {or experienced repairtechnicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non»technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic®
