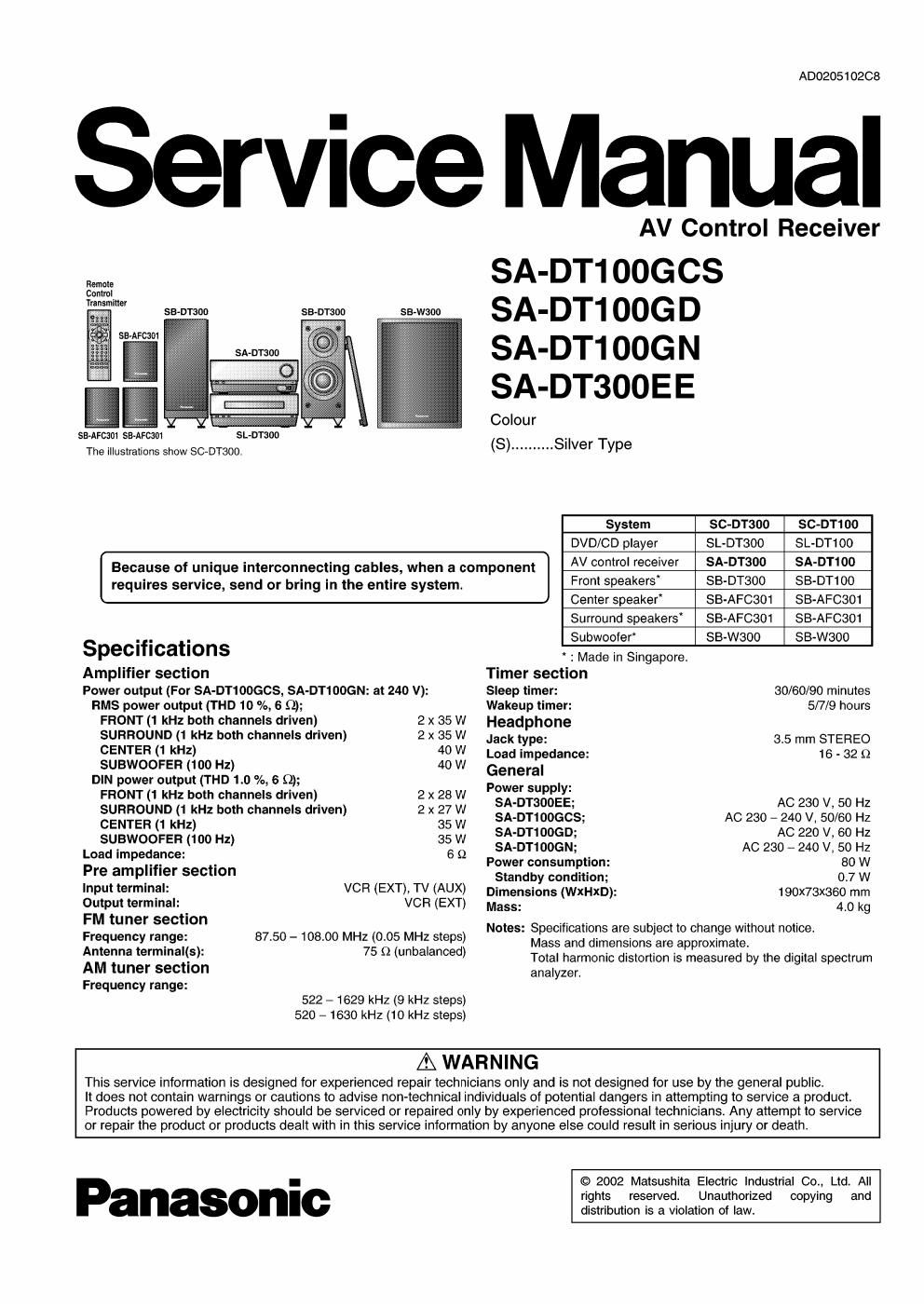

Page 1

AD020510208

Service Manual

AV Control Receiver

SA-DT1 OOG CS

SA-DT1 00G D
SA-DT1 00G N

SA-DT300E E

Colour
(S) .......... Silver Type

SA»DT300

The illustrations show SC-DTBOO.

System SC-DTSUO SC-DT100
DVD/CD player SL-DT300 SL-DT100
Because of unique interconnecting cables, when a component AV control receiver SA'DTSDO SA-DT100
requires service, send or bring in the entire system. From speakers SB'DT300 33431-100
Center speaker SB-AFCSUi SB-AF0301
Surround speakers' SB-AF0301 SB-AFC301
S f . Subwoofer* SB-W300 SB-W300
pec' lcatlons " : Made in Singapore
Amplifier section Timer section
Power output (For SA-DT1ODGCS, SA-DT1DOGN: at 240 V): Sleep timer: 30/60/90 minutes
RMS power output (THD 10 %, 6 Q); Wakeup timer: 5/7/9 hours
FRONT (1 kHz both channels driven) 2 x 35 W Headphone
SURROUND (1 kHz both channels driven) 2 x 35 W Jack type: 35 mm STEREO
CENTER (1 kHz) 40 W Load impedance: 16 - 32 £2
SUBWOOFER (100 Hz) 40 W General
DIN power output (THD 1.0 %, 6 32); P | '
FRONT (1 kHz both channels driven) 2 x 28 w gfsiggggé AC 230 v 50 H
SURROUND (1 kHz both channels driven) 2 x 27 W SA-DT1OOGCS' AC 230 7 240 V 50/60 H:
, .
SEQ-IWEJJ;EKRH300 Hz) 3: a SA-DT1DOGD; AC 220 V, 60 Hz
Load impedance: 6!) SA-DT1DOGN; . AC 230-240 V, 50 HZ
. . . Power consumption: 80 W
Pre amplifier section Standby condition; 0.7 W
"1Pt 'erm'na VCR (EXT), TV (AUX) Dimensions (WxHxD): 190x73x360 mm
Output terminal: VCR (EXT) Mass: 4_0 kg
FM tuner seetion Notes- Specifications are subject to change without notice
Frequency range: 87.50 - 108.00 MHz (0.05 MHz steps) ' . . . '
Antenna terminal(s): 75 Q (unbalanced) Mass and dimenSIons are apprOXImate.

. Total harmonic distortion is measured b the di ital s ectrum
AM tuner section Y Q P

analyzer.
Frequency range:
522 e 1629 kHz (9 kHz steps)
520 e 1630 kHz (10 kHz steps)
A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

© 2002 Matsushita Electric Industrial 00., Ltd. All

-
P n I rights reserved. Unauthorized copying and
distribution is a violation of law.

Page 2

SA-DT1OBGCS I SA-DT1 006D I SA-DT1OOGN / SA-DTSDOEE

CONTENTS

Page
1 Before Repairs ------------------------------------------------------------------------ 2
2 Protection Circuitry ----------------------------------------------------------------- 2
3 Accessories ............................................................................ 3
4 Location of Controls ............................................................... 4

5 Self-Diagnostic Function ---------------

5.1. To display the malfunction code

5.2. To return to the normal display --------------------------------------- 5

5.3. Display contents ------------------------------------------------------------ 5
6 Operation Checks and Component Replacement

Procedures ------------------------------------------
6.1. Checking for the digital amp P.C.B.
6.2. Checking for the FL P.C.B.

6.3. Checking for the main P.C.B_ ......................................... 7
6.4. Replacement for the FL P.C.B., headphone P.C.B. and
operation P.C.B. ------------------------------------------------------------ 7

1 Before Repairs

1.Turn off the power supply. Using a 10 Q. 10 W resistor,
connect both ends of power supply capacitors (C730,
C750) in order to discharge the voltage.

2. Before turning the power supply on, after completion of
repair, slowly apply the primary voltage by using a power
supply voltage controller to make sure that the consumed
current at 50/60 Hz in NO SIGNAL mode should be shown
below withrespect to supply voltage 220/230/240 V.

Power supply AC 220 V, AC 230 V, AC 240 V,
voltage 60 Hz 50 Hz 50 Hz
Consumed current 90 - 280 mA 80 - 270 mA 75 - 265 mA

Page

7 How to replace IC (TA35100) with reading terminal block ----- 9
8 To Supply Power Source ------------------------------------------------------ 10
9 Schematic Diagram Notes ---------------------------------------------------- 1o
10 Schematic Diagram --------------------------------------------------------------- 11

11 Printed circuit Board Diagram ------------------------

12 Type Illustration of ICs, Transistors and Diodes

13 Wiring Connection Diagram .................................................. 29
14 Block Diagram ---------------------------------------------------------------------- 31
15 Terminal Function of Ics ...................................................... 37

15.1. |0941(C2CBH6000095)
16 Replacement Parts List

System Control -

17 Cabinet Parts Location-
18 Packaging ----------------------------------------------------------------------------- 4e

2 Protection Circuitry

The protection circuitry may have operated if either of the
following conditions is noticed:

o No sound is heard when the power is switched ON.
. Sound stops during a performance.

The functions of this circuitry is to prevent circuitry damage if,
for example, the positive and negative speaker connection
wires are shorted, or if speaker systems with an impedance
less than the indicated rated impedance of this unit are used.

If this occurs, follow the procedures outlined below.
1.Switch OFF the power.
2. Determine the cause of the problem and correct it.
3.Switch ON the power once again.

Note:

When the protection circuitry functions, the unit will not
operate unless the power is first switched OFF and then ON
again.
