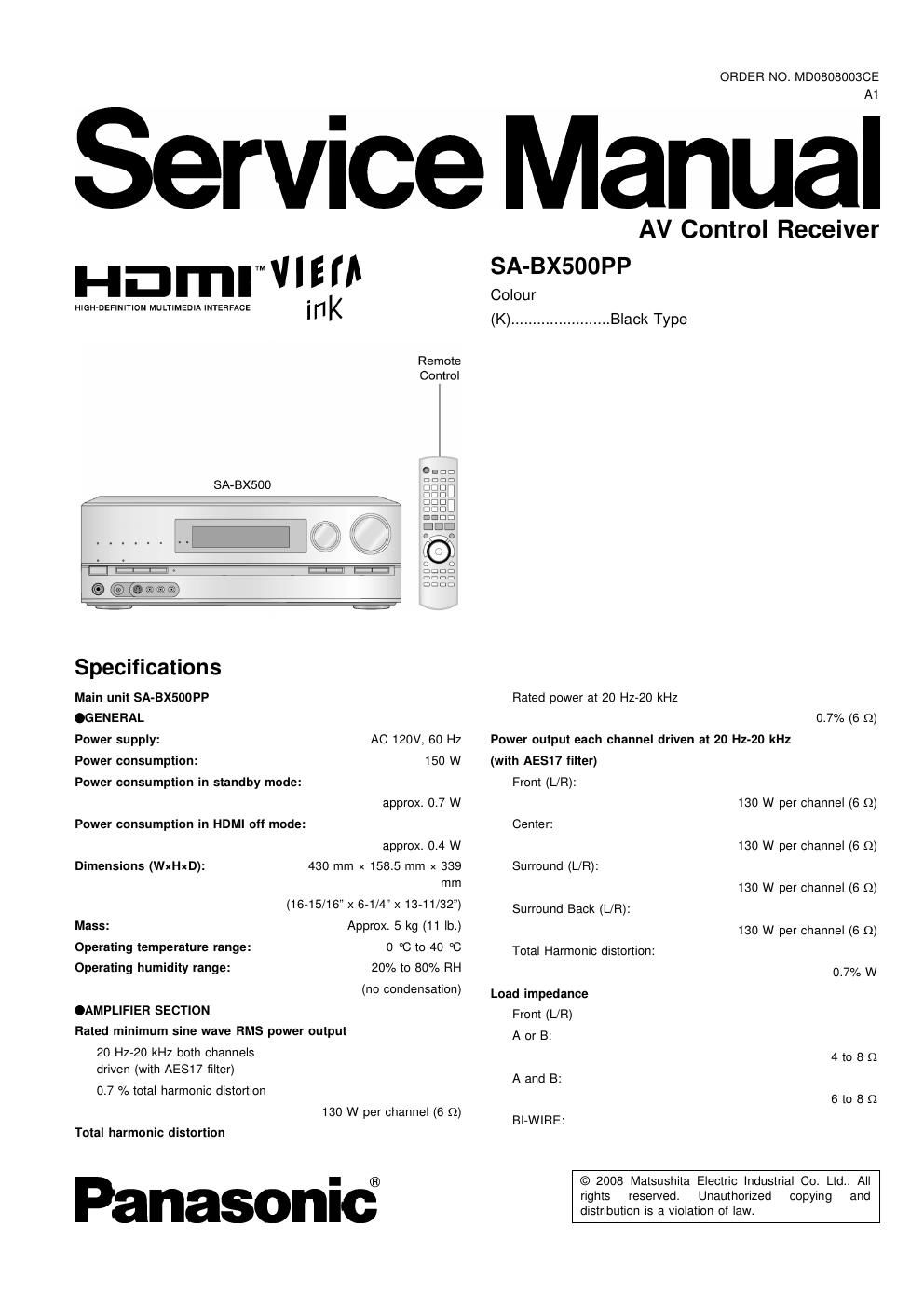

Page 1

Service

HDerIEfl

HlGH-DEFINITION MULTIMEDIA INTERFACE i '1 K

Remote
Control

SA-BX5OO

.®®@@@

Specifications
Main unit SA-BXSOOPP
.GENERAL

Power supply: AC 120V, 60 Hz

Power consumption: 150 W
Power consumption in standby mode:
approx. 0.7 W
Power consumption in HDMI oft mode:
approx. 0.4 W
Dimensions (WxHxD): 430 mm x 158.5 mm x 339
mm

(16-15/16" x 6-1/4"x13-11/32")
Approx. 5 kg (11 lb.)

0 °C to 40 DC

20% to 80% RH

(no condensation)

Mass:
Operating temperature range:
Operating humidity range:

.AMPLIFIER SECTION
Rated minimum sine wave HMS power output

20 Hz-ZO kHz both channels
driven (with AES17 filter)

0.7 /a total harmonic distortion
130 W per channel (6 Q)
Total harmonic distortion

Panasonic?

ORDER NO. MD08080030E

Manual

AV Control Receiver

SA-BX500PP
Colour
(K) ....................... Black Type

Rated power at 20 Hz-ZO kHz
0.7% (s 9)
Power output each channel driven at 20 Hz-20 kHz
(with AES17 filter)
Front (L/R):
130 W per channel (6 0)
Center:
130 W per channel (6 Q)
Surround (L/Ft):
130 W per channel (6 Q)
Surround Back (L/R):
130 W per channel (6 Q)
Total Harmonic distortion:

0.7% W
Load impedance

Front (L/R)
A or B:

4 to 8 Q
A and B:

6 to 8 Q
BI-WIRE:
