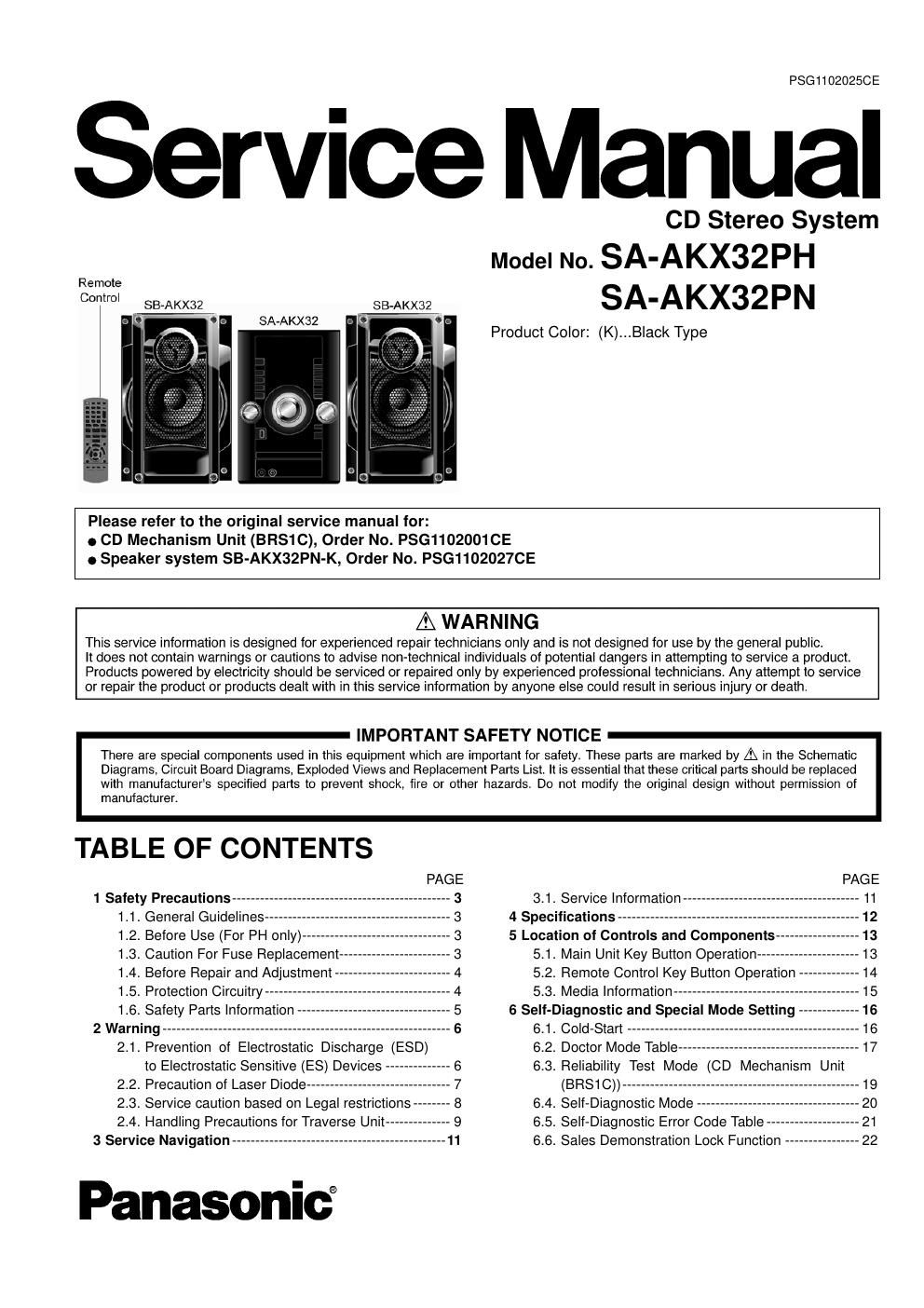

Panasonic sa akx32 service en

Page 1

PSG11020250E

Service Manual

Remote
Control

SB-AKX32 SB-AKX32

SA-AKX32

CD Stereo System

Model No. SA-AKX32 PH

SA-AKX32PN

Product Color: (K)...Black Type

Please refer to the original service manual for:

0 CD Mechanism Unit (BRS1 C), Order No. PSG1102001 CE
0 Speaker system SB-AKX32PN-K, Order No. PSG1102027CE

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by A in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. it is essential that these critical parts should be replaced
with manufacturers specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of

manufacturer.

TABLE OF CONTENTS

1 Safety Precautions --------
1.1. General Guidelines-
1.2. Before Use (For PH only) ----------
1.3. Caution For Fuse Replacement--
1.4. Before Repair and Adjustment
1.5. Protection Circuitry -------
1.6. Safety Parts Information

2 Warning -------------------------------------------------------------- 6
2.1. Prevention of Electrostatic Discharge (ESD)

to Electrostatic Sensitive (ES) Devices

2.2. Precaution of Laser Diode -----------------
2.3. Service caution based on Legal restrictions
2.4. Handling Precautions for Traverse Unit ------

3 Service Navigation ---------------------------------------------- 11

Panasonic

3.1. Service Information
4 Specifications --------------
5 Location of Controls and Components--
5.1. Main Unit Key Button Operation---
5.2. Remote Control Key Button Operation
5.3. Media Information ------------------------
6 Self-Diagnostic and Special Mode Setting
6.1. Cold-Start ------------
6.2. Doctor Mode Table-
6.3. Reliability Test Mode (CD Mechanism Unit
(BRS1C)) --------------------------------------------------- 19
6.4. Self-Diagnostic Mode ----------------
6.5. Self»Diagnostic Error Code Table -
6.6. Sales Demonstration Lock Function ---------------- 22
