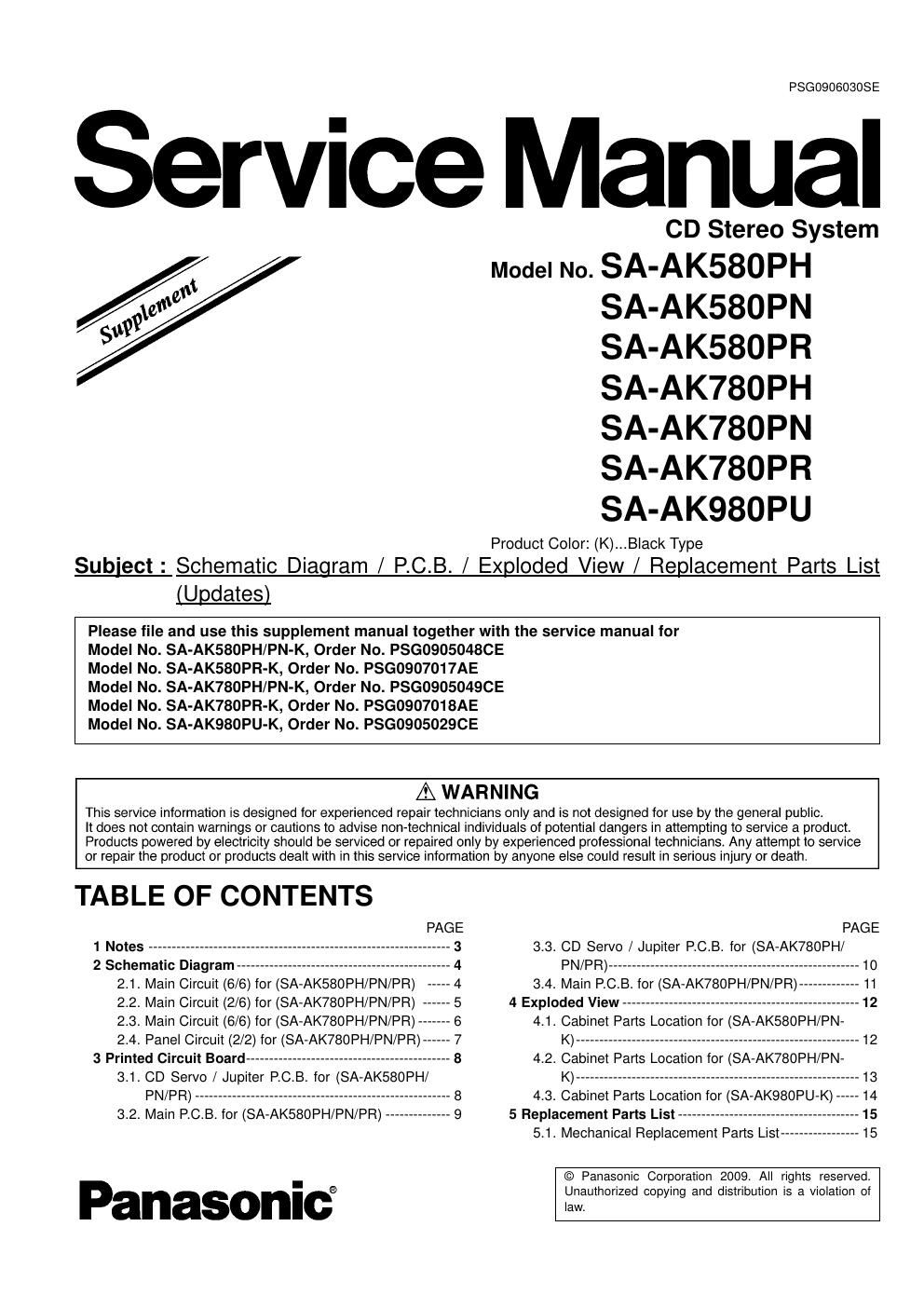

Page 1
PSG090603OSE
Service Manual
CD Stereo System
4 Model No. SA-AK580 PH
WW SA-AK580PN
5' SA-AK580PR
SA-AK780PH
SA-AK780PN
SA-AK780PR
SA-AK980PU
Product Color: (K)...Black Type
Subiect: Schematic Diadram / P.C.B. / Exploded View / Replacement Parts List
(Updates)
Please file and use this supplement manual together with the service manual for
Model No. SA-AK580PH/PN-K, Order No. PSGOQOSO4SCE
Model No. SA-AK580PR-K, Order No. P860907017AE
Model No. SA-AK780PH/PN-K, Order No. PSG09050490E
Model No. SA-AK780PR-K, Order No. P860907018AE
Model No. SA-AK980PU-K, Order No. PSG09050296E
A WAR NING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
TABLE OF CONTENTS
1 Notes ----------------------
2 Schematic Diagram-n
2.1. Main Circuit (6/6) for (SA-AKSBOPH/PN/PR) ----- 4
2.2. Main Circuit (2/6) for (SA-AK780PH/PN/PR) ------ 5
2.3. Main Circuit (6/6) for (SA-AK780PH/PN/PR)
2.4. Panel Circuit (2/2) for (SA-AK780PH/PN/PR) ------ 7
3 Printed Circuit Board -------------------------------------------- 8
3.1. CD Servo / Jupiter P.C.B. for (SA-AK58OPH/
PN/PR) ------------------------------------------------------- 8
3.2. Main P.C.B. for (SA-AKSBOPH/PN/PR) -------------- 9
Panasonici
PAGE
3.3. CD Servo / Jupiter P.C.B. for (SA-AK780PH/
PN/PR) --------------------------------------------
3.4. Main P.C.B. for (SA-AK780PH/PN/PR)---
4 Exploded View --------------------------------------------------- 12
4.1. Cabinet Parts Location for (SA-AKSBOPH/PN-
K) ------------------------------------------------------------- 12
4.2. Cabinet Parts Location for (SA»AK780PH/PN-
K) ------------------------------------------------------------- 13
4.3. Cabinet Parts Location for (SA»AK980PU-K) ----- 14
5 Replacement Parts List -----------------------
5.1. Mechanical Replacement Parts List
© Panasonic Corporation 2009. All rights reserved.
Unauthorized copying and distribution is a violation of
law.
Page 2
5.2. Electrical Replacement Parts List .................... 15
