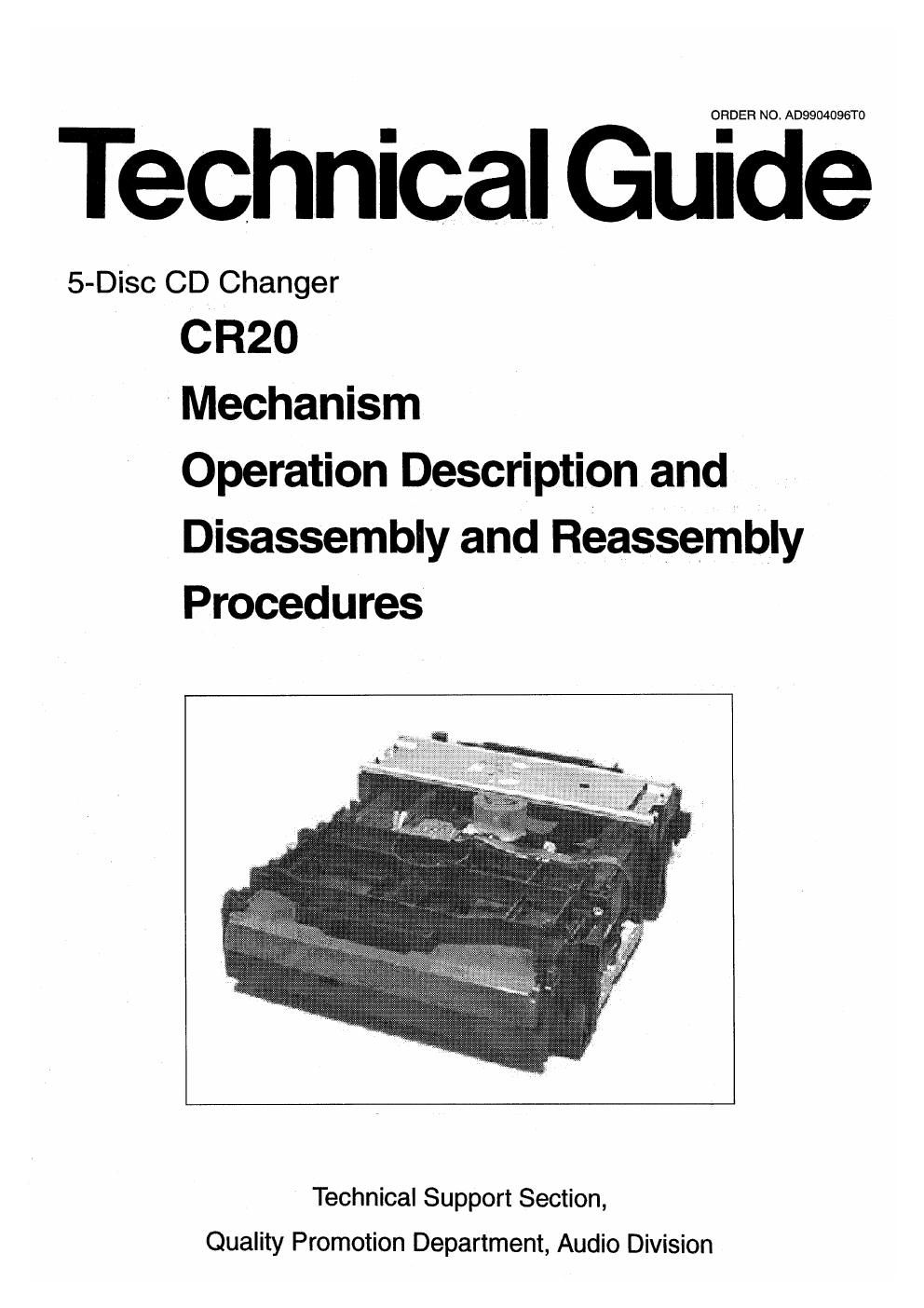

ORDER NO. A09904096T0
Technical Guide
5-Disc CD Changer
CRZO
Mechanism
Operation Description and
Disassembly and Reassembly
Procedures
Technical Support Section,
Quality Promotion Department, Audio Division
Page 2
Contents
1 Mechanism Overview
2 Mechanism Drive Unit
3 Detection Switches
4 Mechanism Operation Description
4-1 Mechanism Home Position
4-2 Shipping Position
4-3 Overview of Mechanism Drive Operation
5 Mechanism Operation Description
5-1 Mechanism Initialization
5-2 Tray Opening Operation
5-3 Tray Closing Operation
5-4 Disc Stocking Operation
5-5 Disc Loading Operation
5-6 Upward and Downward Movement
of the Traverse and the Spindle Base
5-7 Timing Charts
6 Disassembly
6-1 Disassembly of the Traverse Unit
6-2 Disassembly of the Tray Unit
6-3 Disassembly of the Mechanism Base»
7 Reassembly
7-1 Reassembly of the Traverse Unit
7-2 Reassembly of the Tray Unit
7-3 Reassembly of the Mechanism Base Drive Unit
8 About the GearTooi
