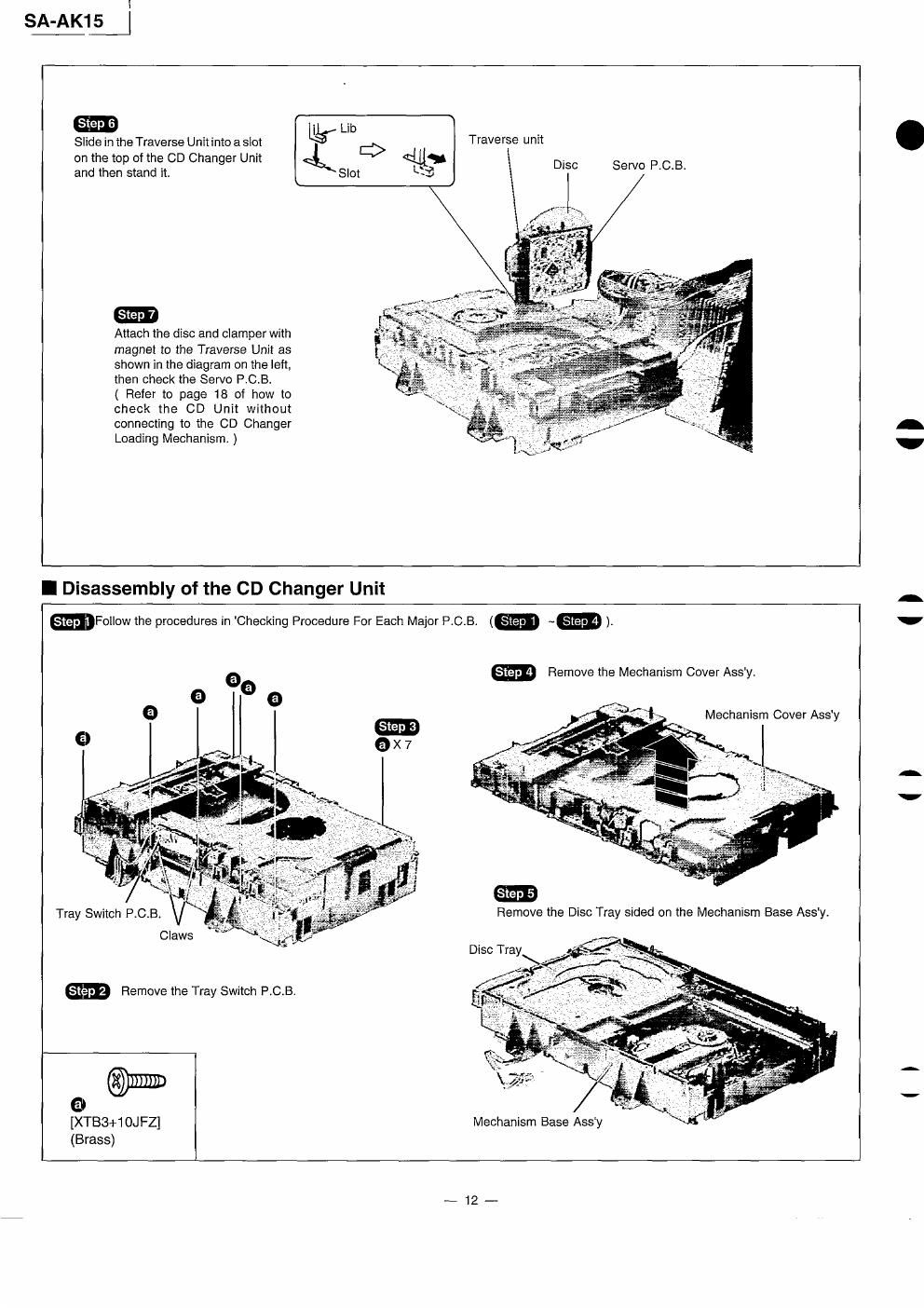

Page 1
SA-AK15
Slide in the Traverse Unit into a slot
on the top of the CD Changer Unit
and then stand it.
Attach the disc and clamper with
magnet to the Traverse Unit as
shown in the diagram on the left,
then check the Servo P.C.B.
( Refer to page 18 of how to
check the CD Unit without
connecting to the CD Changer
Loading Mechanism, )
Traverse unit
I Disassembly of the CD Changer Unit
Tray Switch
Remove the Tray Switch P,C.E.
@tnmn
GD
[XTBa+1 OJ FZ]
(Brass)
-Follow the procedures in Checking Procedure For Each Major P,CtBt (- ~- ).
Step 4 Remove the Mechanism Cover Assy.
Mechanism Cover Ass'y
Mechanism Base Assy
._12_.
H
