Panasonic sa ak 52 service manual
This is the 171 pages manual for panasonic sa ak 52 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sa ak 52 service manual (Ocr-read)
Page 1
file:///C|/Documents%20and%20$ettings/Moi/Mes%20documents/PANASONIC%ZOSA-AK52EE/SA-AK52EE/SVC/svcml.html

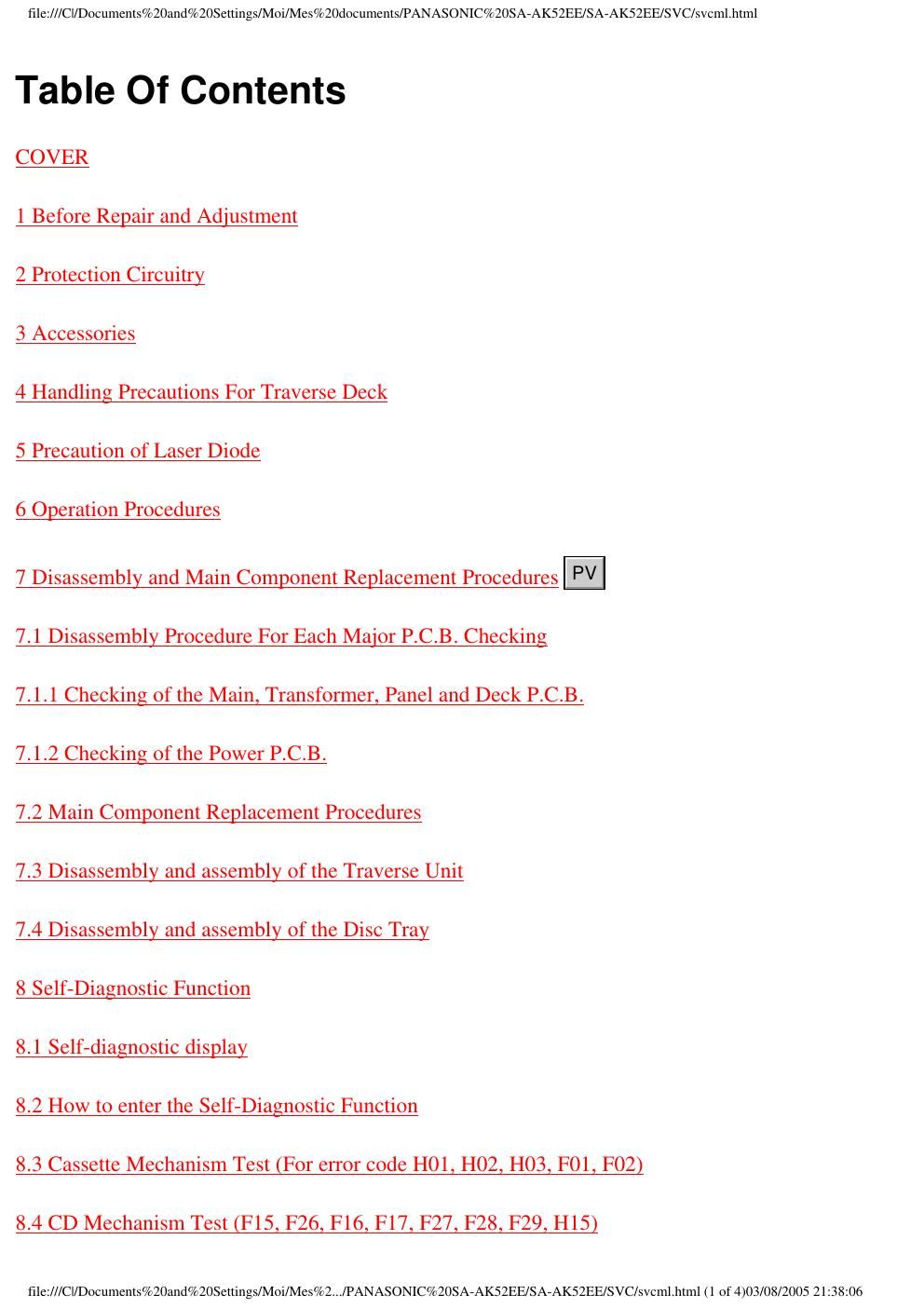

Table Of Contents
COVER
1 Before Repair and Adjustment
2 Protection Circuitrx
3 Accessories
4 Handling Precautions For Traverse Deck
5 Precaution of Laser Diode
6 Operation Procedures
7 Disassembly and Main Component Replacement Procedures PV
7.1 Disassembly Procedure For Each Major P.C.B. Checking
7.1.1 Checking of the Main, Transformer, Panel and Deck P.C.B.
7.1.2 Checking of the Power P.C.B.
7.2 Main Component Replacement Procedures
7.3 Disassembly and assembly of the Traverse Unit
7.4 Disassembly and assembly of the Disc Tray
8 Self-Diagnostic Function
8.1 Self-diagnostic display
8.2 How to enter the Self-Diagnostic Function
8.3 Cassette Mechanism Test (For error code H01, H02 H03, F01, F02)
8.4 CD Mechanism Test (F15, F26, F16, F17, F27 F28 F29 H15)
file:///C|/Documents%203nd%208ettings/Moi/Mes%2.../PANASONIC%208A-AK52EE/SA-AK52EE/SVC/svcml.html (l of 4)03/08/2005 21:38:06
