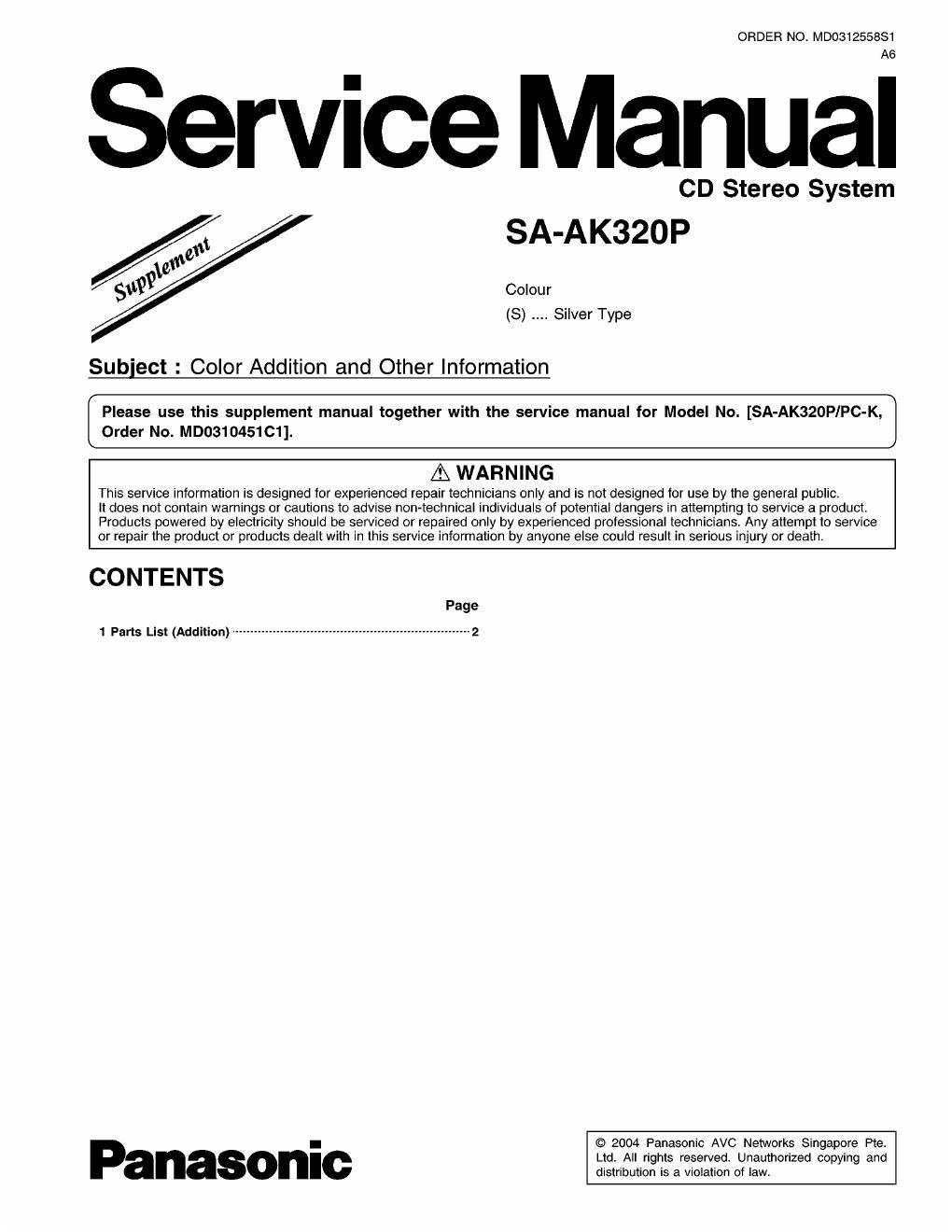

Page 1
ORDER NO. MD031255881
Servrce Manual
CD Stereo System
SA-AK320P
Colour
(8) Silver Type
Subject : Color Addition and Other Information
\
Please use this supplement manual together with the service manual for Model No. [SA-AK320P/PC-K,
Order No. M00310451CI].
A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by eiectricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
CONTENTS
Page
1 Parts List (Addition) ---------------------------------------------------------------- 2
© 2004 Panasonic AVC Networks Singapore Pte.
I
Ltd. All rights resen/ed. Unauthorized copying and
distribution is a violation of law.
Page 2
1 Parts List (Addition)
Note: With reference to page 92 (Cabinet Parts List) and Page 101 (Packing Materials & Accessories Parts List) of service manual
as mentioned. The parts below is for -8 colour.
Part Number
Model No. Ref. No. Part No. Part Name & Descriptions Remarks
SA-AK32OP-S 8 RGKX0241-S CD LID [M] Addition -3
9 RGKXO242-1S CONTROL PANEL [M] Addition -3
11 RGPX0141-S FRONT PANEL [M] Addition -3
13 RGUX0486-S CD CONTROL BUTTON [M] Addition -3
14 RGUX0546-S POWER BUI'I'ON [M] Addition -3
18 RGUX0550-1S DECK CONTROL BTN L [M] Addition -3
19 RGUX0551-1S DECK CONTROL BTN R [M] Addition -3
20 RGUX0552-S CD EJECT BUTTON [M] Addition -3
22 RHD30004-S SIDE SCREW [M] Addition -3
26 RKMX0077D-S TOP CABINET (BENT) [M] Addition -3
36 RYFXO130-S CASS LID UNIT (L) [M] Addition -3
37 RYFXO131-S CASS LID UNIT (R) [M] Addition -3
38 RYFXO132-S FL WINDOW UNIT [M] Addition -3
A1 EUR7710020 REMOTE CONTROL [M] Addition -3
A1-1 UR64EC2337F RIC BA'I'I'ERY COVER [M] Addition -3
[M] indicates parts that are supplied by PAVCSG.
