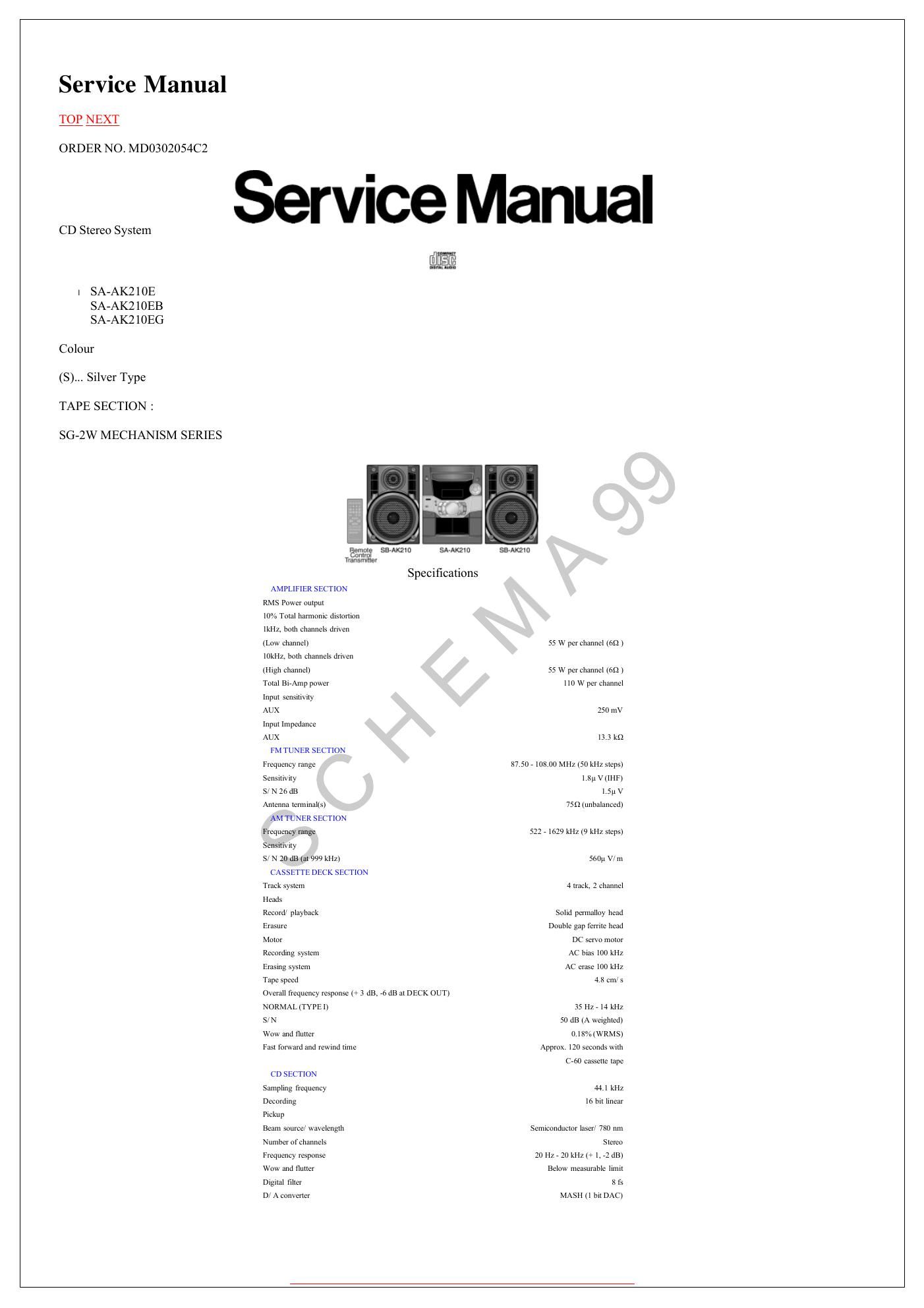

Service Manual
TOP NEXT
ORDER NO. MD0302054C2
CD Stereo System
| SA-AKZIOE
SA-AKZIOEB
SA-AKZIOEG
Colour
(S)... Silver Type
TAPE SECTION :
SG-2W MECHANISM SERIES
Service
ellulr 5841910
5.
Manual
(2'0
mafia.
Specifications
AMPLIFIER SECTION
RMS Power output
10% Toul harmonic distortion
IkHz. both channels driven
(Low channel) 55 w per channel (6!! )
IOkHz, both channels driven
(High channel) 55 w per channel (on )
Total BirAmp power 110 w per channel
Input scnsllivity
AUX 250 mV
Input Impedance
AUX 13.3 kn
FM TUNER SECTION
Frequency range 87.50 , [08.00 MHz (50 kHz steps)
Sensitivity mu val-1F)
3/ N 26 dB Lsu v
Antenna terminal(s) 75g: (unbalanced)
AM TUNER SECTION
Frequency mg: 522 . 1529 kHz (9 kHz Steps)
Sensitivity
3/ N 20 dB (at 999 kHz) soup w m
CASSETTE DECK SECTION
Track system 4 track. 2 channel
Heads
Record/ playback Solid permalloy head
Erasure Double gap ferrite head
Molor DC servo motor
Recording system AC hias 100 kHz
Erasing system AC erase 100 kHz
Tape speed 4.2; cm s
Overlill frequency response (+ 3 dB, ,6 dB at DECK our)
NORMAL (TYPE 1) 35 Hz ,14 kHz
S N 50 dB (A weighted)
Wow and flutter
Fast forward and rewind time
CD SECTION
Sampling frequency
Dccording
Pickup
Beam souree/ wavelength
Number of channels
Frequency response
Wow and flutter
Digital filler
Di' A converter
0. l 8% (w RM S)
Approx. 120 seconds with
C760 cassette tape
44.1 kHz
16 bit linear
Semiconductor laserl 780 nm
Stereo
20 Hzr 20 kHz(+ l. ezdla)
Below measurable limit
8 fs
MASH [i hit DAC)
