Panasonic sa ak 18 service manual
This is the 30 pages manual for panasonic sa ak 18 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from panasonic sa ak 18 service manual (Ocr-read)

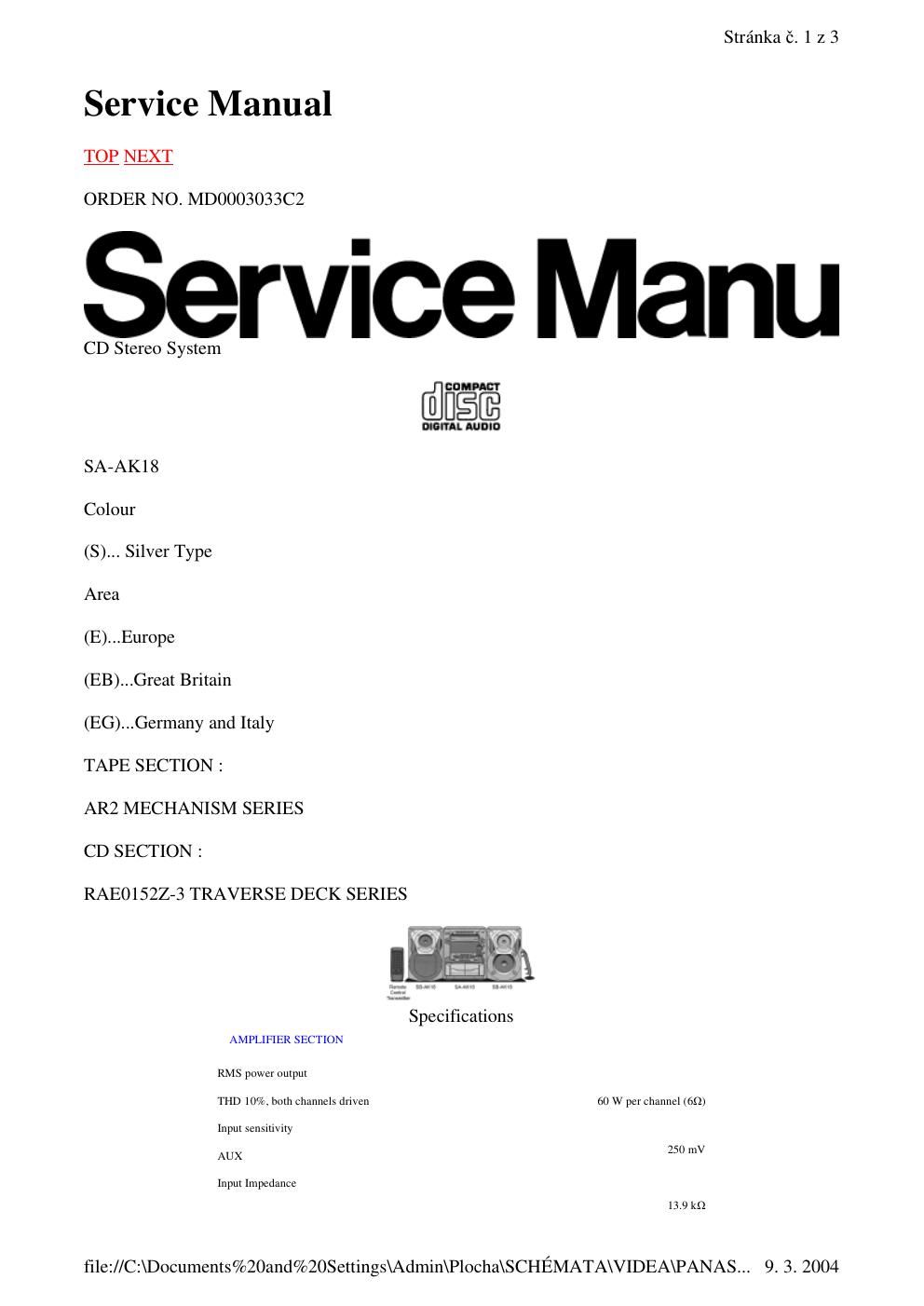

Page 1
AUX FM TUNER SECTION Frequency range 87.5 - 108 MHz (50 kHz steps) Sensitivity 1.8μV (IHF) S/N 26 dB 1.5μV Antenna terminal(s) 75Ω (unbalanced) AM TUNER SECTION Frequency range 522 - 1629 kHz (9 kHz steps) Sensitivity S/N 20 dB (at 999 kHz) 560μV/m CASSETTE DECK SECTION Track system 4 track, 2 channel Heads Record/playback Solid permalloy head Erasure Double gap ferrite head Motor DC servo motor Recording system AC bias 100 kHz Erasing system AC erase 100 kHz Tape speed 4.8 cm/s Frequency response (+3 dB, -6 dB at DECK OUT) NORMAL (TYPE I) 35 Hz - 14 kHz HIGH (TYPE II) 35 Hz - 14 kHz S/N 50 dB (A weighted) Wow and flutter 0.18% (WRMS) Fast forward and rewind time Approx. 120 seconds with C-60 cassette tape CD SECTION Sampling frequency 44.1 kHz Decoding 16 bit linear Beam source/wave length Semiconductor laser/780 nm Number of channels Stereo Frequency response 20 Hz - 20 kHz (+1, -2 dB) Wow and flutter Below measurable limit Digital filter 8 fs D/A converter MASH (1 bit DAC) GENERAL Power supply For E, EG AC 230 V, 50 Hz For EB AC 230-240 V, 50 Hz Power consumption 152 W Power consumption in standby mode Stránka č. 2 z 39. 3. 2004 file://C:\Documents%20and%20Settings\Admin\Plocha\SCHÉMATA\VIDEA\PANAS...
Page 2
© 2000 Matsushita Electronics (S) Pte Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. @ TOP NEXT Eco mode on 0.4 W Eco mode off 12 W Dimensions (W x H x D) 270 x 330 x 310 mm Weight 6.9 kg SYSTEM SC-AK18 (E) Music Center: SA-AK18 (E) Speaker: SB-AK18 (E) SC-AK18 (EB) Music Center: SA-AK18 (EB) Speaker: SB-AK18 (E) SC-AK18 (EG) Music Center: SA-AK18 (EG) Speaker: SB-AK18 (E) Notes: 1.Specifiacations are subject to change without notice. Weight and dimensions are approximate. 2.Total harmonic distortion is measured by the digital spectrum analyzer. Stránka č. 3 z 39. 3. 2004 file://C:\Documents%20and%20Settings\Admin\Plocha\SCHÉMATA\VIDEA\PANAS...
