Panasonic sa 5800

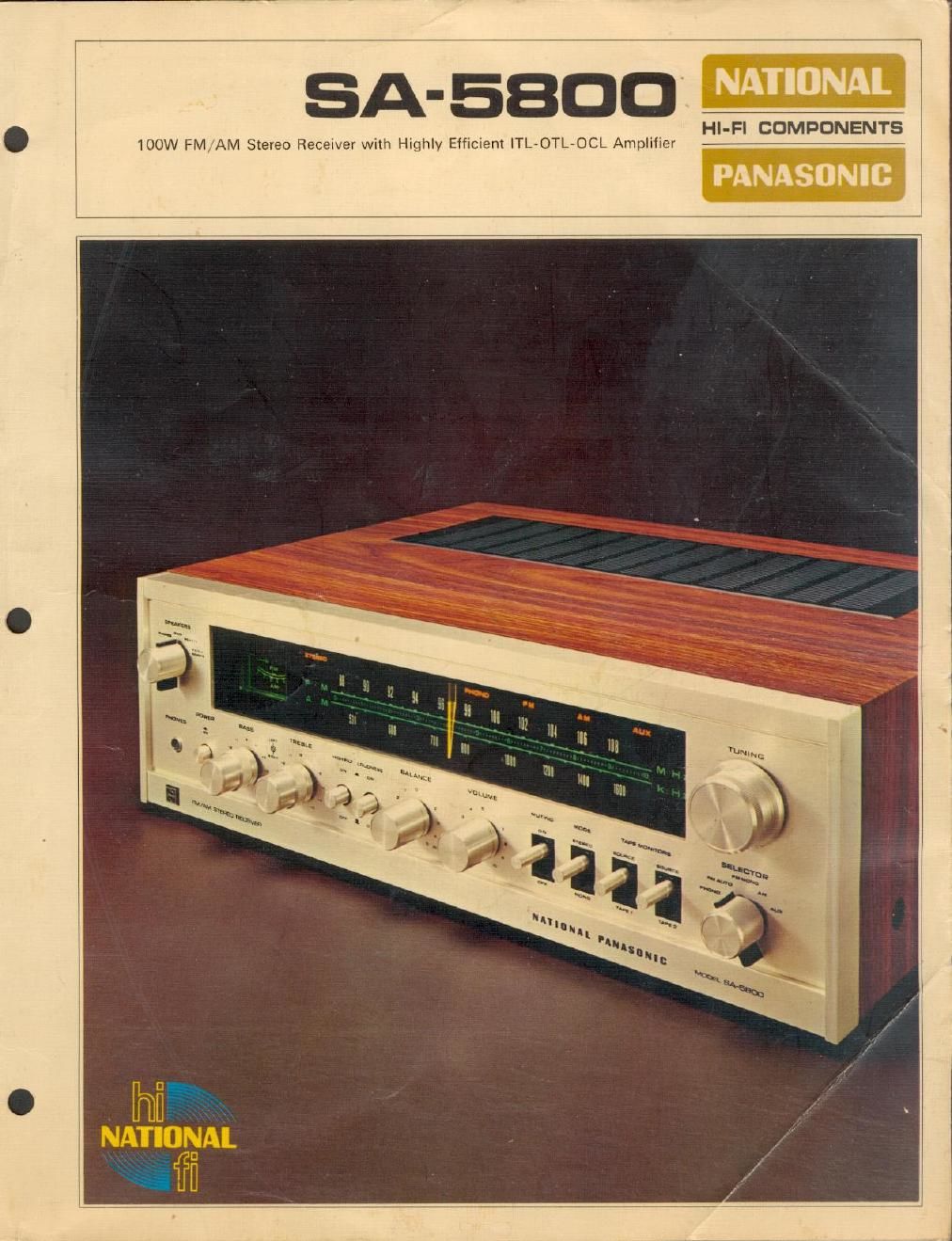

Page 1

HI-Fl COMPONENTS

PANASONIC

100W FM,AM Stereo Receiver with Highly Efficient lTL-OTL-OCL Amplifier

Page 2

Get an
arful of
Pure Sound!

FROM A HIGHLY
SENSITIVE FM AM
STEREO RECEIVER
HOUSING POWERFUL
DIRECT-COUPLED
ITL-OTL-OCL
AMPLIFIER

& 2-FETS, 1-IC
STEREO TUNER

Designed to faithfully entertain your ears .
you, the discriminating audiophile This
new FlVl/AM Stereo Receiver highlights
all of the exclusive National Panasonic
Features, Direct~Coupled lTL~OTLrOCL
amplification Circuitry and newly develop
ed Differential amplifier Circuits reward you
with excning distortion-free audio power
Two highly sensitive 4-pole (MOS) Field
Effect Transistors, a Linearly Variable 4.
gang FlVl capacitor, and a costly Monor
lithic IC in the specrally built MPX circuit
\.\llll gratify your growing need for selecr
lefy in today's crowded FM world
Wider frequency response, higher damping
factor with lower distortion and noise
level, and superb, clear output signal all
add up to incomparable stereo enjoyment
The skillfully designed station targeting
system. bolstered by highly sensitive tunA
ing Circuitry. makes the SA-SBOO the most
advanced stereo receiver available today
The wellrhred Cltlld of a closeknit family
of electronics wizards, this sensitive in
strument effortlessly meets your highest
standards

HERE ARE THE FEATURES THAT MAKE

Powerful 100w Music Power:

Lend an Ear 81 Listen with Carel

No sound has ever been so pure and so powerful as that of the
SA»5800. These 100 watts of output power are more than sufficient
to engulf your whole house in a sea of crystal»pure sound.
Whether you want to lose yourself in the driving rhythms of Jazz
or the New Rock, or slide into that warm, classical world. let the
SA-5800 be your Magic Carpet. Its vibrant power Will set a crowd
swinging to the throbbing beat, or gently soothe- the meditative
individual.

'DISTOR'IION mm continuous."

t3).

. a
l («)7

Reliable, Stable Amplification:

Apart from the unique DirectvCoupled circuitry. this receiver also
features newly developed differential amplifier circuits. No matter
how weak the input signal, the amplifier section wrll magnify it
faithfully, in no way impairing its tonal colors, Furthermore. it
assures you of rockrstable performance with clean, linear response
to all audible frequencies

SPEAKER SELECTOWS TUNlNGn1
'POWER ON OFF l
TUNlNG METER PROGRAM SELECTOR SWITCH}

[BASS CONTROLS RIGHT & LEFT
{STEREO INDICATOR
l TREBLE CONTROLS RIGHT 8. LEFT\

l
l PROGRAM INDICATOR

LUUDNESS CONTROL

HIGH FiLTEn J l
. [ TAPE MONITORS

BALANCE CONTROL MODE SELECTOR

VOLUME CONTROL MUTING ONVOFF
