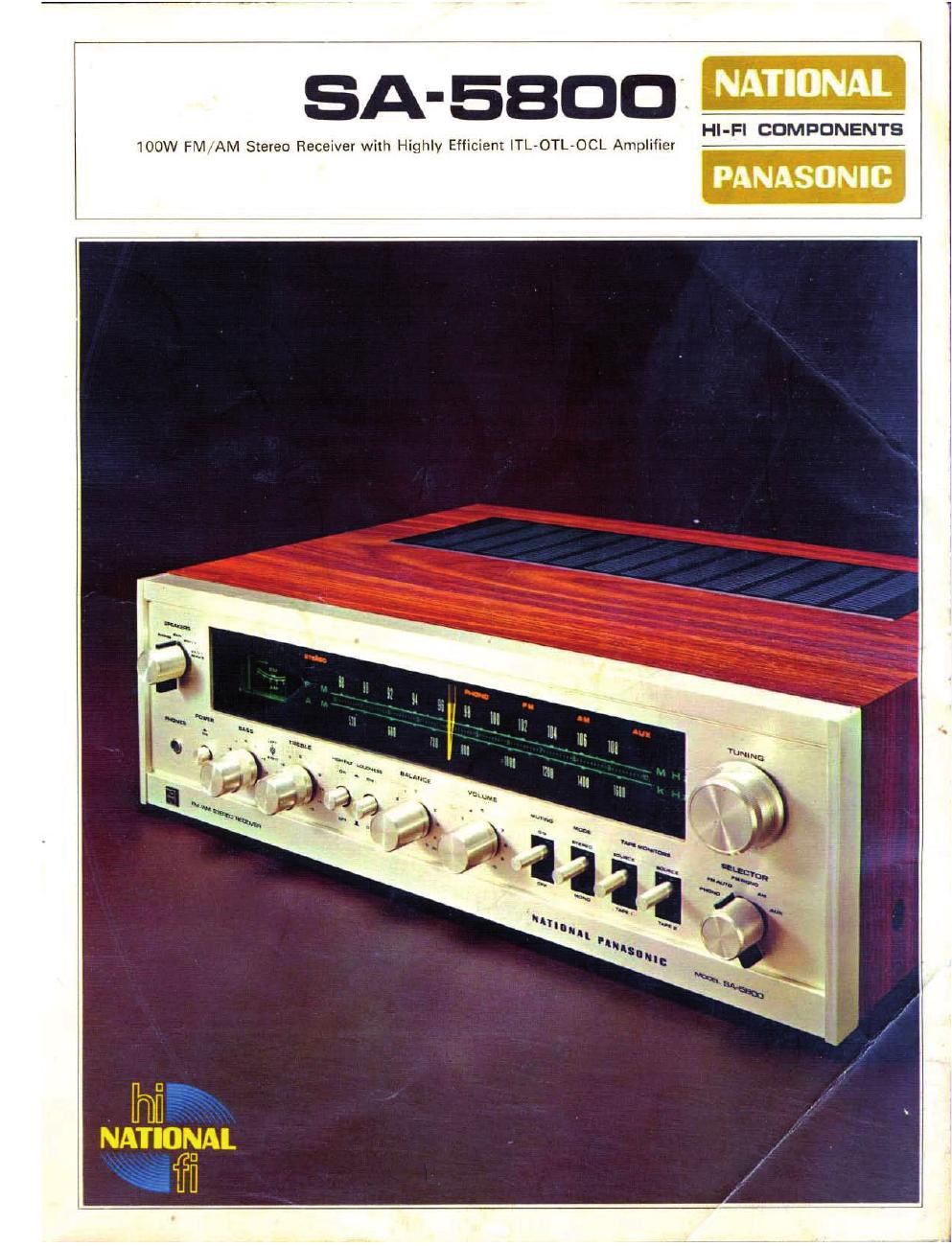

Panasonic sa 5800 brochure

Page 1

SA-EBDD _~_:"'°~ .M

Hl-Fl COMPONENTS

PANASONIC

100W FM AM Stereo Receiver with Highly Efficient ITL-OTLAOCL Amplifier

Page 2

Get an
Earlul of
Pure Sound!

FROM A HIGHLY
SENSITIVE FM ,i/AM
STEREO RECEIVER
HOUSING POWERFUL
DIRECT-COUPLED
ITL-OTL-OCL
AMPLIFIER

8: 2-FETS, 1-IC
STEREO TUNER

Designed to faithfully entertain your ears...
you, the discriminating audiophile. This
new FM/AM Stereo Receiver highlights
all of the exclusive National Panasonic
Features; Direct-Coupled |TL>OTL-OCL
amplification circuitry and newly develop-
ed Differential amplifier circuits reward you
with exciting distortion-free audio power
Two highly sensitive 4-pole (MOS) Field
Effect Transistors. a Linearly Variable 4-
gang FM capacitor, and a costly Mono-
lithic lC in the specially built MPX circutt
will gratify your growing need for selec-
tivity in today's crowded FM world.
Wider frequency response, higher damping
factor with lower distortion and noise
level, and superb, clear output signal all
add up to incomparable stereo enjoyment
The skillfully designed station targeting
system, bolstered by highly sensitive tun»
ing circuitry, makes the SA-5800 the most
advanced stereo receiver available today
The well-bred child of a close-knit family
of electronics wizards. this sensitive in-
strument effortlessly meets your highest
standards.

HERE ARE THE' FEATURES THAT MAKE

Powerful 100w Music Power:

Lend an Ear 8: Listen with Carol

No sound has ever been so pure and so powerful as that of the
SA~5800. These 100 watts of output power are more than sullicient
to engulf your whole house in a sea of crystal-pure sound.
Whether you want to lose yourself in the driving rhythms of Jazz
or the New Rock. or slide into that warm. classical world, let the
SA-5800 be your Magic Carpet. Its vibrant power will set a crowd
swinging to the throbbing beat, or gently soothe. the meditative
individual.

Reliable, Stable Amplification:

Apart Irom the unique DirectCoupled circuitry. this receiver also
features newly developed differential amplifier circuits, No matter
how weak the input signal, the amplifier section will magnify it
faithfully. in no way impairing its tonal colors. Furthermore. it
assures you (ll rockvstable performance with clean. linear response
to all audible frequencies.

SPEAKER SELECTORS TUNING
POWER ON-OFF
TUNING METER PROGRAM SELECTOR SWlTCH
BASS CONTROLS LRIGHT & lEFTJ
TEREO INDICATOR

TREBLE CONTROLS IRIGHY & LEFT)

PROGRAM INDICATOR

HIGH FILTER

TAPE MONITORS
MODE SELECTOR
MINING ON»OFF

LOUDNESS CONTROL
BALANCE CONTROL
VOLUME CONTROL

4

riLAwr-iinis
