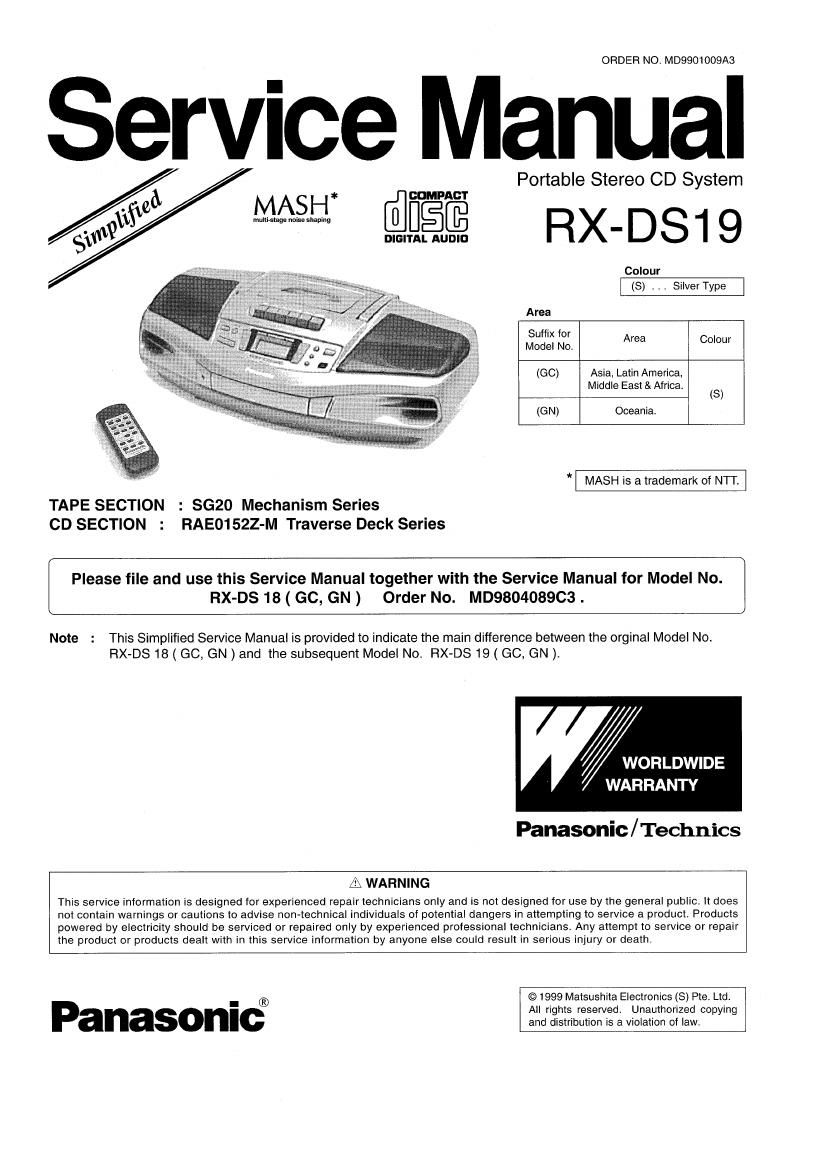

ORDER NO. MD9901009A3

Service Manual

Portable Stereo CD System

MMMM QEM'IZM RX-DSi 9

Colour
(8) . . I Silver Type

Area
Suffix for
A

Model No. (ea 60'0

(GO) Asia, Latin America,

Middle East & Africa.
(S)
(GN) Oceania.

* MASH is a trademark of NTI'.

TAPE SECTION : SGZO Mechanism Series
CD SECTION : RAE01522-M Traverse Deck Series

Please file and use this Service Manual together with the Service Manual for Model No.
RX-DS 18 ( (30, GN ) Order No. M0980408903 .

Note : This Simplified Service Manual is provided to indicate the main difference between the orginal Model No.
FtX-DS 18 ( GC, GN ) and the subsequent Model No. RX-DS 19 ( GC, GN ).

%OHLDWIDE
WARRANTY

Panasonic / Technics

A WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death,
