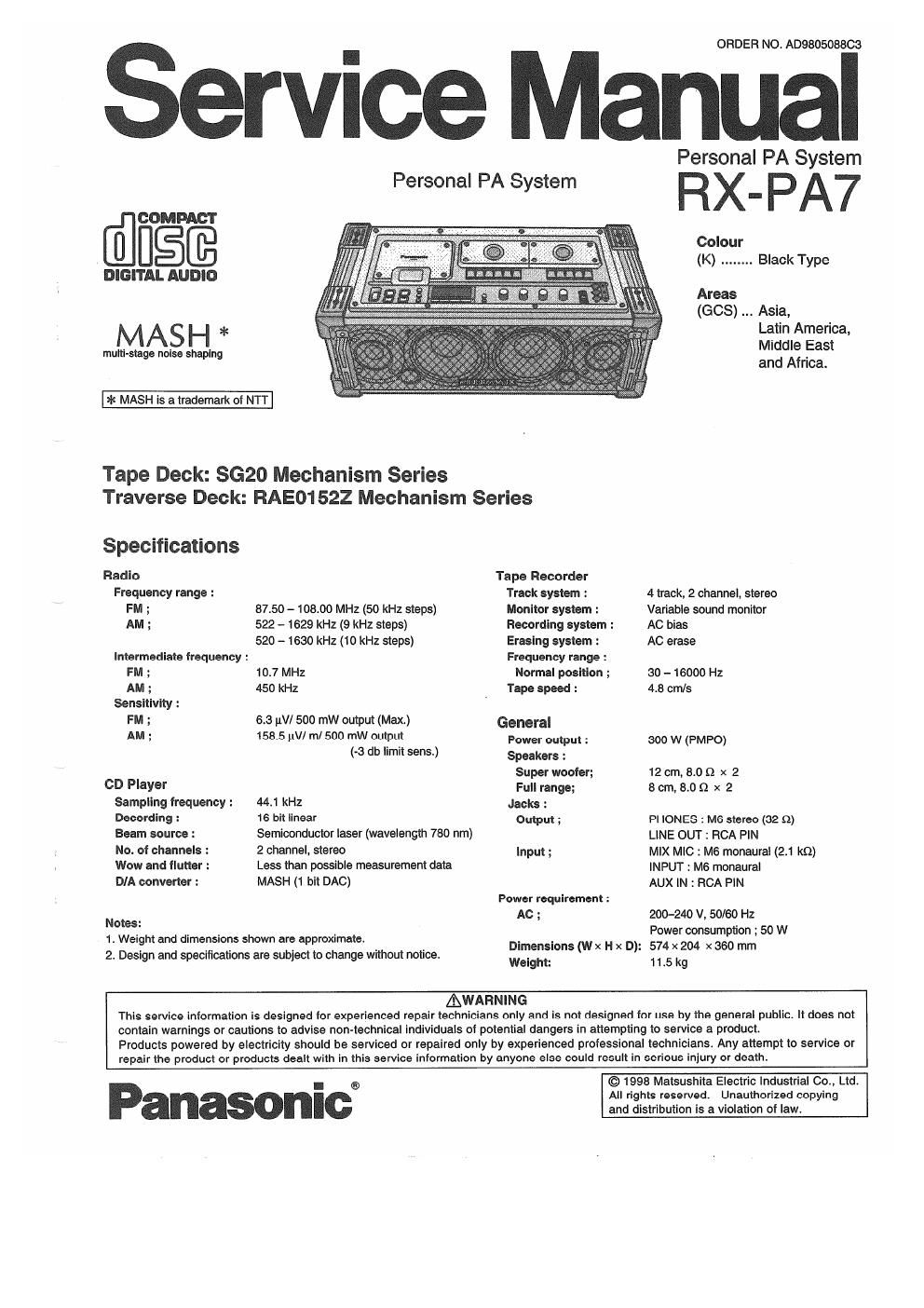

Page 1

ORDER NO, AD9805088C3

Service Manual

Personal PA System

RX- PA7

Personal PA System

DIGITAL AUDIO

MASH *

mum-stage noise shaping

=1: MASH is a trademark of NTT

Tape Deck: SGZO Mechanism Series
Traverse Deck: RAE01522 Mechanism Series

Specifications

Radio
Frequency range :
FM ;
AM ;

Intermediate frequency :

FM ;

AM ;
Sensitivity:

FM ;

AM :

CD Player
Sampling frequency :
Deoording :
Beam source :
No. of channels :
Wow and flutter :
DIA converter :

Notes:

3750 - 108.00 MHz (50 kHz steps)
522 - 1629 kHz (9 kHz steps)
520 - 1630 kHz (10 kHz steps)

10.7 MHZ
450 kHz
68 pV/ 500 mW output (Max)
158.5 pV/ ml 500 mW output

(-3 db limit sens.)
44.1 kHz
16 bit linear

Semiconductor laser (wavelength 780 nm)
2 channel, stereo

Less than possible measurement data
MASH (1 bit DAG)

Tape Recorder
Track system :
Monitor system :
Recording system :
Erasing system :
Frequency range :

Normal position ;
Tape speed :

General
Power output :
Speakers :
Super woofer;
Full range;
Jacks :
Output ;

input ;

Power requirement:
AC ;

Colour
(K) ........ Black Type

Areas

(GCS) Asia,
Latin America,
Middle East
and Africa.

4 track, 2 channel, stereo
Variable sound monitor
AC bias

AC erase

30 - 16000 Hz
4.8 cm/s

300 w (PMPO)

12cm,8.00 x 2
ch.8.0£2 x 2

PHONES : MG stereo (32 9)
LINE OUT: RCA PIN

MIX MIC : M6 monaural (2.1 km
INPUT : M6 rnonaural

AUX IN : RCA PIN

200-240 V, 50/60 HZ
Power consumption ; 50 W

1. Weight and dimensions shown are approximate.

' n H : 574 204 x 360 mm
2. Design and specifications are subject to change without notice. Dlmensio s (W x x D) x

Weight: 11.5 kg

AWARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers In attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service Information by anyone else could result in serious injury or death.

Panasonic®

© 1998 Matsushlta Electric Industrial 00., Ltd.
All rights reserved. Unauthorized copying
and distribution Is a violation of law,

Page 2

RX-PA7 I I

I Contents

Accessories
Precaution of aser
Handling Precautions for Traverse Deck
Troubleshooting Guide ............
Location of Controls .
Listening to CDs

Before Recording (Only Deck 1)
Recording from CDs (Only Deck 1)
Recording Tape to Tape ............

Recording Radio Programs (Only Deck 1) ,
Using the Sleep Timer
Using a Microphone .
Using a Bass Guiter .
Using an Electric Guiter or Keyboard
Using an External Unit .
Using Headphones
Mixing ................

l Accessories

0 Ac power cord. ............. . .......... 1 pct

Self-Diagnostic Function .....

Operation Checks and

Main Component Replacement Procedures
Schematic Diagram
Printed Circuit Board Diagram
Type Illustration 0! ICs, Transistors and Diodes
Wiring Connection Diagram
Terminal Function of lC's
Measurements and Adjustments
Troubleshooting Guide for CD
Block Diagram
Replacement Parts List
Cabinet Parts Location .
Mechanism Parts Location
Packaging .....................

CAUTION:
THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

I Precaution of Laser Diode

CAUTION:
Wave length: 780 nm

Maximum output radiation power from pick up: 100 uW/VDE

Laser radiation from the pick up unit is safety level, but be sure the followings:

1 Do not disassemble the pick up unit, since radiation from exposed laser diode is dangerous,
2. Do not adjust the variable resistor on the pick up unit It was already adjusted.

3. Do not lock at the locus lens using optical Instruments
4. Recommend not to lock at pick up lens for a long time.

CLASS 1
LASER PRODUCT

DANGER

ilWISIBLE LASER RADIATION WIIEII (Will AND INTERIDDK DEFEATED
AVOID DIRECT EXPOSURE TO BEAM

ADVARSEL

USVIiLIGLISERSTIiIILINGi/Elliililillis,MRSIKKERNEDSAFBRVDERE
m UDE murmur Hum UDS/ti'lElSE FOR smluria

VAHOI

AVAITAESSAIASUNALUKIIUS DHH'EFIIIESSAOLEIALTTIWA
MIKMTDMA USERSAIEILVLIE ALA msnsmtsrew

VARNING

OSVIILIG Lisasmimms "in DEliIiA DEL in DPPIiADOCII
SPARREIIAR IiRK/JPPLAD. BEIRAKIA El STAMP

ADVARSEL

USVIILIG LISERSTRAUIIG IIIIII DEKSEL AFNES DG SIKKERHEDSLAS
DENIES, UIIIIBA EKSPDIIERIIIG FDR SIMIEN

VORSICHT

UIISIEIITDIII'IE LASERSTRMIIUIIG, _WEII|I AIiDicKIIIiG EEDFFIIET
IIIID SICHEI'IIIEI'IS'VERRIEGELDM UDEIIIIRUDKI
NIGHT DEM STEAM NJSSETZEII

This product utilizes a laser diode with the unit turned on, invisible laser radiation is emitted from the pick up lensi

(Inside oi product)
(lndersiden at apparatet)
(T uotteen sisalla}
(Apparalens insida)

(Produklets innside)

(Im Inneren des Gerétes)
