panasonic rx m 40 service manual

Extracted text from panasonic rx m 40 service manual (Ocr-read)

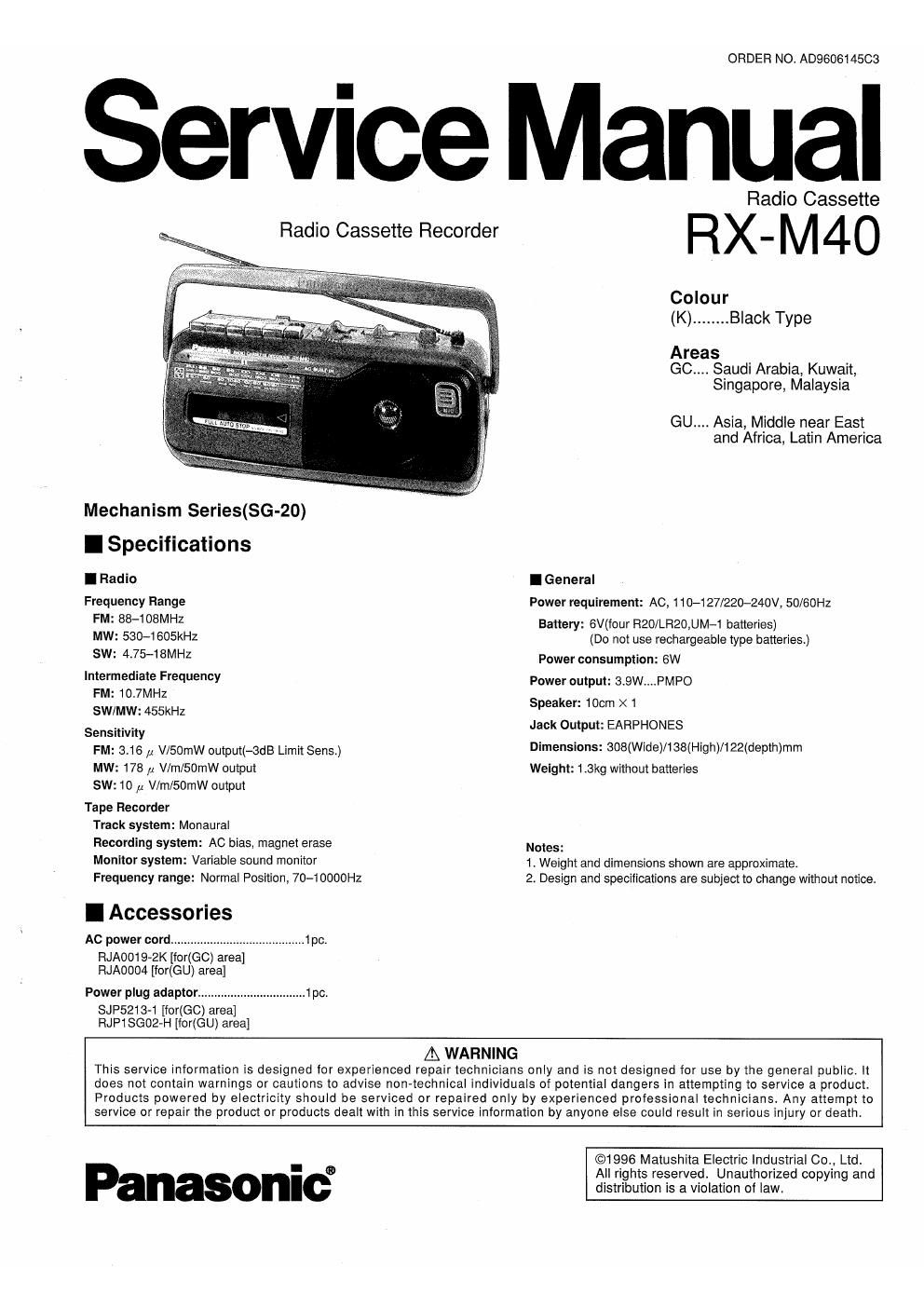

Page 1

ORDER NO. AD960614503

ervice Manual

Mechanism Series(SG-20)
I Specifications

I Radio

Frequency Range
FM: 88-108MHZ
MW: 530-1605kHz
SW: 4.75-18MHz

intermediate Frequency
FM: 10.7MHZ
SW/MW: 455kHz
Sensitivity
FM: 3.16 ,1 V/50mW output(-3C|B Limit Sens.)
MW: 178 # V/m/50mW output
SW: 10 p V/m/50mW output

Tape Recorder
Track system: Monaural
Recording system: Ac bias, magnet erase
Monitor system: Variable sound monitor
Frequency range: Normal Position, 70-10000Hz

I Accessories

AC power cord ......................................... 1 pc.
RJA0019-2K [toriGC) area]
RJA0004 {for(GU) area]

Power plug adaptor ................................. 1 pc.

SJP5213<1 BONGO) area]
RJP1SGOZ-H [for(GU) area]

Radio Cassette Recorder

RXMZS

Colour
(K) ........ Black Type

Areas
(50.... Saudi Arabia, Kuwait,
Singapore, Malaysia

GU.... Asia, Middle near East
and Africa, Latin America

I General
Power requirement: AC, 1 10-127/220-240V, 50/60HZ

Battery: 6V(tour R20/LR20,UM-1 batteries)
(Do not use rechargeable type batteries)

Power consumption: 6W
Power output: 3.9W....PMPO
Speaker: 10cm X 1
Jack Output: EARPHONES
Dimensions: 308(Wide)/138(High)/122(olepth)mm
Weight: 1.3kg without batteries

Notes:
1. Weight and dimensions shown are approximate.
2. Design and specifications are subject to change without notice.

A WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. it
does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

Panasonic

©1996 Matushita Electric Industrial Co., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
