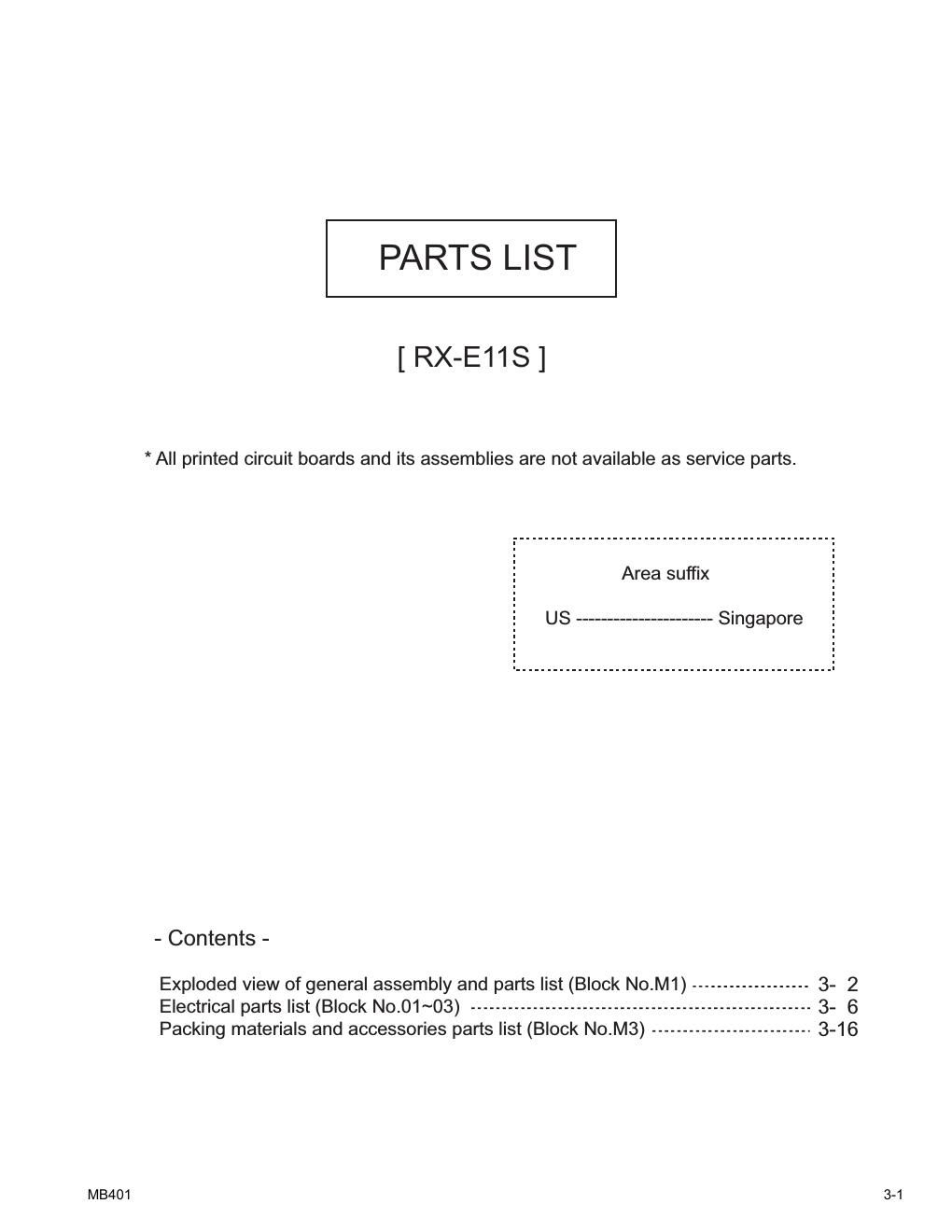

PARTS LIST

[RX-E118]

*All printed circuit boards and its assemblies are not available as service parts.

Area suffix
US ---------------------- Singapore
- Contents -
Exploded view of general assembly and parts list (Block No_M1) ................... 3- 2
Electrical parts list (Block No.01~03) --------------------------------------------
Packing materials and accessories parts list (Block No.M3) .......................... 3-16

MB401 3-1
