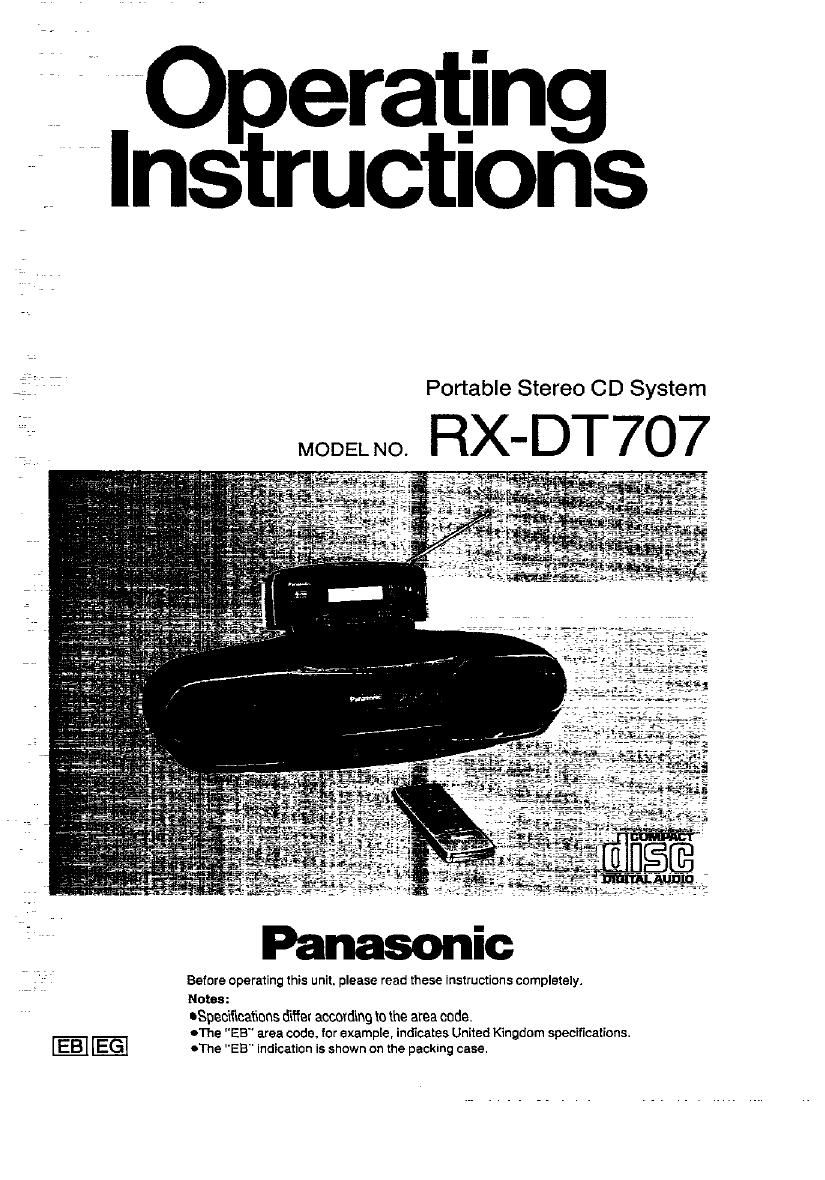

Page 1

eratjng
* ructlons

Portable Stereo CD System

MODEL NO. RX' DT 707

Panason'c
Before operating this unit. please read these instructions compieieiy.
Notes:
OSpeciiicaiions differ according to the area code,

OThe "EB" area code. for example, incficates United Kingdom specifications.
OThe "EB" indication is shown on the packing case.

Page 2

|l\)

Thank you for purchasing this unit. Foroptimum performance, follow these

operating instructions carefully.

(EB" area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains
plug lor your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of S-ampere and that rt is
approved by ASTA or BS! to 381362.

Check tor the ASTA mark ® or the BSI mark W on the
body of the fuse.

if the plug contains a removable fuse cover you must ensure
that it is refitted when the fuse is replaced.

if you lose the fuse cover the plug must not be used until a
replacement cover is Obtained.

A replacement fuse cover can be purchased from your local
dealer.

CAUTIONl

IF THE FITTED MOULDED PLUG as UNSUITABLE
FOR THE SOCKET OUTLET IN voun HOME THEN
THE FUSE SHOULD BE REMOVED AND THE
PLUG CUT OFF AND DISPOSED 0F sgrfELv. _ _
THERE IS A DANGER OF sevens ELECTRICAL
SHOCK lF THE CUT OFF PLUG lS lNSEFtTED
INTO ANV13-AMPERE SOCKET.

If a new plug Is to be fitted please observe the wiring code as
shown below.

It in any doubt please consult a qualified electrician.

IMPORTANT
The wires in this mains lead are coloured In accordance with
the following code:

Blue. Neutral

Brown: Live
As the colours of the wires in the mains lead of lhis
appliance may not correspond with the coloured markings
identifying the tarminals in your plug, proceed as follows:
The wire which is coloured BLUE must be connected to the
terminal in the plug which is marked with the letter N or
coloured BLACK.

Qautlon for Ac malnsleiad (For United 0793ng ,, >

The wire which is coloured BROWN must be connect
the terminal in the plug which is marked with the letter L L.
coloured RED

Under no circumstances should either of these wires
connected to the earth terminal of the three pin. plug mark:-
withtheletlerEortheEarthSymbol 47-.

Before nu
Remove the normedor cover as lolfows

How to mph-cc the tuna
1. Retrieve the fuse cover with a screwdriver
